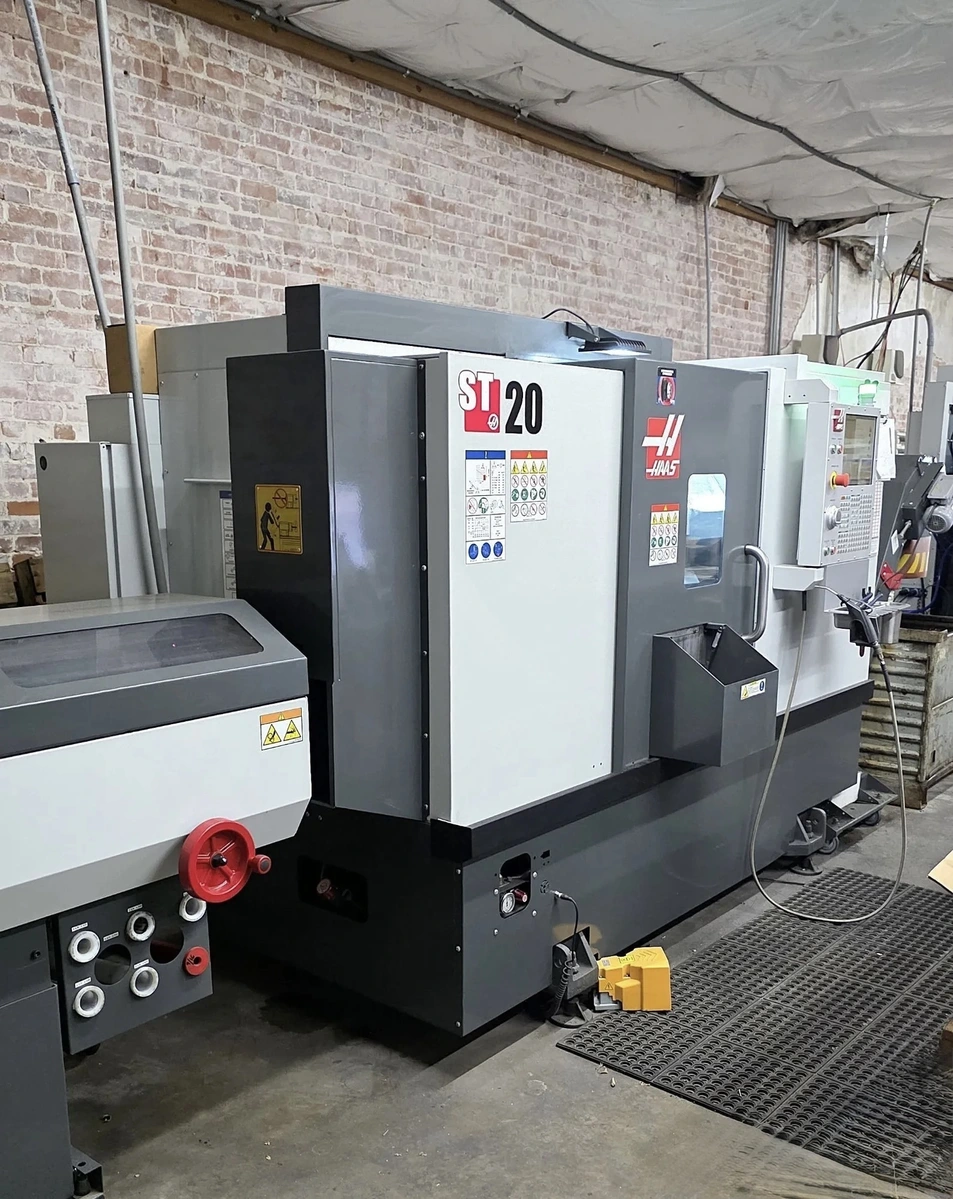

2023 HAAS ST-20 CNC Lathe with Barfeeder | Stock #4640
Have one to sell?
ConditionUsed
1 available

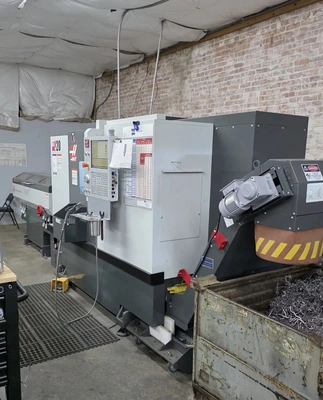

Excellent opportunity to purchase a late-model 2023 Haas ST-20 CNC Turning Center equipped with a Haas Automatic Bar Feeder for increased productivity and automated bar stock machining.
The Haas ST-20 is a high-performance CNC lathe designed to deliver precision, reliability, and efficiency in a wide range of turning applications. Its rigid construction, powerful spindle, and user-friendly Haas CNC control make it an excellent choice for both job shops and production manufacturing environments.
Equipped with a Haas Automatic Bar Feeder, this machine offers the added advantage of continuous bar stock feeding, reducing operator intervention, minimizing downtime, and maximizing spindle utilization. This combination is ideal for manufacturers looking to streamline production, reduce labor costs, and improve overall machining efficiency.
MAX SWING 806.45 mm
MAX CUTTING DIAMETER 381 mm
MAX CUTTING LENGTH 520.7 mm
CHUCK SIZE 210.82 mm
BAR CAPACITY 50.8 mm
SPINDLE MOTOR 14.9 kW
SPINDLE SPEED 4,000 RPM
TURRET POSITIONS 12
TURRET TYPE BOLT-ON

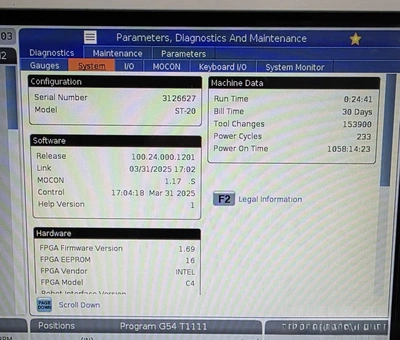

HAAS CNC CONTROL

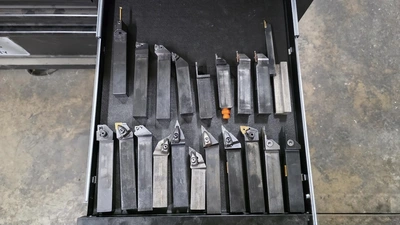

LARGE AMOUNT OF COLLETS AND TOOLING

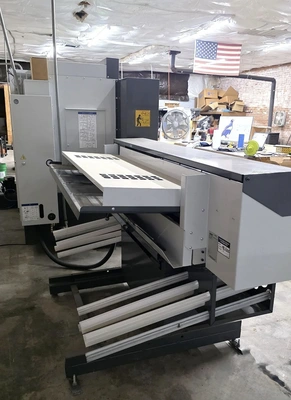

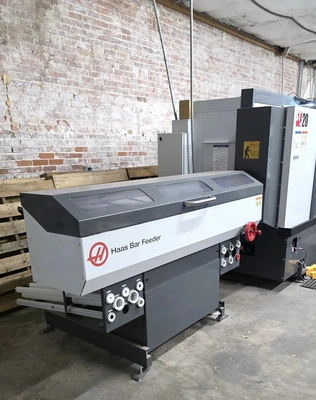

HAAS BAR FEEDER

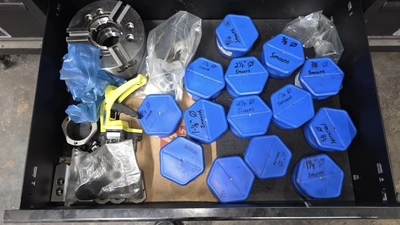

SAMCHULLY 8" 3-JAW HYDRAULIC CHUCK (IN DRAWER)

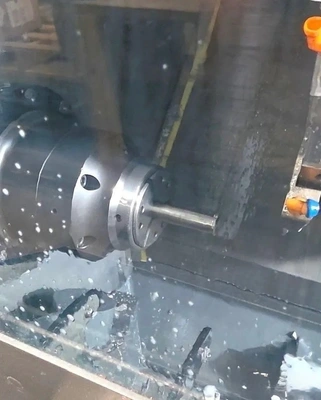

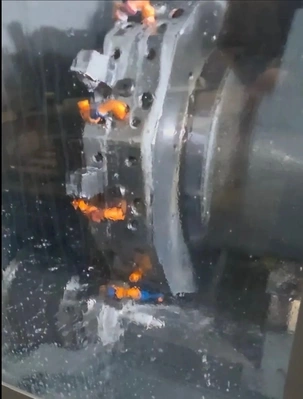

ROYAL COLLET CHUCK (INSTALLED)
HENNIG CHIP CONVEYOR
TOOL PRESETTER
PARTS CATCHER
COOLANT TANK
USB PORT

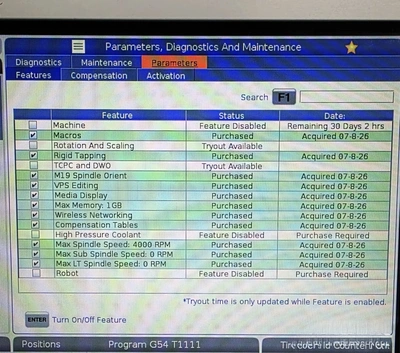

MACROS
1GB MEMORY
M19 SPINDLE ORIENT
QUICK CODE
RIGID TAPPING
SPINDLE LOAD MONITOR
*** COMPANY CLOSING BUSINESS. ALL TOOL HOLDERS, COLLETS, ETC THAT ARE USED BY THIS MACHINE -- INCLUDED IN SALE.
MACHINE COMING OUT OF OWNER/OPERATOR, PARTIAL SHIFT ENVIRONMENT
THIS IS A CHUCKER STYLE LATHE. MACHINE IS NOT EQUIPPED WITH TAILSTOCK. BUT THE ADDITION OF THE BARFEED AND PARTS CATCHER CREATE A 2-AXIS PRODUCTION ENVIRONMENT READY FOR LIGHTS-OUT RUNS.
REPLACEMENT COST FOR ABOVE EQUIPPED LATHE SYSTEM IF PURCHASED NEW TODAY: $121,000
** MACHINE IS IN OWNER/OPERATOR SINGLE SHIFT SHOP. AVAILABLE IMMEDIATELY
---- IN SAME SHOP: 2019 HAAS VF2 W/4TH AXIS, TSC AND WIPS
