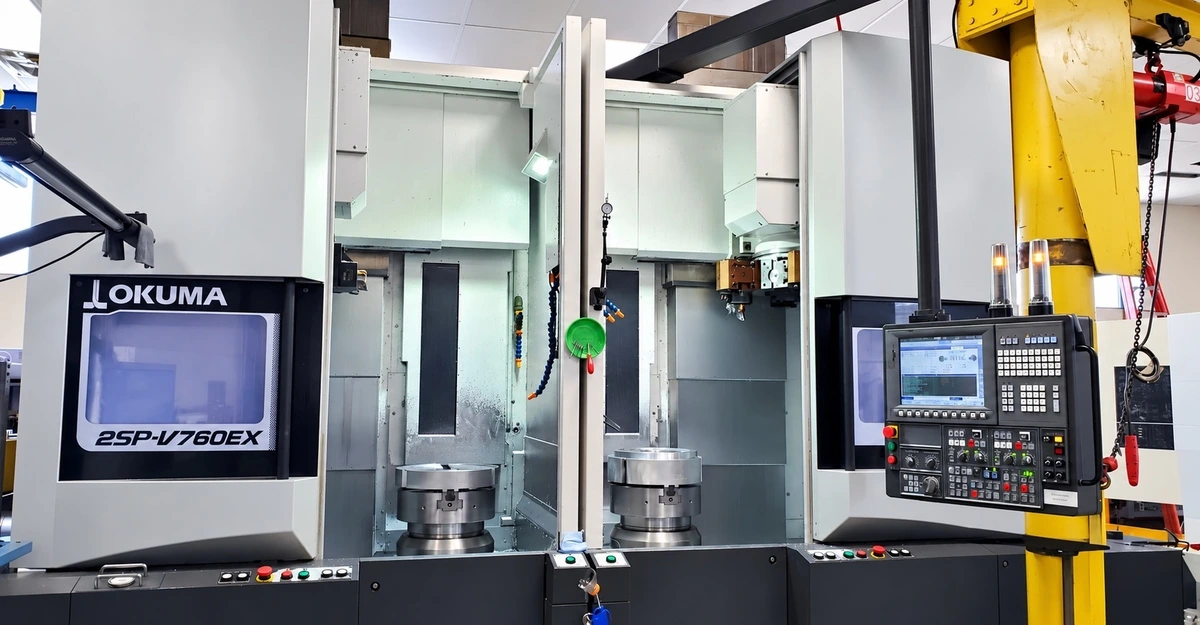

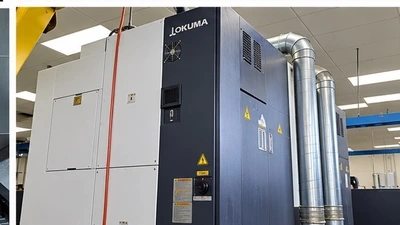

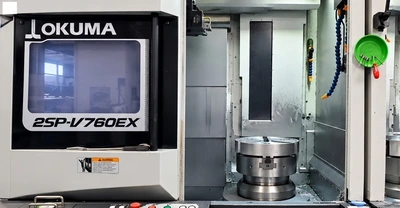

2021 OKUMA 2SP-V760EX CNC Twin-Spindle Vertical Turning Center | Stock #4639
Have one to sell?
ConditionUsed
1 available
Excellent opportunity to purchase a late-model 2021 Okuma 2SP-V760EX CNC Twin-Spindle Vertical Turning Center equipped with live milling capabilities and dual 18" chucks.
Built for high-production machining, the Okuma 2SP-V760EX features a powerful twin-spindle vertical turning configuration designed to maximize productivity, reduce cycle times, and improve machining efficiency.
The dual-spindle design allows for simultaneous machining operations, making this machine particularly well-suited for high-volume production environments. Its live milling capabilities provide additional versatility, allowing turning and milling operations to be performed in a single setup, reducing secondary operations and improving overall part accuracy.
MAX SWING 800.1 mm
MAX CUTTING DIAMETER 759.97 mm
MAX CUTTING LENGTH 769.87 mm
CHUCK SIZE 457.2 mm
MAX WEIGHT ON TABLE 499 kg
X-AXIS TRAVEL 389.89 mm
Z-AXIS TRAVEL 769.87 mm
SPINDLE SPEED 2,000 RPM
SPINDLE MOTOR 29.8 kW
LIVE TOOLING SPEED 4,000 RPM
LIVE TOOLING MOTOR 7.5 kW
TURRET POSITIONS 12
TWIN-SPINDLE VERTICAL LATHE

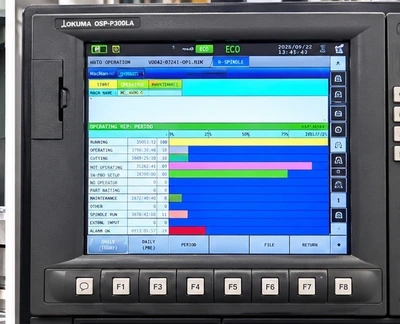

OKUMA OSP-P300LA CONTROL
(2) 40HP, A2-11, 2,000 RPM SPINDLES

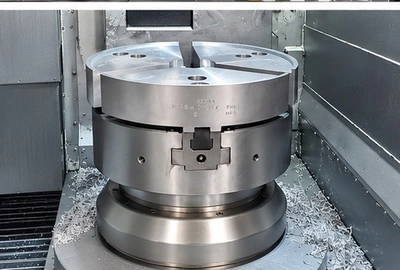

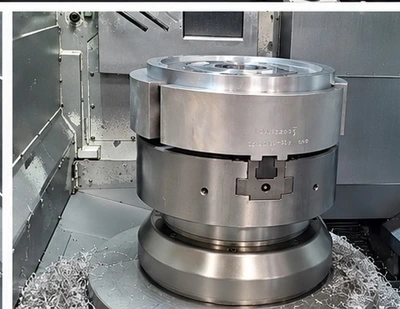

(2) 18”, 3-JAW, CLOSED CENTER HYDRAULIC CHUCKS
(2) 12-STATION TURRETS
LIVE MILLING (BOTH TURRETS)
TOUCH SETTER (BOTH SPINDLES)
REAR DISCHARGE CHIP CONVEYOR
(2) 300 PSI COOLANT PUMPS (MP SYSTEMS)
PREPPED FOR HIGH-PRESSURE COOLANT (1,000 PSI)
THERMAL COMPENSATION
ADVANCED ONE-TOUCH IGF
HELICAL CUTTING (FOR X/Z/C AXES)
NEGATIVE TOOL RADIUS COMPENSATION
(4) AXIAL LIVE TOOL HOLDERS
(4) RADIAL LIVE TOOL HOLDERS
AN ASSORTMENT OF STATIC TOOL HOLDERS
** AS OF SEPTEMBER 2026, CUTTING TIME – 3,689 HOURS
** MACHINE CUT PRIMARILY ALUMINUM
** OSP DATA CARD AVAILABLE UPON REQUEST
** FULL REPLACEMENT COST, AS EQUIPPED - $700,000
** IN PLANT, UNDER POWE, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** MACHINE IS AVAILABLE TO BE REMOVED AT THE END OF NOVEMBER/EARLY DECEMBER – UPON ARRIVAL OF NEW MACHINE
