2003 Haas VF-7 / 40 Vertical Machining Center | Stock #4629
Have one to sell?
ConditionUsed
1 available

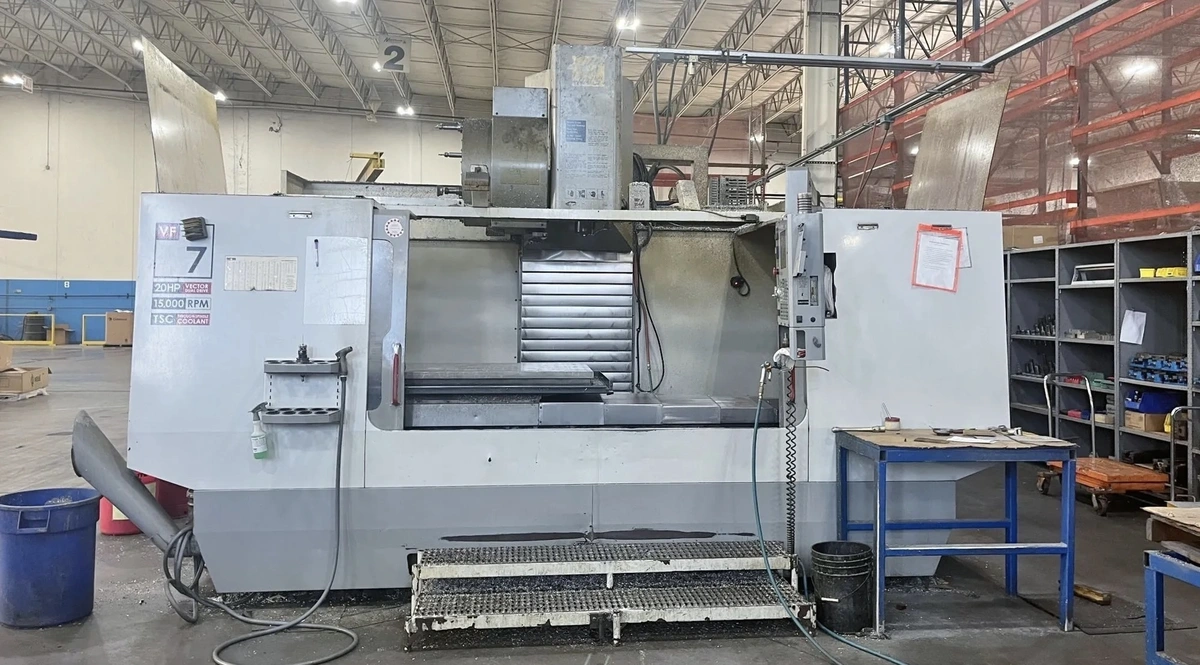

This 2003 Haas VF-7/40 CNC Vertical Machining Center offers impressive machining capacity, high-speed spindle performance, and a generous work envelope, making it an excellent choice for manufacturers machining large aluminum components, extrusions, plates, and precision parts.
Featuring 84" X-axis travel, 32" Y-axis travel, and 30" Z-axis travel, this machine provides the flexibility needed for larger workpieces and demanding machining applications. The 15,000 RPM CAT 40 spindle, combined with a 24-station side-mount automatic tool changer, delivers versatility for high-speed milling and efficient production.
This VF-7/40 is well-equipped with a spindle probe, programmable coolant, auxiliary coolant filtration, chip auger, rigid tapping, macros, coordinate rotation and scaling, and through-spindle coolant readiness.
Previously used primarily for machining aluminum extrusions, this machine offers an economical opportunity to add large-capacity CNC machining capabilities without the investment of new equipment.
TABLE LENGTH 84"
TABLE WIDTH 28"
X-AXIS TRAVEL 84"
Y-AXIS TRAVEL 32"
Z-AXIS TRAVEL 30"
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR 20 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 24
15,000 RPM SPINDLE (CAT40)
THROUGH-SPINDLE COOLANT READY
SPINDLE PROBE & RECEIVER (NO TOOL SETTER)
SIDE-MOUNT TOOL CHANGER (24 ATC)
AUXILIARY COOLANT FILTRATION SYSTEM
PROGRAMMABLE COOLANT
CHIP AUGER
COORDINATE ROTATION & SCALING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
INTERNAL HIGH-VOLTAGE ISOLATED TRANSFORMER (MACHINE SET-UP TO RUN ON 360-480V)
** MACHINE CUT PRIMARILY ALUMINUM EXTRUSIONS
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

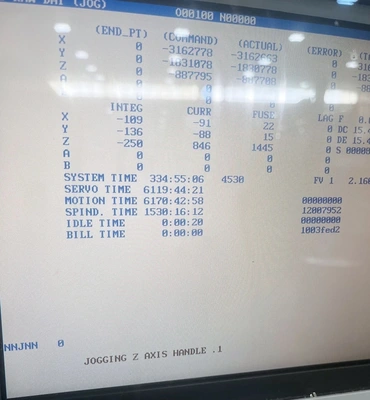

** HOURS SCREEN HAS BEEN RESET, OVER TIME (PLEASE SEE PHOTOS). MACHINE AVERAGED 1 SHIFT/DAY
This 2003 Haas VF-7/40 CNC Vertical Machining Center offers impressive machining capacity, high-speed spindle performance, and a generous work envelope, making it an excellent choice for manufacturers machining large aluminum components, extrusions, plates, and precision parts.
Featuring 84" X-axis travel, 32" Y-axis travel, and 30" Z-axis travel, this machine provides the flexibility needed for larger workpieces and demanding machining applications. The 15,000 RPM CAT 40 spindle, combined with a 24-station side-mount automatic tool changer, delivers versatility for high-speed milling and efficient production.
This VF-7/40 is well-equipped with a spindle probe, programmable coolant, auxiliary coolant filtration, chip auger, rigid tapping, macros, coordinate rotation and scaling, and through-spindle coolant readiness.
Previously used primarily for machining aluminum extrusions, this machine offers an economical opportunity to add large-capacity CNC machining capabilities without the investment of new equipment.
TABLE LENGTH 84"
TABLE WIDTH 28"
X-AXIS TRAVEL 84"
Y-AXIS TRAVEL 32"
Z-AXIS TRAVEL 30"
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR 20 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 24
15,000 RPM SPINDLE (CAT40)
THROUGH-SPINDLE COOLANT READY
SPINDLE PROBE & RECEIVER (NO TOOL SETTER)
SIDE-MOUNT TOOL CHANGER (24 ATC)
AUXILIARY COOLANT FILTRATION SYSTEM
PROGRAMMABLE COOLANT
CHIP AUGER
COORDINATE ROTATION & SCALING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
INTERNAL HIGH-VOLTAGE ISOLATED TRANSFORMER (MACHINE SET-UP TO RUN ON 360-480V)
** MACHINE CUT PRIMARILY ALUMINUM EXTRUSIONS
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** HOURS SCREEN HAS BEEN RESET, OVER TIME (PLEASE SEE PHOTOS). MACHINE AVERAGED 1 SHIFT/DAY
