GMC Machine Tools EPS-0610M (6' 10-gauge) Mechanical Squaring Shear | Stock #4627
Have one to sell?
ConditionUsed
1 available

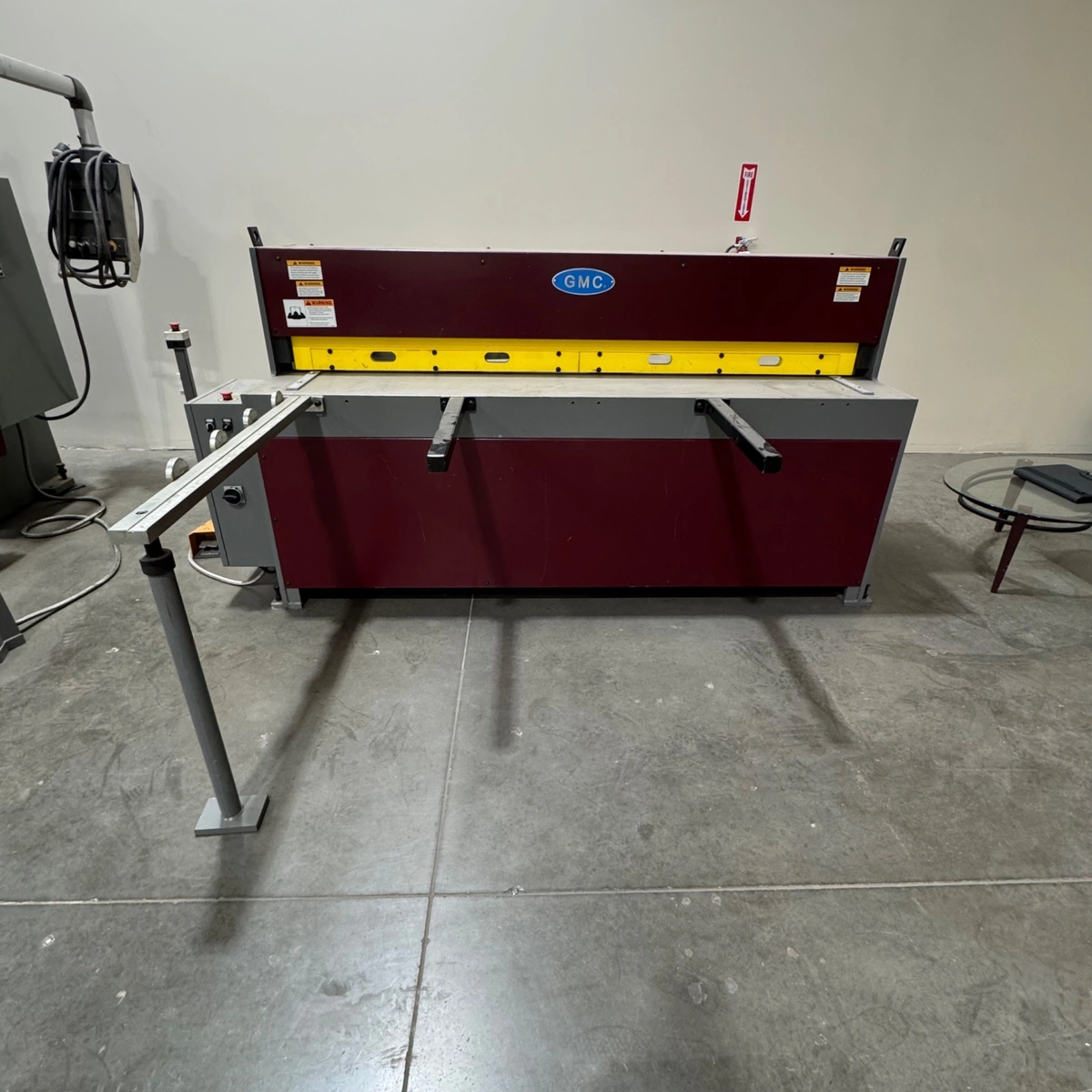

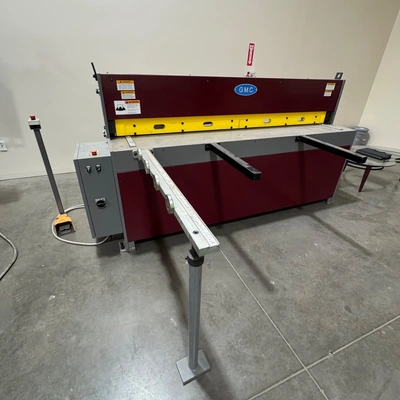

GMC EPS-0610M 6' x 10 Ga. Mechanical Power Squaring Shear
Excellent-condition GMC EPS-0610M mechanical power squaring shear with very little use. Built for fast, accurate sheet metal cutting with a 6' cutting capacity and 10-gauge mild steel capacity. Equipped with a power backgauge, squaring arm, material hold-downs, and foot pedal operation. Clean, lightly used machine ready to go to work.
Cutting Capacity
Mild Steel - HRS (tensile 60,000 PSI): 6' x 10Ga.
Stainless Steel (tensile 85,000 PSI): 6' x 14Ga.
Soft Aluminum (tensile 28,000 PSI): 6' x 1/4"
min. thickness: 22Ga
Blade Lenght 80"
Strokes per minute 28
Worktable height 32"
Front support arm 36"
Back gauge: 26" Manual Back gauge
Blade Rake Angle: 2.5 Degree

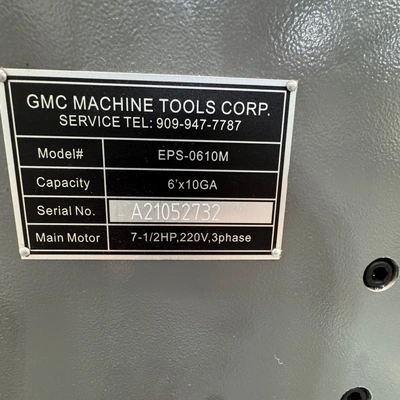

Main Motor: 7-1/2HP, 3 Phase 25A
Prewired: 220VAC: (15A/440VAC optional)
Shipping weight: 5,550 lbs.
Shipping dimensions: 100" x 43" x 68"

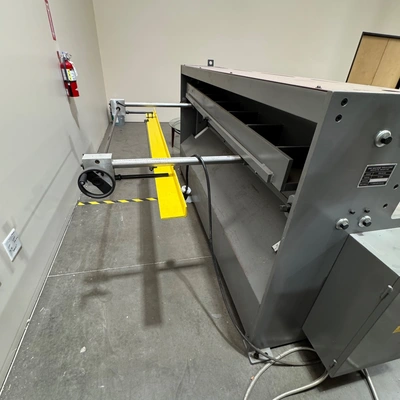

26” manual back gauge with one side handwheel
60” long squaring arm with inch / mm scale, mounted on right side of the table
full length finger guard
Removable safety foot pedal control
GMC EPS-0610M 6' x 10 Ga. Mechanical Power Squaring Shear
Excellent-condition GMC EPS-0610M mechanical power squaring shear with very little use. Built for fast, accurate sheet metal cutting with a 6' cutting capacity and 10-gauge mild steel capacity. Equipped with a power backgauge, squaring arm, material hold-downs, and foot pedal operation. Clean, lightly used machine ready to go to work.
Imperial
| Max Thickness | 0.1345" |
| Length of Blade | 78" |
| Hyd/Mech | 'Mech' |
| Back Gauge | 26" |
| Power | 7.5 hp |
| SPM | 28 strokes/min. |
| Dimensions | 100 x 43 x 68 |
| Weight | 5650 |
Cutting Capacity
Mild Steel - HRS (tensile 60,000 PSI): 6' x 10Ga.
Stainless Steel (tensile 85,000 PSI): 6' x 14Ga.
Soft Aluminum (tensile 28,000 PSI): 6' x 1/4"
min. thickness: 22Ga
Blade Lenght 80"
Strokes per minute 28
Worktable height 32"
Front support arm 36"
Back gauge: 26" Manual Back gauge
Blade Rake Angle: 2.5 Degree
Main Motor: 7-1/2HP, 3 Phase 25A
Prewired: 220VAC: (15A/440VAC optional)
Shipping weight: 5,550 lbs.
Shipping dimensions: 100" x 43" x 68"
26” manual back gauge with one side handwheel
60” long squaring arm with inch / mm scale, mounted on right side of the table
full length finger guard
Removable safety foot pedal control
