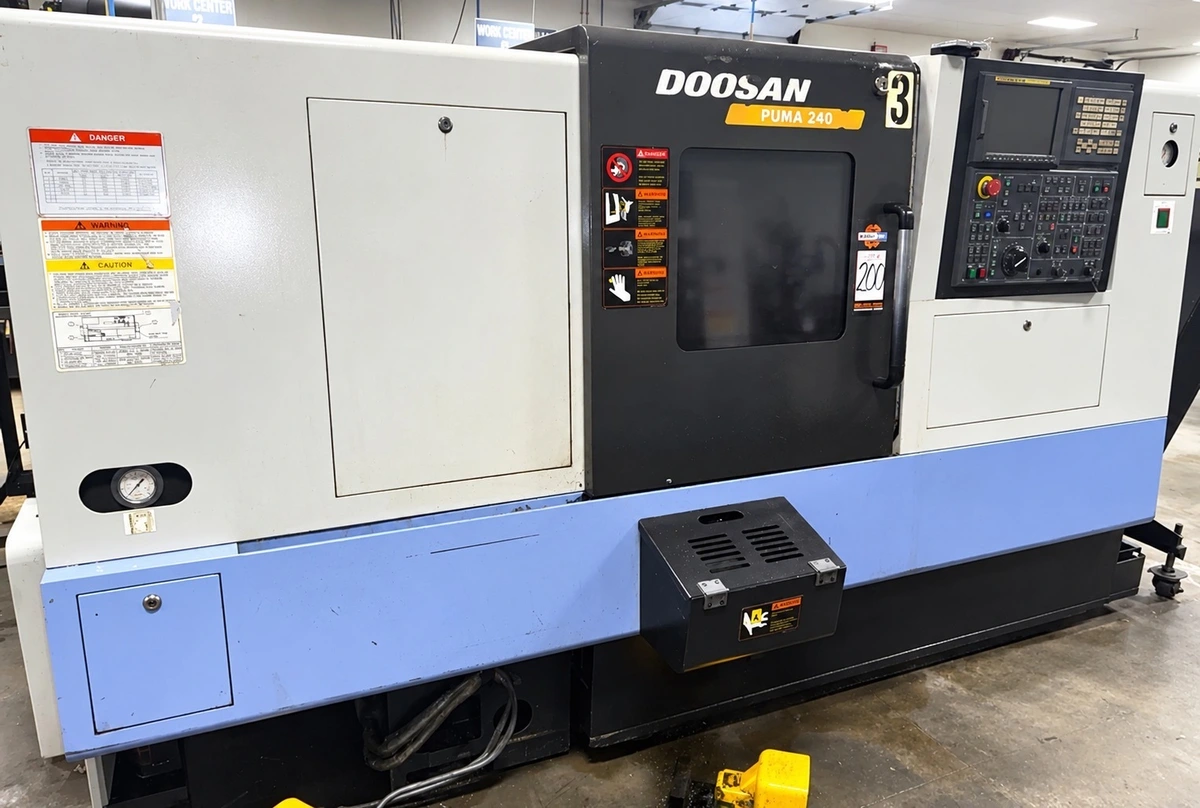

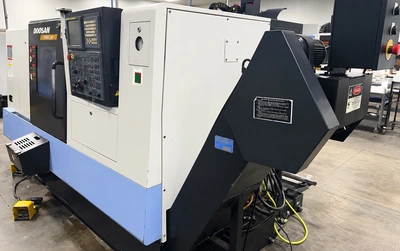

2009 Doosan Puma 240 CNC Lathe | Stock #4625
Have one to sell?
ConditionUsed
1 available
2009 Doosan Puma 240 CNC Lathe — Heavy-duty, well-built CNC turning center featuring a rigid box-way design and dependable Doosan performance. Ideal for general-purpose production and precision turning applications. This machine is in good used condition and available immediately.
Bar Capacity: 3 inches
Spindle Bore: 3.1 inches
Distance Between Centers: 28 inches
Spindle Nose: A2-8
Max Swing Over Bed: 22 inches
Tool Positions: 12
X-Travel: 8.5 inches
Single Turret: Yes
Z-Travel: 21 inches
Max Swing Over Saddle: 17.7 inches
Rapid Traverse: 945/1181 IPM
Max Cutting/Turning Diameter: 14 inches
Chuck Description: Royal S-30 Collet Chuck
Max Turning/Cutting Length: 20.5 inches
Chuck Type: Collet
Tailstock: Yes
Spindle Speed: 3,500 RPM
Additional Machine Specs: Hennig Chip Conveyor
Spindle Motor: 25 HP
Fanuc 21i-TB CNC Control
Rigid Tapping
Parts Catcher
Tool Presetter
Chip Conveyor
2009 Doosan Puma 240 CNC Lathe — Heavy-duty, well-built CNC turning center featuring a rigid box-way design and dependable Doosan performance. Ideal for general-purpose production and precision turning applications. This machine is in good used condition and available immediately.
Bar Capacity: 3 inches
Spindle Bore: 3.1 inches
Distance Between Centers: 28 inches
Spindle Nose: A2-8
Max Swing Over Bed: 22 inches
Tool Positions: 12
X-Travel: 8.5 inches
Single Turret: Yes
Z-Travel: 21 inches
Max Swing Over Saddle: 17.7 inches
Rapid Traverse: 945/1181 IPM
Max Cutting/Turning Diameter: 14 inches
Chuck Description: Royal S-30 Collet Chuck
Max Turning/Cutting Length: 20.5 inches
Chuck Type: Collet
Tailstock: Yes
Spindle Speed: 3,500 RPM
Additional Machine Specs: Hennig Chip Conveyor
Spindle Motor: 25 HP
Fanuc 21i-TB CNC Control
Rigid Tapping
Parts Catcher
Tool Presetter
Chip Conveyor
