2022 TSUGAMI SS327-III-5AX & BARFEED | Stock #4624
Have one to sell?
ConditionUsed
1 available

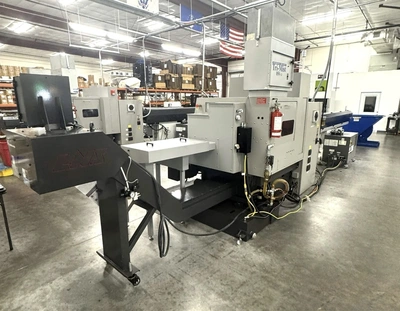

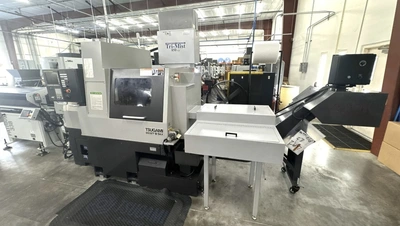

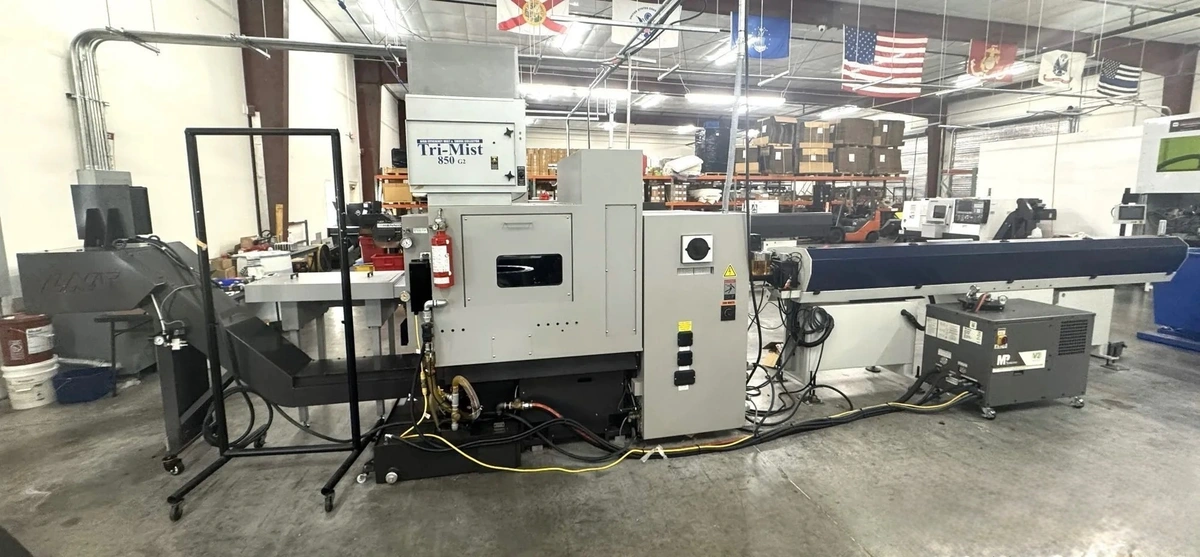

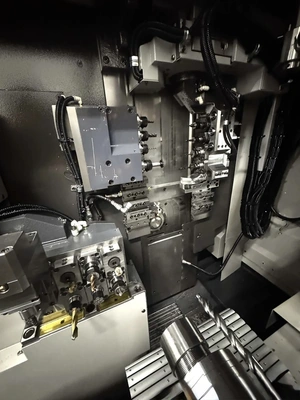

32mm, 7-axis, 350 Hours, Fanuc 31i-B5 Control, Edge Patriot 338 Bar Feeder, B-Axis Tool Post, MP Systems High-Pressure Coolant Unit, FireTrace System, Mist Collector, LNS Chip Conveyor. This originally owned chucker convertible 2022 Tsugami SS327-III-5AX is a sliding headstock CNC Swiss Lathe with simultaneous 4 & 5 axis machining. B-axis tool post contains live tool positions (4 front, 2 rear).
Specifications
BAR CAPACITY 1.26"
MAX MACHINING LENGTH 12.99"
MAX DRILLING DIAMETER 0.47"
MAIN SPINDLE MOTOR 7.4 hp
MAIN SPINDLE INDEXING FULL C-AXIS
MAIN SPINDLE SPEED 8,000 RPM
BACK SPINDLE MOTOR 7.4 hp
BACK SPINDLE INDEXING FULL C-AXIS
BACK SPINDLE SPEED 8,000 RPM
LIVE TOOL SPEEDS 6,000 RPM
CONTROLLABLE AXES 7
FANUC 31i-B5 CNC CONTROL (SIMULTANEOUS ALL AXES CONTROL)

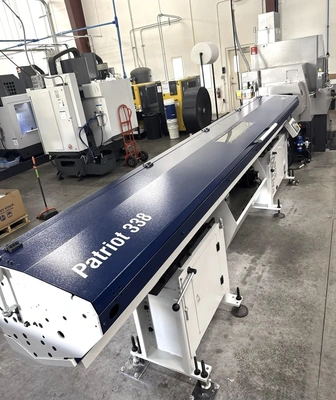

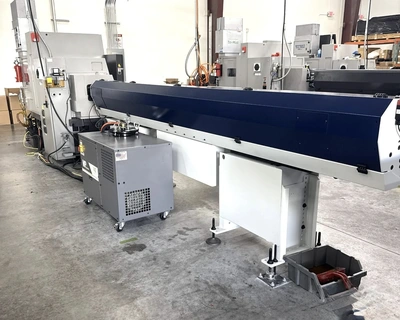

EDGE PATRIOT 338 MAGAZINE BAR FEEDER (2020)

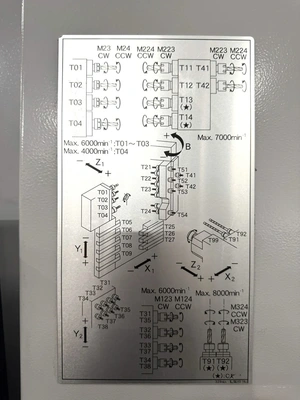

X1, Z1, Y1, X2, Y2, Z2, C1, C2

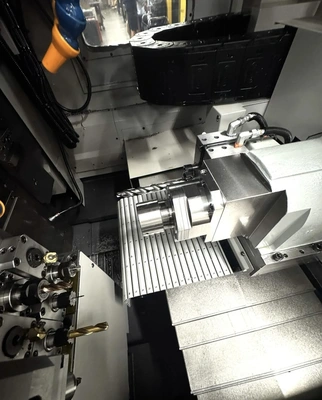

MODULAR B-AXIS TOOL SPINDLE (7,000 RPM SPINDLE)
BACK CROSS TOOL SPINDLE INCLUDED
DEEP HOLE DRILL HOLDER BESIDE BACK SPINDLE (T91 & T92)

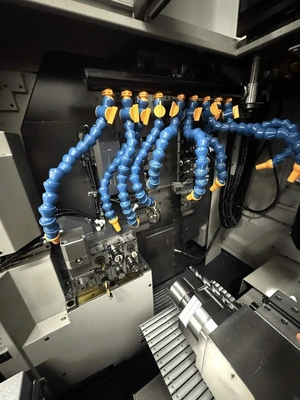

MP SYSTEMS 2000 PSI COOLANT SYSTEM (8-PORT)
FIRETRACE SYSTEM
MIST COLLECTOR (TRI-MIST 850 G2)

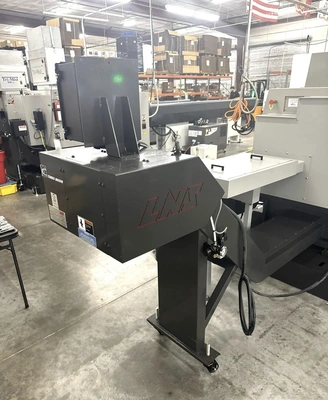

CHIP CONVEYOR (LNS)
PARTS CATCHER
LONG PARTS EJECTOR
TRANSFORMER
SLIDING HEADSTOCK W/DIRECT DRIVE GUIDE BUSHING
CONVERTIBLE TO CHUCKER MODE W/ OPTIONAL CHUCKER KIT
RIGID CAST IRON FRAME
** ORIGINAL OWNER
** MACHINE ONLY USING CUTTING OIL

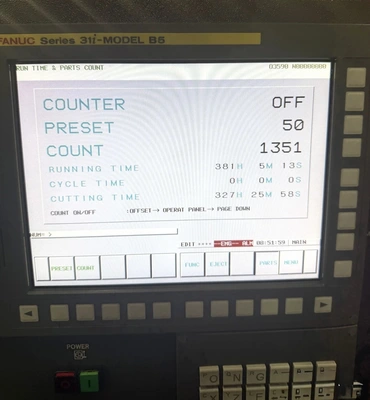

** AS OF JANUARY, 2026 - CUTTING TIME: 327 HOURS
** MACHINE CUTTING PRIMARILY STAINLESS STEEL 1714 & 316
** MACHINE MANUFACTURED DATE: OCTOBER, 2022
** FULL REPLACEMENT COST, AS EQUIPPED: $370,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
