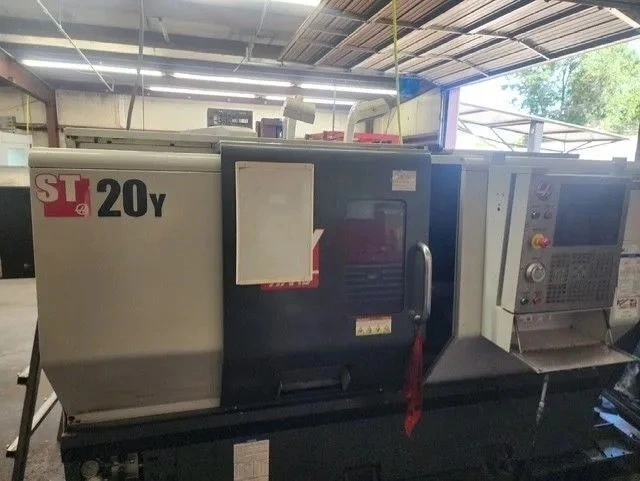

2011 Haas ST-20Y CNC Lathe | Stock #4618
Have one to sell?
ConditionUsed
1 available
This 2011 Haas ST-20Y is a versatile CNC turning center equipped with Y-axis capability and live tooling, allowing shops to perform turning, milling, drilling, and tapping operations in a single setup. The ST-20Y is well suited for job shops and production environments looking to reduce secondary operations while maintaining the straightforward operation and serviceability Haas machines are known for.
With its compact footprint, rigid construction, and multi-tasking capability, this ST-20Y offers an economical way to add Y-axis CNC turning capacity to your shop. A solid choice for producing complex turned components, shafts, fittings, and precision production parts.
Chuck Size 8.3"
Max Cutting Diameter 12"
Max Cutting Length 20.5"
Bar Capacity 2.0"
Swing Over Front Apron 31.75"
Swing Over Cross Slide 20.75"
Swing Over Tailstock 24.25"
Spindle Speed 4,000 RPM
Spindle Motor 20 HP
Spindle Nose A2-6
Spindle Bore 3.50"
Max Spindle Torque 150 ft-lb @ 700 RPM
X-Axis Travel 9.3"
Y-Axis Travel ±2.0" / 4.0" total
Z-Axis Travel 21.0"
X-Axis Rapid 945 IPM
Y-Axis Rapid 710 IPM
Z-Axis Rapid 945 IPM

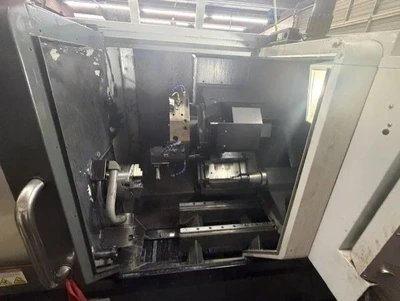

Turret 12-Station Hybrid
Tooling BOT / OD / VDI 40
Live Tooling Yes
C-Axis Yes
Power Requirement 195–260 V, 3-Phase
* To the best of our knowledge, the specs provided are accurate. It is the buyer's responsibility to verify specs and condition of the machine.

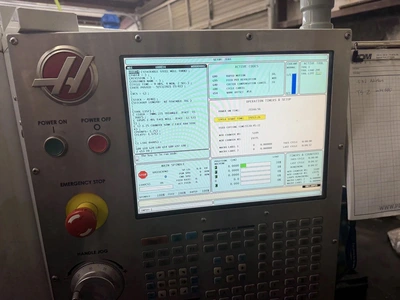

HAAS CNC CONTROL

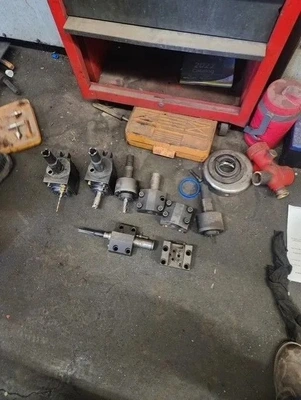

COMES WITH TOOLS + LIVE TOOLS
C-AXIS
Y-AXIS
WIRELESS INTUITIVE PROGRAMMING

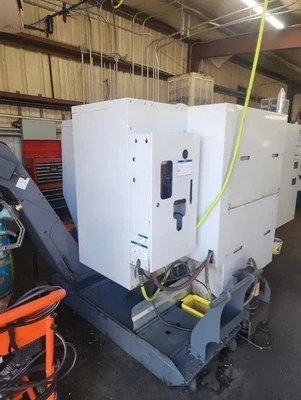

CHIP CONVEYOR
