2017 AMADA EG-6013AR Press Brake | Stock #4617
Have one to sell?
ConditionUsed
1 available
The 2017 AMADA EG-6013AR is a high-precision, compact electric press brake designed for fast and accurate bending of small, complex sheet metal parts. Featuring AMADA’s servo-electric drive technology, the EG-6013AR delivers excellent repeatability, quick cycle times, and energy-efficient operation without the maintenance requirements of a traditional hydraulic system.
Ideal for high-mix, high-precision production, this machine combines 60-ton bending capacity with a 51.2" working length and AMADA’s advanced CNC control for efficient setup and consistent part quality. The EG-6013AR is an excellent choice for shops producing electrical enclosures, brackets, aerospace components, medical parts, and other precision fabricated components.
2017 AMADA EG-6013AR – Precision, speed, and proven AMADA quality in a compact electric press brake.
TONNAGE 60 T
BENDING LENGTH 55.1"
TABLE LENGTH 55.1"
DISTANCE BETWEEN HOUSINGS 39.8'
MAX STROKE 5.9"
THROAT 9.1"
OPEN HEIGHT 25"
RAM SPEED - APPROACH 8.6 INCHES/SECOND
RAM SPEED - BENDING 0.98 INCHES/SECOND
Dimensions 230" x 120" x 120"

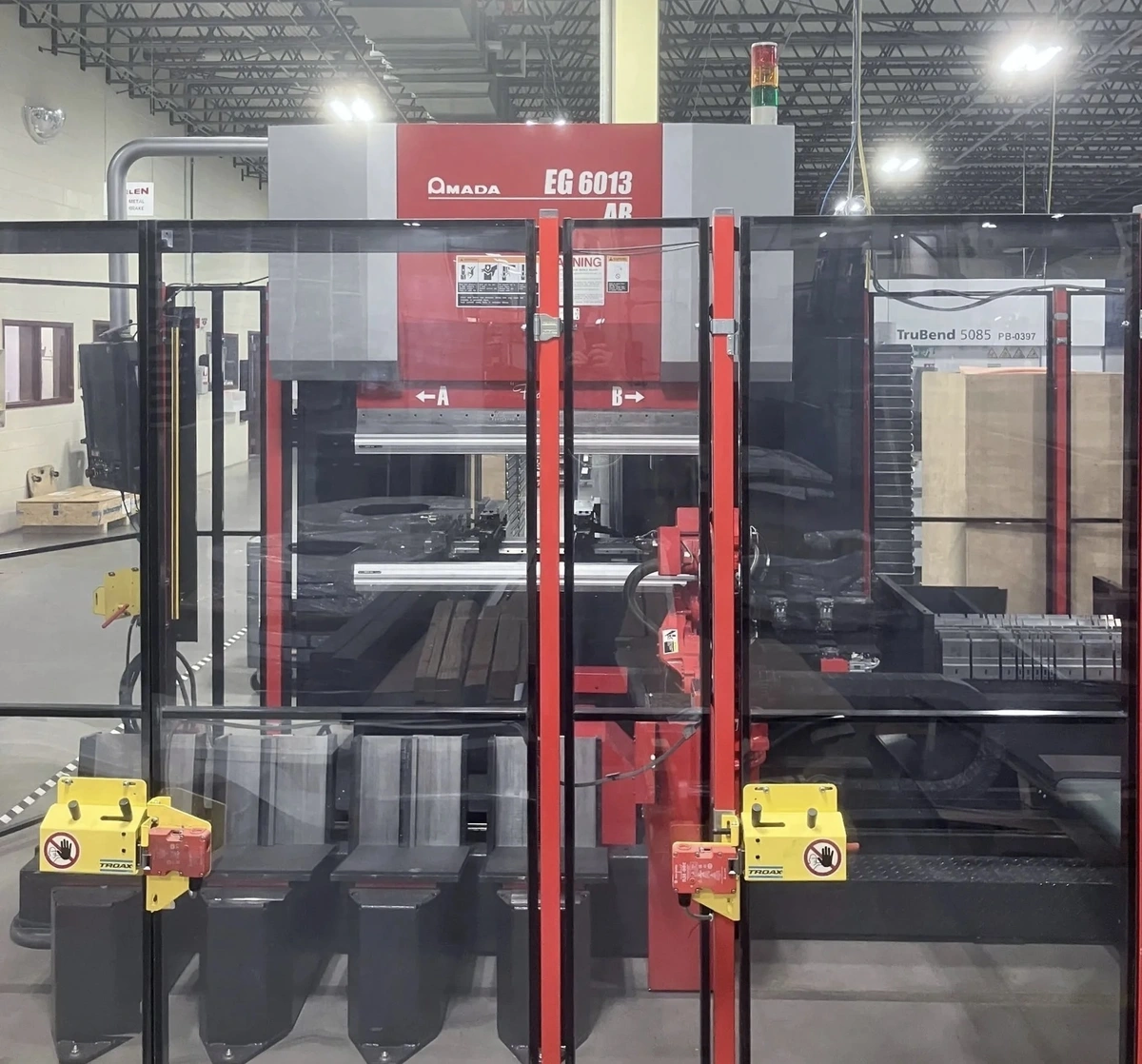

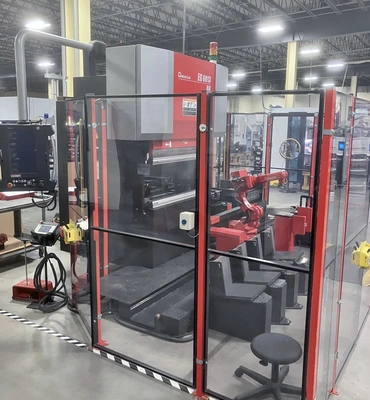

FULLY AUTOMATIC BENDING SYSTEM

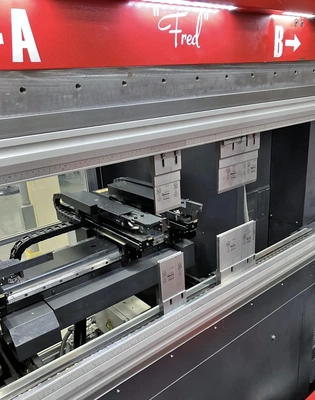

AMADA EG-6013R PRESS BRAKE (60 TON CAPACITY)

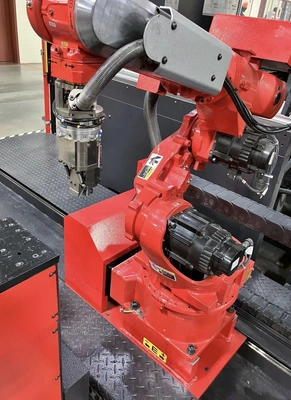

AMADA EG-ROBOT (22LB CAPACITY, 6 ARTICULATED AXES & 1 TRAVEL AXIS)

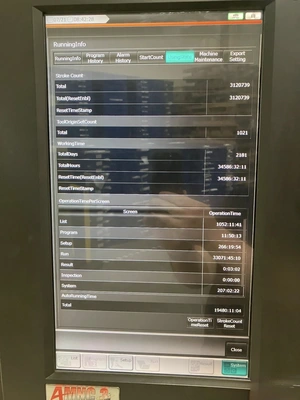

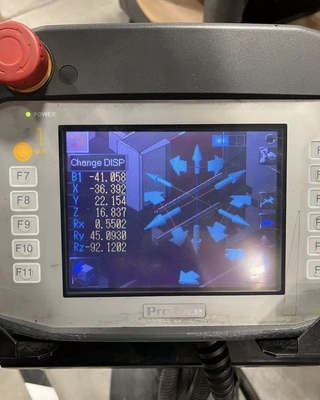

AMADA AMNC 3i CONTROL
DUAL SERVO PRESS (DSP) DRIVE MECHANISM
SERVO-ELECTRIC MOTORS

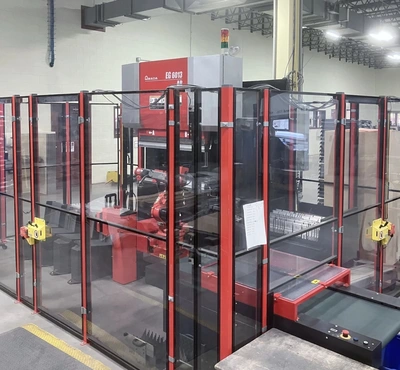

DEDICATED ENCLOSURE
(4) PART LOADING TABLES

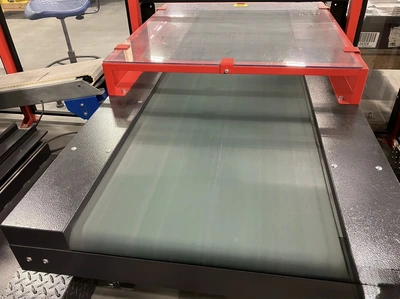

UNLOADING CONVEYOR

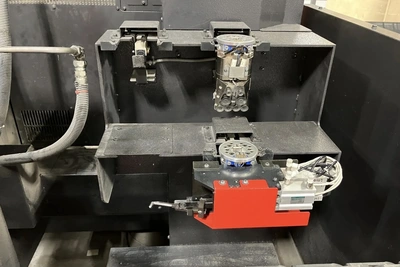

GRIPPER STATION

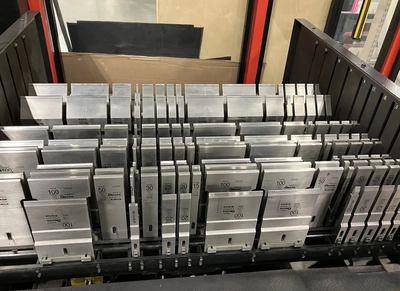

TOOL STOCKER
TOOLING INCLUDED:
PUNCHES:
001611 - 695mm 2.3mm radii / 86°
206665 E- 695mm 0.6mm radii / 30°
205665 E - 695mm 0.6mm radii / 86°
204665 E - 695mm 0.6mm radii / 86°
DIES:
897835 - 695mm
897865 - 695mm
898265 - 695mm
891235 - 695mm
** FULL REPLACEMENT COST OF SYSTEM, AS EQUIPPED - $550,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
The 2017 AMADA EG-6013AR is a high-precision, compact electric press brake designed for fast and accurate bending of small, complex sheet metal parts. Featuring AMADA’s servo-electric drive technology, the EG-6013AR delivers excellent repeatability, quick cycle times, and energy-efficient operation without the maintenance requirements of a traditional hydraulic system.
Ideal for high-mix, high-precision production, this machine combines 60-ton bending capacity with a 51.2" working length and AMADA’s advanced CNC control for efficient setup and consistent part quality. The EG-6013AR is an excellent choice for shops producing electrical enclosures, brackets, aerospace components, medical parts, and other precision fabricated components.
2017 AMADA EG-6013AR – Precision, speed, and proven AMADA quality in a compact electric press brake.
TONNAGE 60 T
BENDING LENGTH 55.1"
TABLE LENGTH 55.1"
DISTANCE BETWEEN HOUSINGS 39.8'
MAX STROKE 5.9"
THROAT 9.1"
OPEN HEIGHT 25"
RAM SPEED - APPROACH 8.6 INCHES/SECOND
RAM SPEED - BENDING 0.98 INCHES/SECOND
Dimensions 230" x 120" x 120"
FULLY AUTOMATIC BENDING SYSTEM
AMADA EG-6013R PRESS BRAKE (60 TON CAPACITY)
AMADA EG-ROBOT (22LB CAPACITY, 6 ARTICULATED AXES & 1 TRAVEL AXIS)
AMADA AMNC 3i CONTROL
DUAL SERVO PRESS (DSP) DRIVE MECHANISM
SERVO-ELECTRIC MOTORS
DEDICATED ENCLOSURE
(4) PART LOADING TABLES
UNLOADING CONVEYOR
GRIPPER STATION
TOOL STOCKER
TOOLING INCLUDED:
PUNCHES:
001611 - 695mm 2.3mm radii / 86°
206665 E- 695mm 0.6mm radii / 30°
205665 E - 695mm 0.6mm radii / 86°
204665 E - 695mm 0.6mm radii / 86°
DIES:
897835 - 695mm
897865 - 695mm
898265 - 695mm
891235 - 695mm
** FULL REPLACEMENT COST OF SYSTEM, AS EQUIPPED - $550,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
