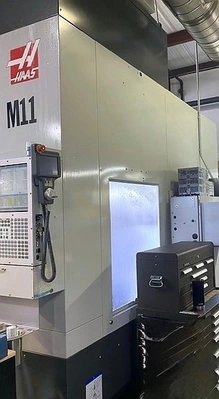

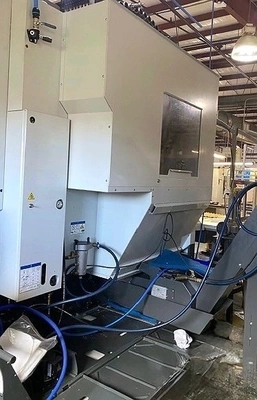

2022 Haas UMC-750SS Universal Machining Center | Stock #4616
Have one to sell?
ConditionUsed
1 available

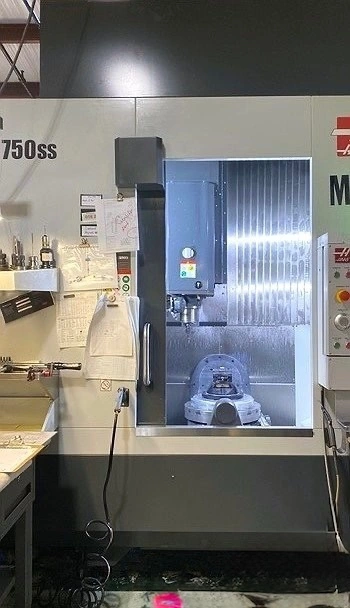

The 2022 Haas UMC-750SS is a high-performance 5-axis machining center built for simultaneous 5-axis and 3+2 work. It features 30" x 20" x 20" travels, a high-speed trunnion with +110° to -35° A-axis tilt and full 360° C-axis rotation, and a 630 x 500 mm T-slot platter.
The Super Speed configuration includes a 15,000 RPM, 30 HP inline direct-drive CAT-40 spindle, 1,200 IPM rapids, high-speed rotary motion, and an expanded 70-pocket side-mount tool changer. Compared with the standard UMC-750, the SS delivers significantly faster spindle and rotary performance for reduced cycle times. Equipped with the current-generation Haas control, this machine offers powerful 5-axis capability and productivity at a used-equipment value.
Rotary Table / Trunnion: 5th Axis Trunnion
Table / Pallet Size: 24.8" x 19.69"
X-Travel: 30.00"
Y-Travel: 20.00"
Z-Travel: 20.00"
Rapid Traverse: 1,200 IPM
SPINDLE
Spindle Taper Type: CAT#40
Spindle Speed: 15,000 RPM
Spindle Motor: 30 HP
TOOL CHANGER
Tool Magazine Capacity: 70
Tool Changer Type: Side Mount
Machine Options: Auto Door;Coolant Filter;Transformer
Additional Machine Specs: 5-Axis Integrated Trunnion: A-Axis +110 / -35 deg, C-Axis 360 deg
Trunnion Platter: 630 x 500 mm with T-Slots
Super Speed Package - 15,000 RPM Inline Direct-Drive Spindle
150 deg/sec Trunnion Rapids
Rotary Axis Scales (A and C Axes)
Oil Skimmer
Enclosure Exhaust System
Air Vise-Ready
Anchoring Kit
Coolant Maintenance Pack
95 Gallon Coolant Tank
Full Enclosure with Top Cover
Coolant Types: Flood Coolant;Thru-Spindle Coolant;Programmable Coolant
Chip Removal: Chip Conveyor
Probe Make/Model: Haas WIPS-R Wireless Probing
