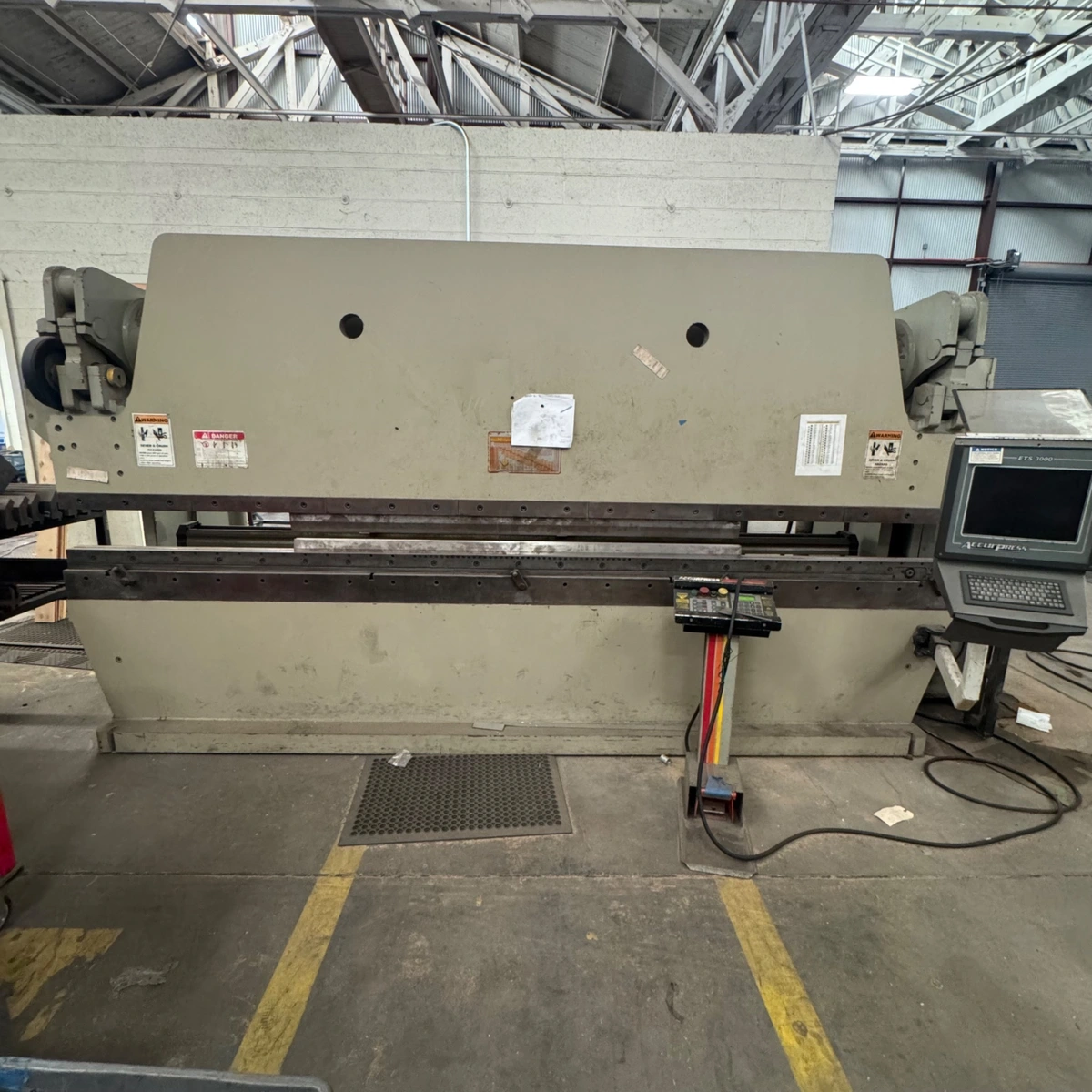

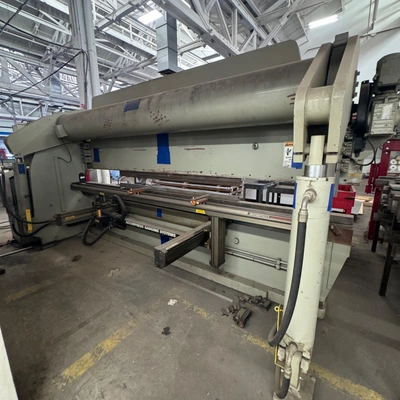

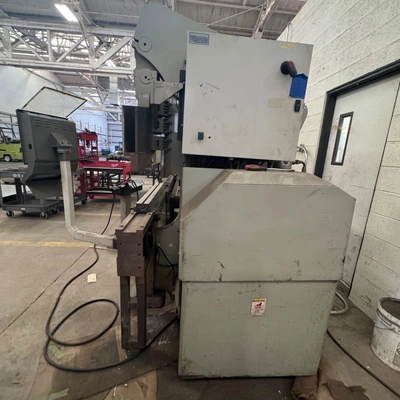

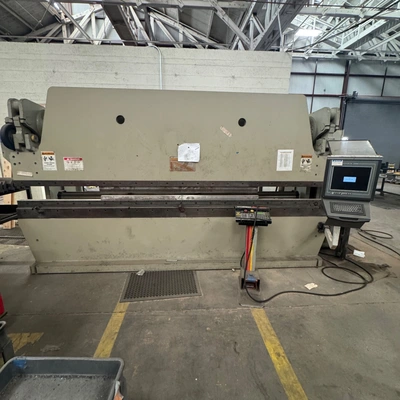

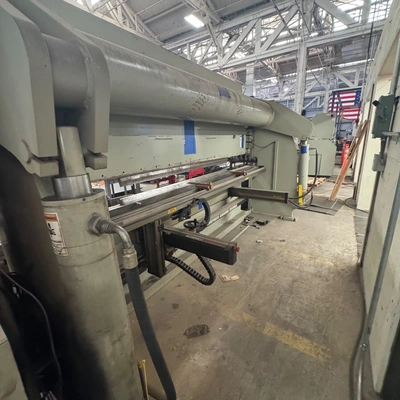

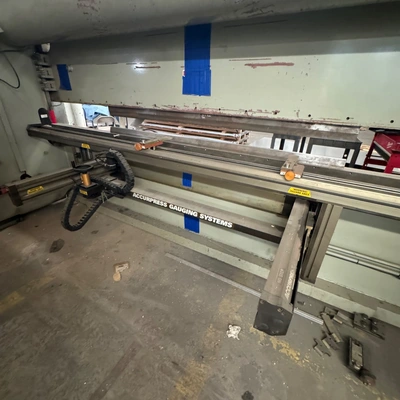

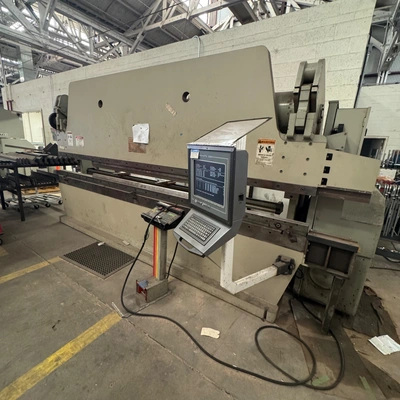

Accurpress 7017514 Press Brake | Stock #4611
Have one to sell?
ConditionUsed
1 available
Heavy-duty, American-built Accurpress press brake designed for reliable and accurate forming. The 7017514 offers 175 tons of bending capacity with a 14' overall bed length, making it well suited for a wide range of fabrication and production applications. Known for their rugged construction, straightforward operation, and long service life, Accurpress machines remain a popular choice for job shops and structural fabrication facilities.
A solid, proven press brake ready to go back to work.
Capacity 175 Tons
Bed & Ram Length 168" / 14'
Distance Between Housings 148" / 12' 4"
Throat Depth 10"
Ram Stroke 8"
Open Height 14"
Closed Height 6"
Bed Height 34"
Bed Width 6"
Fast Approach Approx. 90 IPM
Pressing Speed Approx. 24 IPM
Fast Return Approx. 180 IPM
Main Motor 20 HP
Overall Dimensions Approx. 202" × 60" × 94" H
Weight Approx. 26,000 lbs.
* To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
