2011 Doosan Puma 300C CNC Lathe | Stock #4607
Have one to sell?
ConditionUsed
1 available

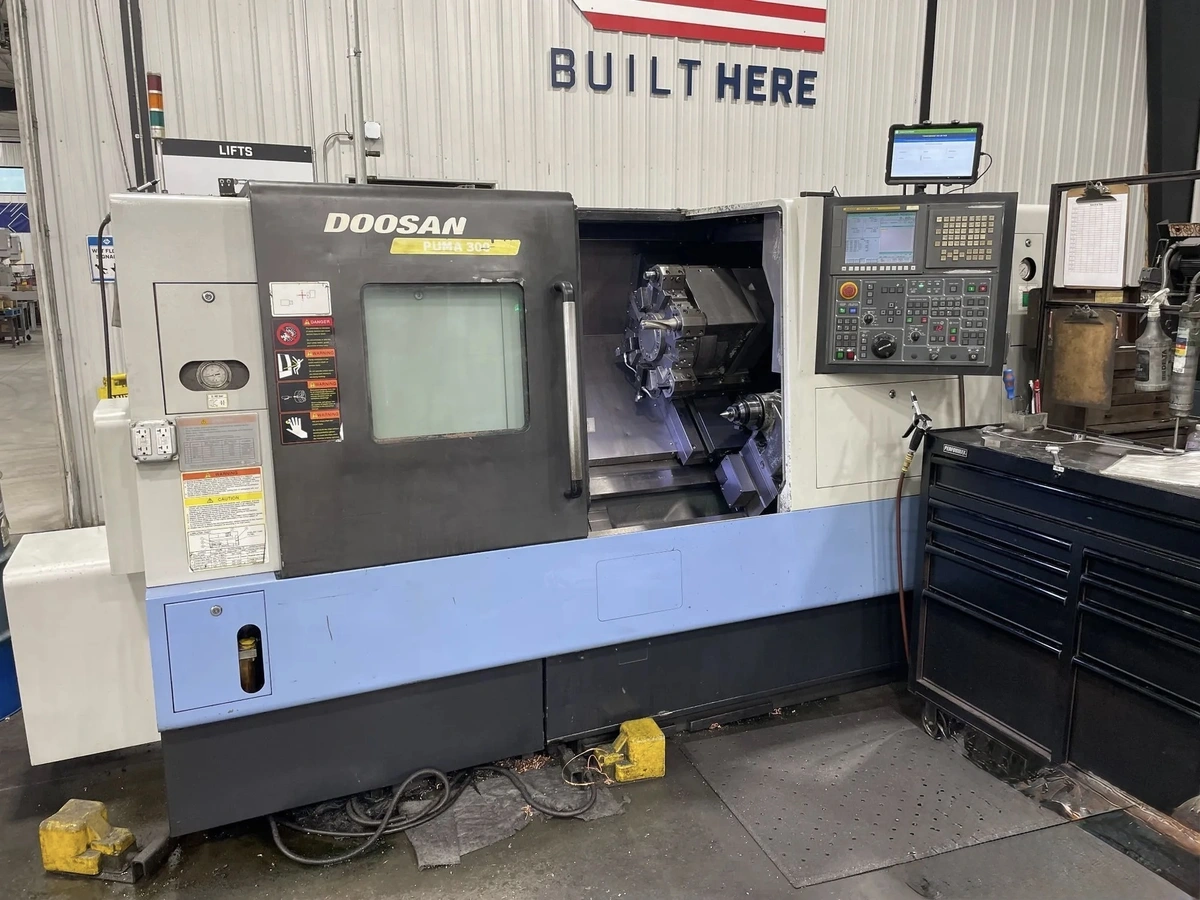

This 2011 Doosan Puma 300C CNC Lathe is a powerful, heavy-duty turning center built for precision, reliability, and high-production machining. With its rigid construction, strong spindle performance, and proven Doosan engineering, it is an excellent choice for shops machining medium to large components. A dependable and cost-effective addition to any CNC turning operation.
Max Turning Diameter: 15.7 inch
Max Turning Length: 24.8 inch
Max Bar Capacity: 4.05 inch
Swing Over Bed: 22.4 inch
Swing Over Carriage: 17.7 inch
Distance Between Centers: 27.8 inch
X Axis Travel: 11.1 inch
Z Axis Travel: 26.8 inch
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-11
Spindle Bore: 4.5 inch
Spindle Speed: 0 – 2800 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.97 inch
Tailstock Quill Travel: 4.7 inch
To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
Chip Conveyor
Tailstock
Tool Setter
Cutting 9506
Run Time 8114
