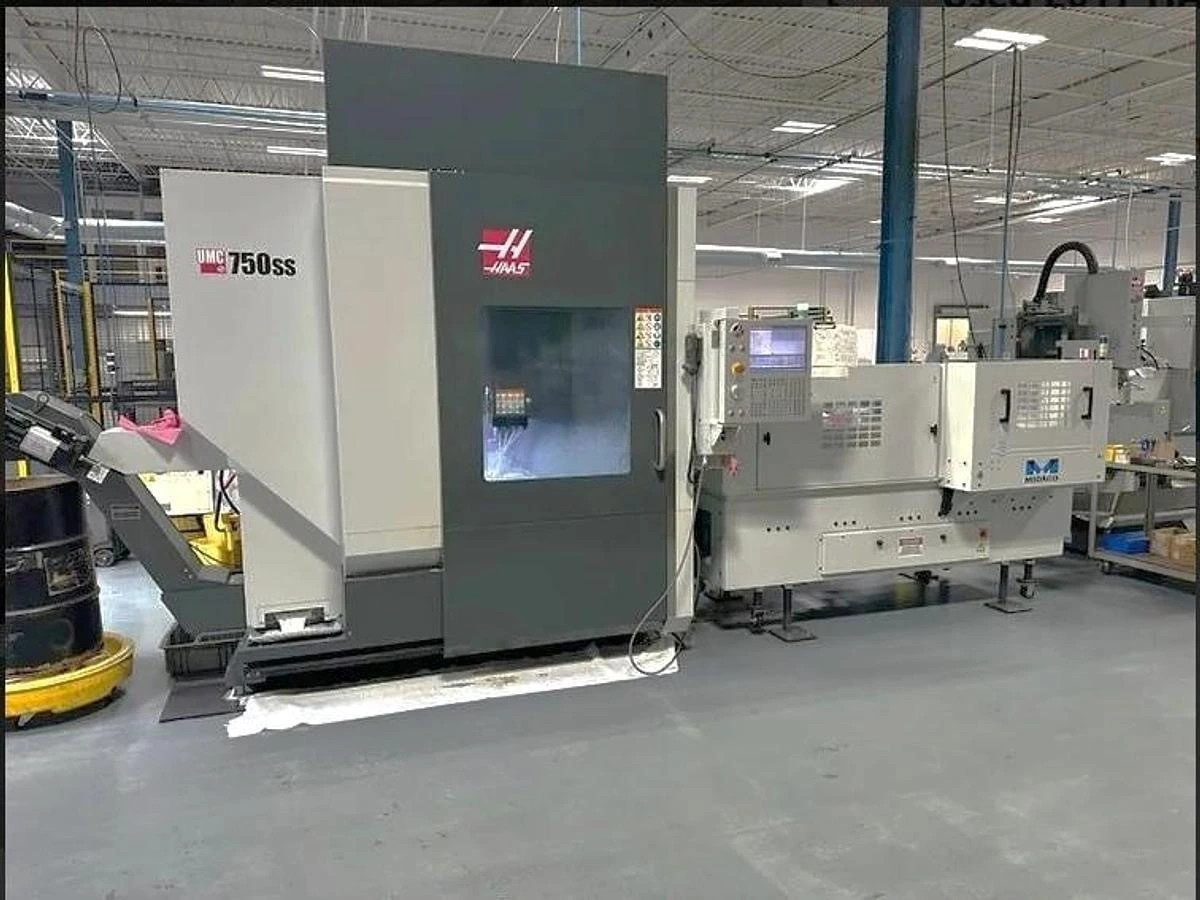

2016 Haas UMC-750SS with Midaco 19 Pallet Changer System | Stock #4606
Have one to sell?
ConditionUsed
1 available
Highly capable 5-axis machining with automated pallet flexibility! This 2016 Haas UMC-750SS is a powerful and versatile 5-axis CNC machining center equipped with a Midaco 19-pallet changer system, making it an excellent solution for high-mix, high-production manufacturing environments.
The Super-Speed UMC-750SS features a 15,000 RPM spindle, coolant through spindle, 30-position automatic tool changer, and Haas probing for increased accuracy and reduced setup times. The addition of the Midaco 19-pallet changer provides substantial unattended machining capability and allows multiple jobs to be staged and ready for production.
With full 5-axis simultaneous machining capability, this UMC-750SS is ideal for complex components, reduced setups, and applications requiring excellent accessibility to multiple surfaces.
Manufacturer Haas
Model UMC-750SS
Year 2016
Condition Used
Stock Number 120437
Table Size / Number of Pallets 19.7" x 24.8" / 19 Pallets
Table load capacity 200 lbs
X axis travel 30"
Y axis travel 20"
Z axis travel 20"
B axis rotate of trunnion -35 Degrees to 110 Degrees
C axis table rotation .001 Degree Positioning
Spindle taper CAT #40
Spindle speed 15,000 RPM
Spindle motor 30 HP
Distance Spindle Nose to Table Top 4" - 24"
Tool magazine 30 + 1 Position Toolchanger
Maximum Tool Diameter / Length / Weight 5" / 12" / 12 lbs.
Rapid traverse rates 1200 IPM
Maximum feed rates 650 IPM
Machine dimensions 240" x 132" x 110"
Machine weight 23,000 lbs
Midaco 19 Pallet Changer System - $125,000 Option
Trunnion Style 4th/5th Axis Table
Coolant Through the Spindle
15,000 RPM Spindle
Haas Wireless Intuitive Probing Package
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Belt Chip Conveyor-Hennig
30 Station Tool Changer
High Speed Machining
Rigid Tapping
Remote Jog Handle
TCPC and DWO
VPS Editing Capability
Media Display
Compensation Tables
1 GB Programming Storage
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Wired 220V Electrics
**Price new as equipped at over $420,000**
**Manufactured New in December of 2016**
**Used to manufacture parts for military contractor and aerospace industries**
