2017 HAAS UMC-750SS | Stock #4604
Have one to sell?
ConditionUsed
1 available
HIGH-PERFORMANCE 5-AXIS MACHINING • 15,000 RPM SPINDLE • 40+1 ATC

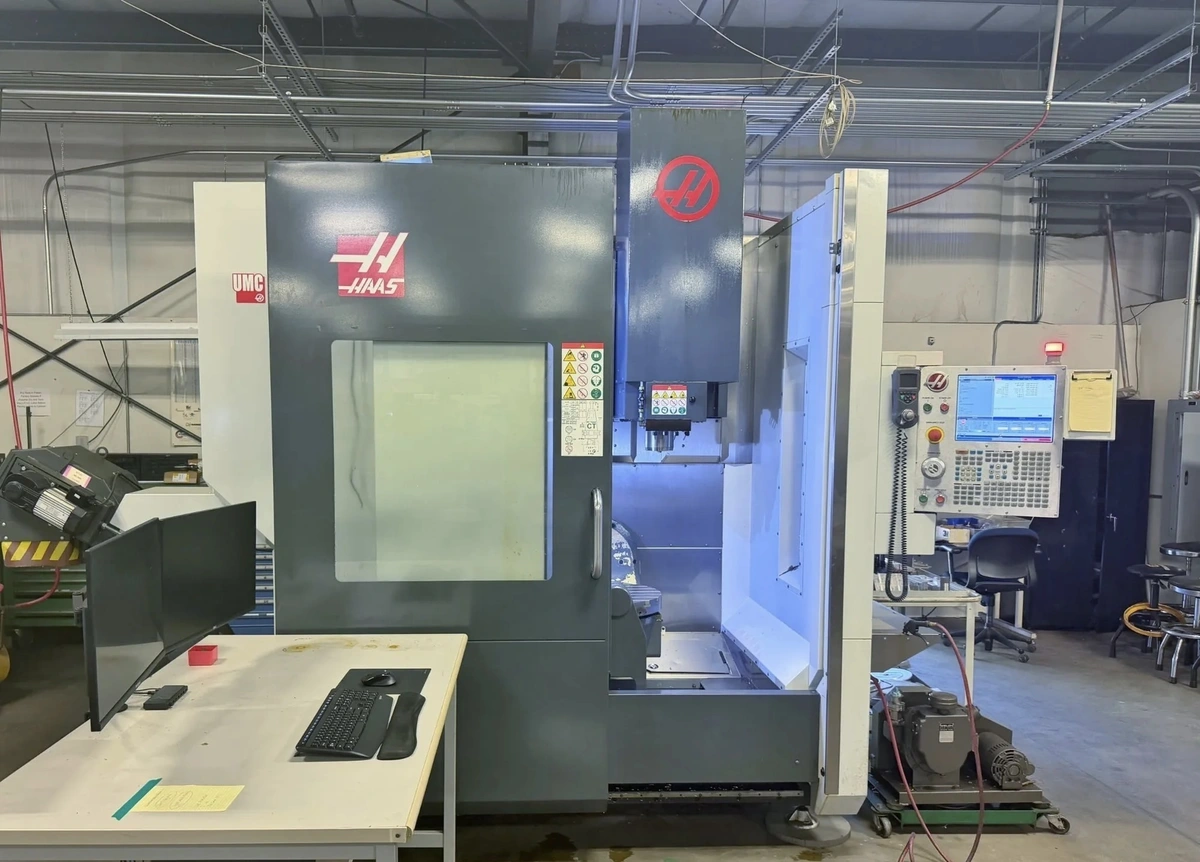

Take your machining capabilities to the next level with this 2017 Haas UMC-750SS, a highly capable 5-axis CNC machining center designed for complex, multi-sided parts and high-productivity machining. The Super-Speed (SS) configuration features a 15,000 RPM spindle and a 40+1 tool changer, providing the speed, flexibility, and tool capacity needed for demanding production environments.
The UMC-750SS combines a rigid machining platform with a fully integrated 5-axis trunnion table, allowing multiple faces of a part to be machined in a single setup. This can significantly reduce setup time, improve accuracy, and increase overall productivity.
PLATTER DIAMETER 19.7"
X-AXIS TRAVEL 30"
Y-AXIS TRAVEL 20"
Z-AXIS TRAVEL 20"
B-AXIS (TILT) TRAVEL +120 DEGREES/ -35 DEGREES
C-AXIS (ROTATION) TRAVEL 360 DEGREES
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 40
Equipped With
HAAS NEXTGEN CONTROL
15,000 RPM SPINDLE
40-STATION TOOL CHANGER
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
THROUGH-TOOL AIR BLAST
REMOTE JOG HANDLE
CHIP CONVEYOR
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL (DWO/TCPC)
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
SECOND HOME POSITION
HIGH-SPEED MACHINING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
32GB MEMORY
HAASCONNECT: REMOTE MONITORING
** AS OF AUGUST 2026, CUTTING TIME – 4,784 HOURS
** MACHINE CUT PRIMARILY ALUMINUM & STAINLESS
** FULL REPLACEMENT COST, AS EQUIPPED - $250,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
