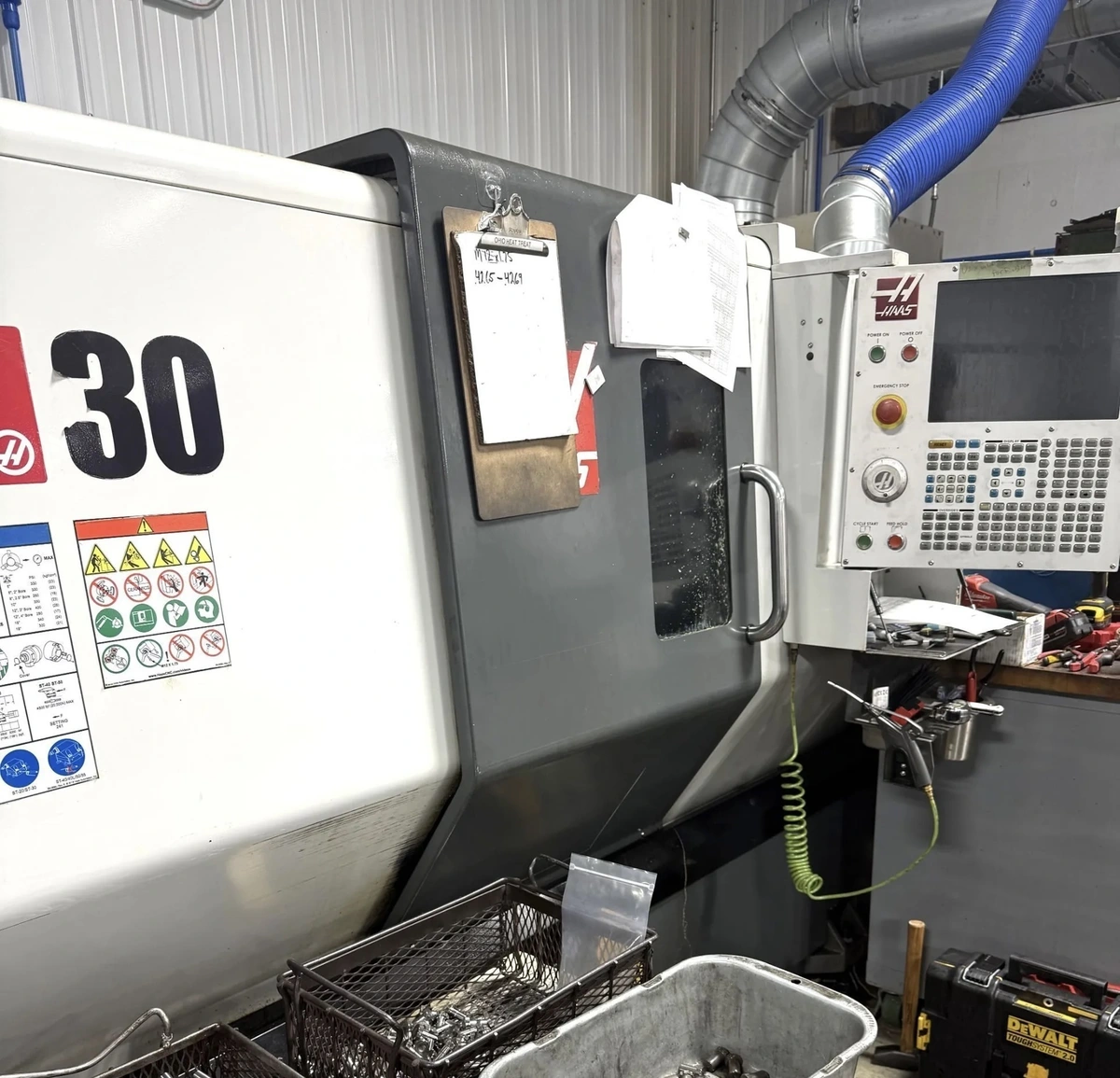

2019 HAAS ST-30 CNC Lathe | Stock #4590
Have one to sell?
ConditionUsed
1 available
This 2019 HAAS ST-30 CNC Lathe is a great opportunity to add a proven, high-performance CNC turning center to your shop without the cost of a new machine. With only 3,000 hours and integrated probing, this machine is well-suited for precision production, prototyping, and general machining applications.
A solid choice for shops looking for HAAS quality, capability, and low operating hours at an attractive used-machine price.
SWING OVER FRONT APRON 31.75"
MAX CUTTING DIAMETER 15.00"
MAX CUTTING LENGTH 32.50"
X-AXIS TRAVEL 9.40"
Z-AXIS TRAVEL 32.50"
CHUCK SIZE 10"
BAR CAPACITY 3.00"
SPINDLE BORE 3.50"
SPINDLE NOSE A2-6
SPINDLE MOTOR 30 HP
SPINDLE SPEED 3,400 RPM
RAPID TRAVERSE RATE X-AXIS 472 IPM
RAPID TRAVERSE RATE Z-AXIS 945 IPM
TURRET POSITIONS 12
**To the best of our knowledge all details listed above are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase**
NEXTGEN CNC CONTROL
PROGRAMMABLE TAILSTOCK
WIRELESS INTUITIVE PROBING SYSTEM FOR LATHES (WIPS)
TOOL PRESETTER
10" 3-JAW HYDRAULIC CHUCK
4,500 RPM SPINDLE UPGRADE
CHIP CONVEYOR
AIR BLAST
HIGH PRESSURE COOLANT (300 PSI)
COOLANT SYSTEM
VISUAL PART PROGRAMMING SYSTEM
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
EARLY POWER-FAILURE DETECTION
ETHERNET
1GB
HAAS CONNECT
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY: STEEL
** MACHINE INSTALL DATE: JANUARY, 2020
** MACHINE MANUFACTURED DATE: NOVEMBER, 2019
** REPLACEMENT PRICE NEW AS EQUIPPED: $135,000
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
