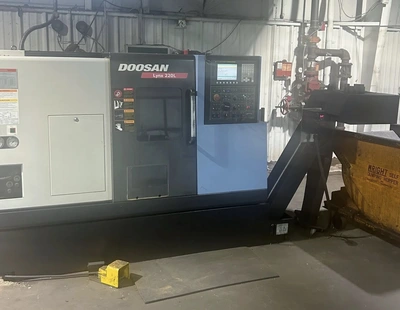

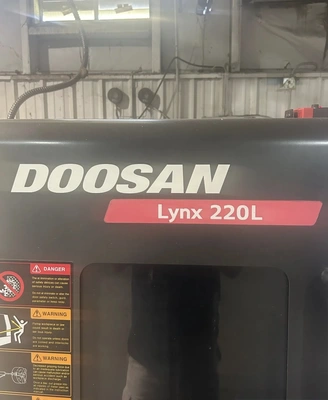

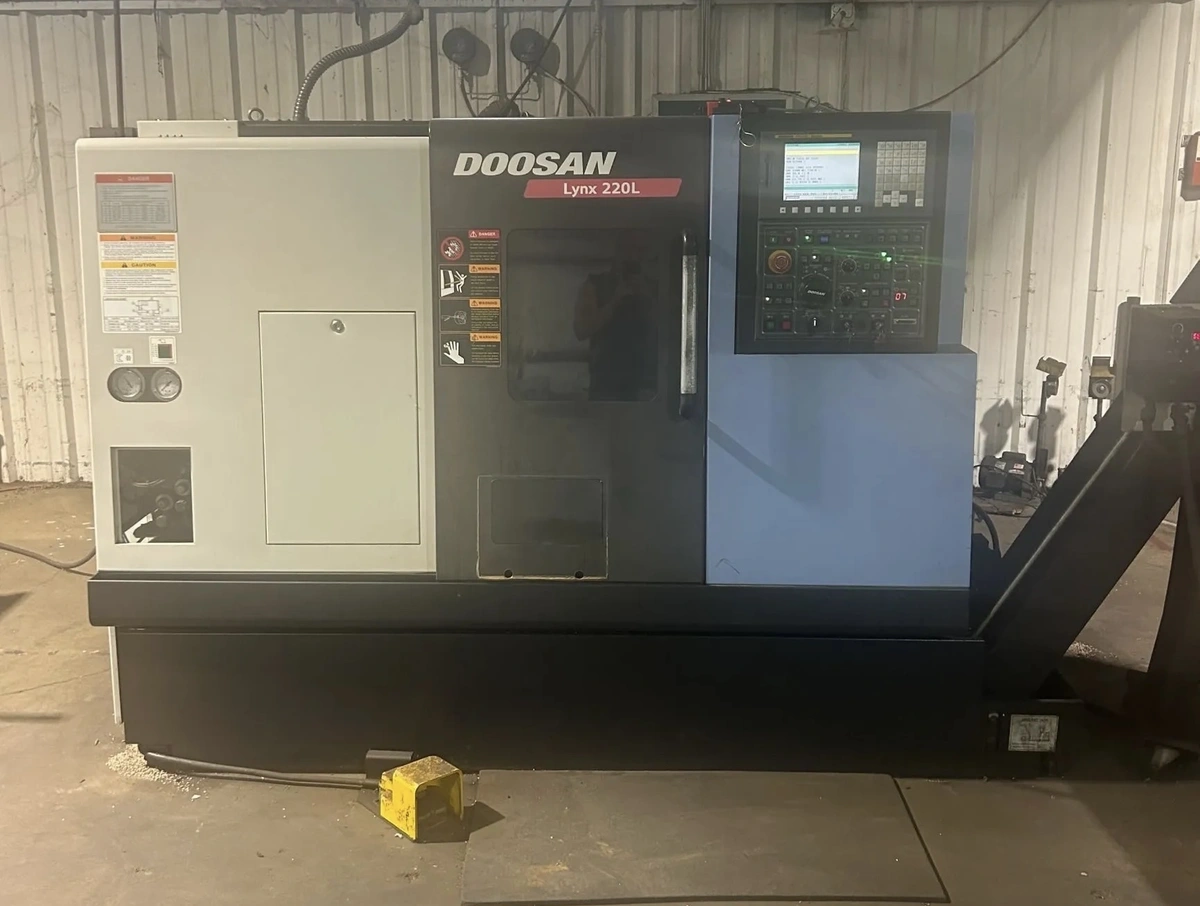

2012 DOOSAN PUMA 220LC CNC Lathe | Stock #4585
Have one to sell?
ConditionUsed
1 available
Built for reliability and precision, this 2012 Doosan Puma 220LC is an excellent choice for high-performance turning applications. Equipped with a dependable FANUC CNC Control, an 8" chuck, 2.6" bar capacity, and a 20.7" cutting length, this machine is well-suited for a wide range of production work. Additional features include a tailstock for enhanced part support and a chip conveyor for efficient chip management. Two identical machines are available, making them an ideal solution for increasing production capacity or maintaining process consistency across multiple shifts.
MAX SWING 20"
MAX CUTTING DIAMETER 12.6"
MAX CUTTING LENGTH 21"
X-AXIS TRAVEL 6.9"
Z-AXIS TRAVEL 21.7"
CHUCK SIZE 8"
BAR CAPACITY 2.6"
SPINDLE BORE 3"
SPINDLE NOSE A2-6
SPINDLE MOTOR 20 hp
SPINDLE SPEED 4,000 RPM

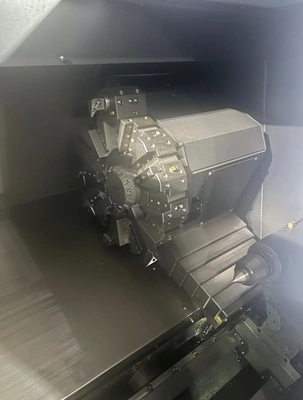

TURRET POSITIONS 12
DOOSAN-FANUC i SERIES CONTROL
LONG BED (21” CUTTING LENGTH)

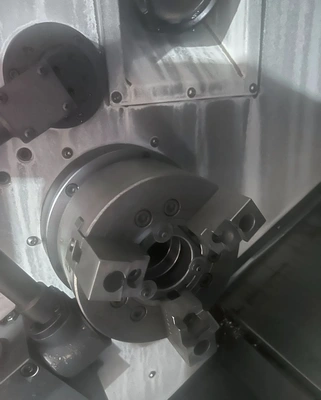

8”, 3-JAW HYDRAULIC CHUCK
2.6” BAR CAPACITY
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR

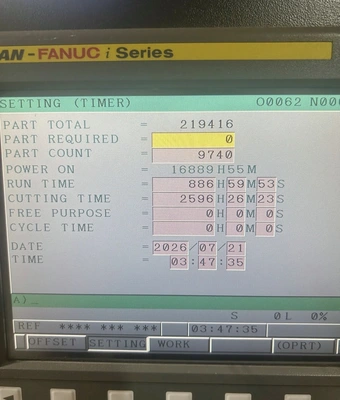

** AS OF JULY 2026, CUTTING TIME – 2,596 HOURS
** MACHINE CUT PRIMARILY ALLOY STEEL (8620)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
