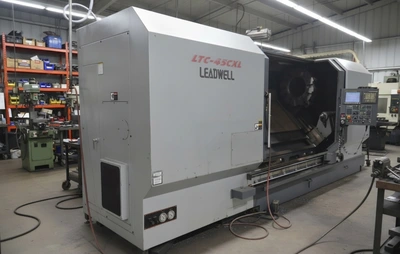

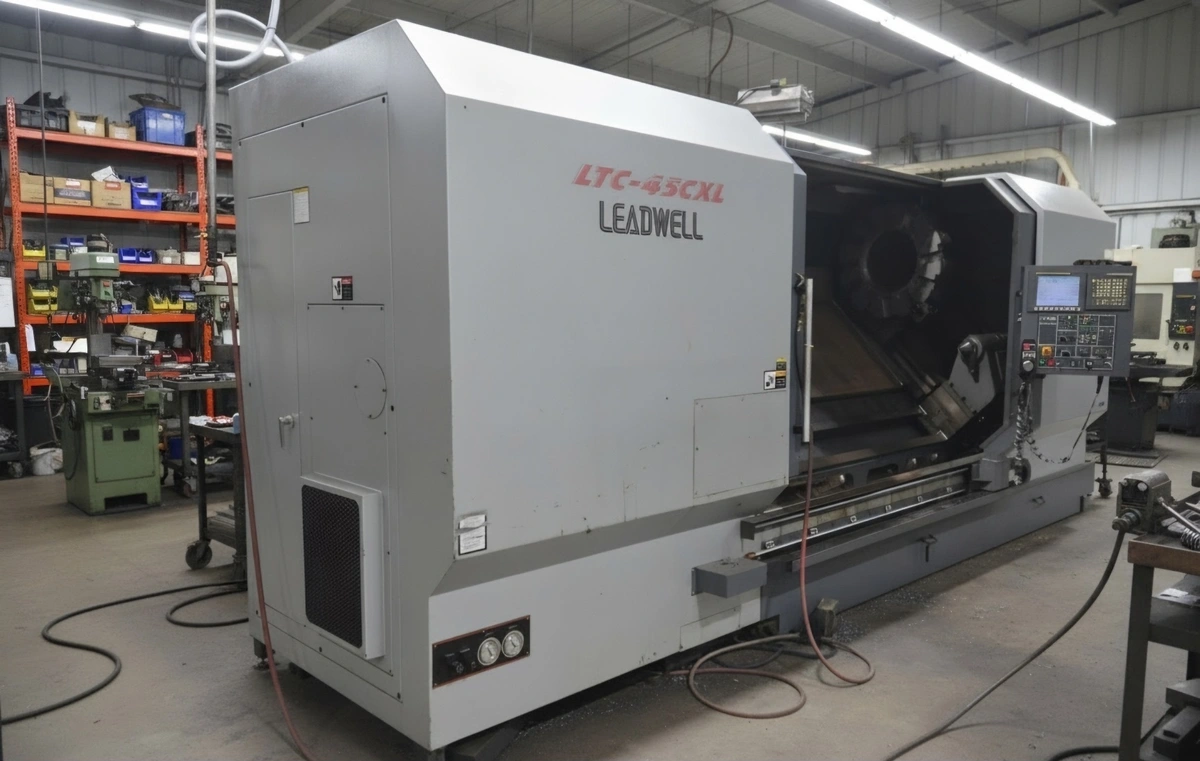

2011 Leadwell LTC 45CXL CNC Slant Bed Turning Center | Stock #4582
Have one to sell?
ConditionUsed
1 available
Built for precision, power, and dependable performance, the 2011 Leadwell LTC-45CXL CNC Slant Bed Turning Center is an excellent solution for high-production turning applications. Its rigid slant-bed construction delivers superior stability and accuracy while promoting efficient chip evacuation for uninterrupted machining. Designed to handle a wide range of materials, the LTC-45CXL offers the durability, reliability, and consistent performance manufacturers demand in today's production environment.
Swing Over Bed: 29.1"
Swing Over Cross Slide: 27.5"
Max Turning Diameter: 25.6"
X-Axis Travel: 12.5"
Z Axis Travel: 83.0"
Max. Turning Length: 79.9"
X-Axis Feedrate: 590 IPM
Z-Axis Feedrate: 787 IPM
Spindle Bore: 5.0"
Bar Capacity: 4.5"

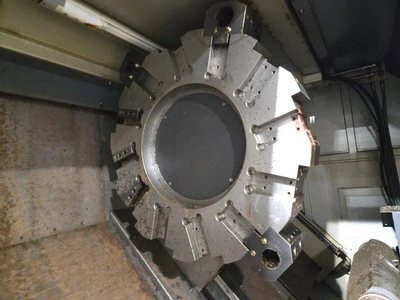

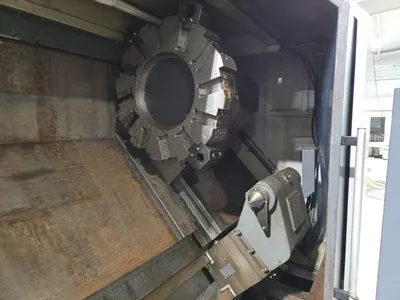

Turret Positions: 12
Spindle Nose: A2-11
Spindle Speeds: 2,000 RPM
Main Motor Drive: 50 HP

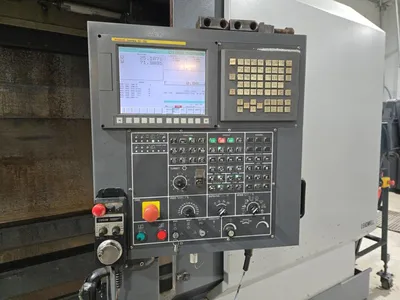

Fanuc 0iTD CNC Control

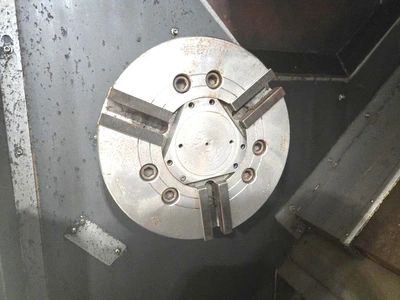

15" 3-Jaw Power Chuck
45 Degree Slant Bed Construction
Chip Conveyor and Bucket

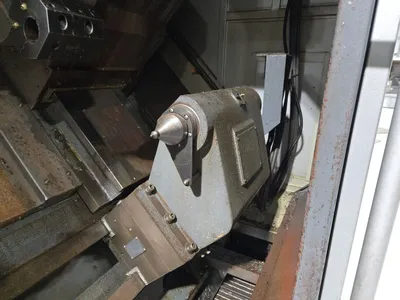

Programmable Tailstock Body
Flood Coolant Unit
Rigid Box Way Construction
