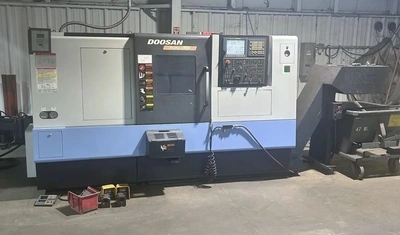

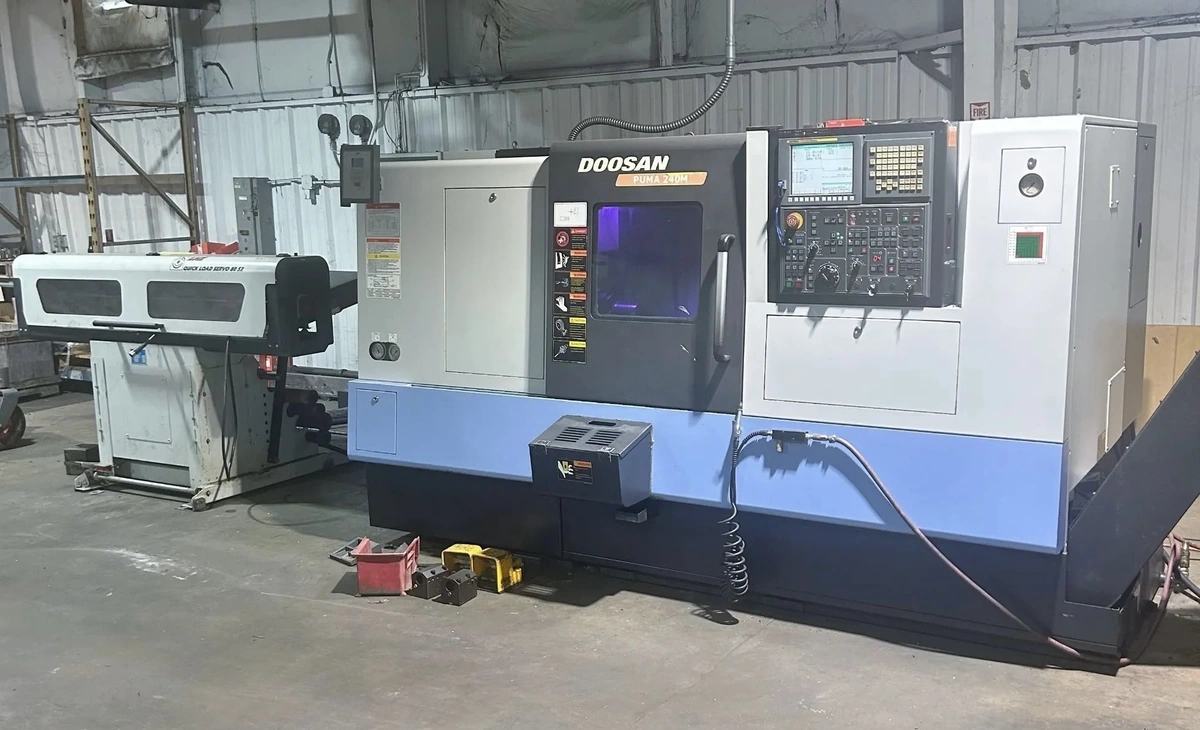

2013 Doosan Puma 240MC CNC Lathe with LNS Bar Feeder | Stock #4581
Have one to sell?
ConditionUsed
1 available
Increase your turning productivity with this well-equipped 2013 Doosan Puma 240MC CNC Lathe featuring live tooling, C-axis capability, and an LNS bar feeder for efficient unattended production. Built for precision, reliability, and versatility, this machine is ideal for high-volume manufacturing as well as complex turned and milled components. A proven performer in job shops and production environments, the Puma 240MC delivers the accuracy and uptime Doosan is known for.
SWING OVER BED 21.7"
MAX CUTTING DIAMETER 11.4"
MAX CUTTING LENGTH 19.7"
X-AXIS TRAVEL 8"
Z-AXIS TRAVEL 22.8"
CHUCK SIZE 10"
BAR CAPACITY 3"
SPINDLE BORE 3.38"
SPINDLE NOSE A2-8
SPINDLE MOTOR 25 hp
SPINDLE SPEED 3,500 RPM

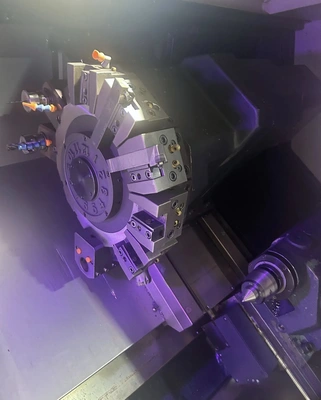

TURRET CAPACITY 12
TURRET TYPE BMT55
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
DOOSAN-FANUC i SERIES CONTROL

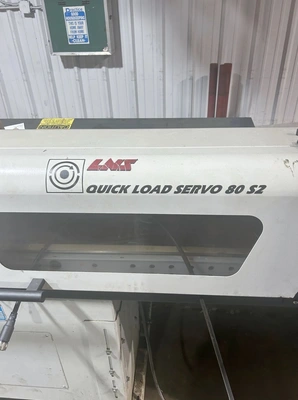

LNS QUICK LOAD SERVO 80 S2 MAGAZINE BAR FEEDER (5’)
LIVE MILLING

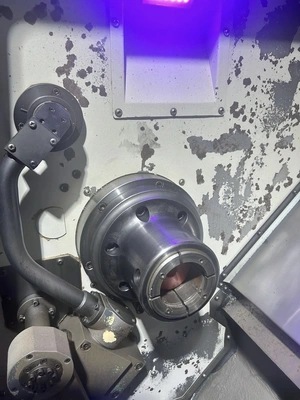

COLLET CHUCK
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
BOX WAYS
(6) LIVE TOOL HOLDERS

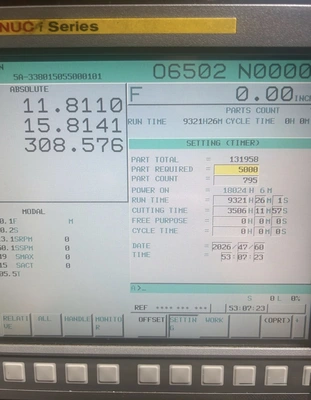

** AS OF JULY 2026, CUTTING TIME – 3,506 HOURS
** MACHINE CUT PRIMARILY ALLOY STEEL (8620)
** FULL REPLACEMENT COST, AS EQUIPPED - $165,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURHCHASE
