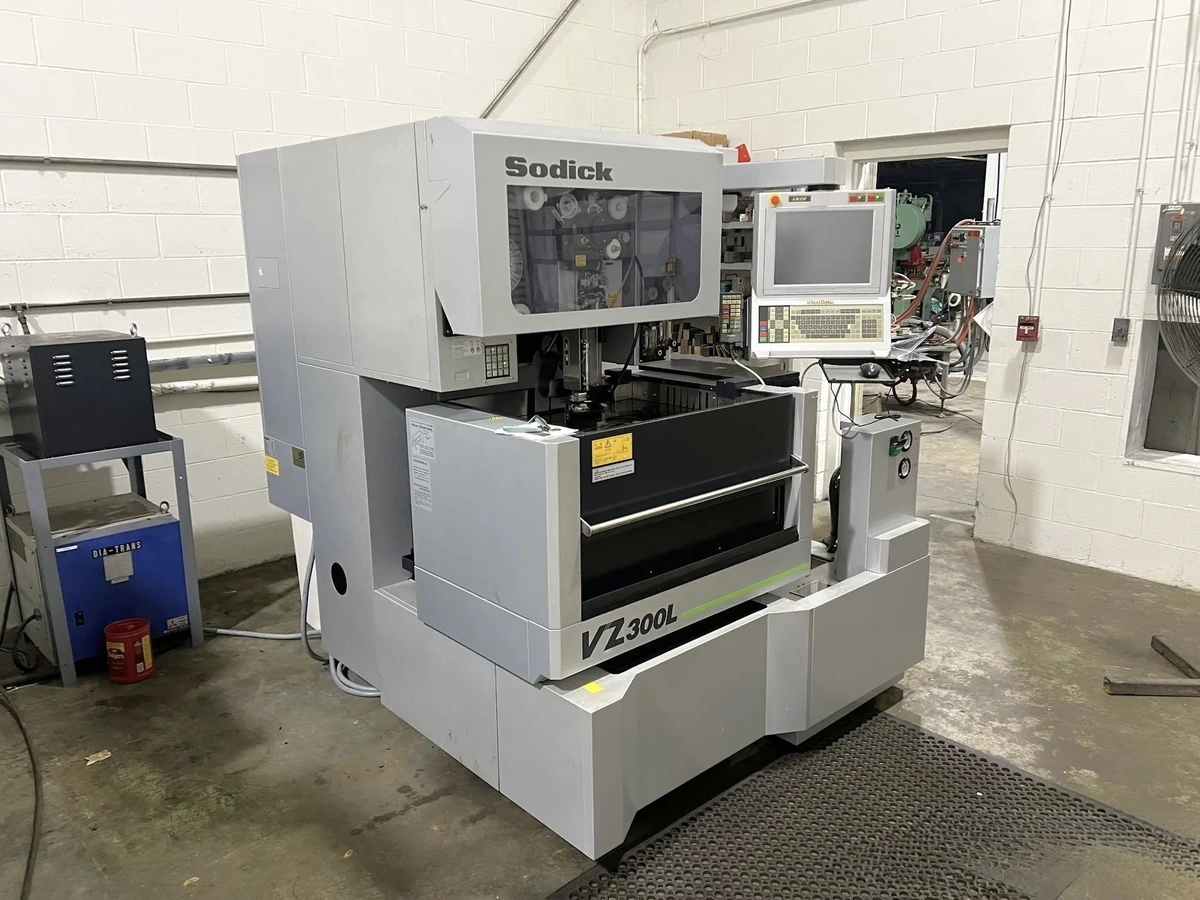

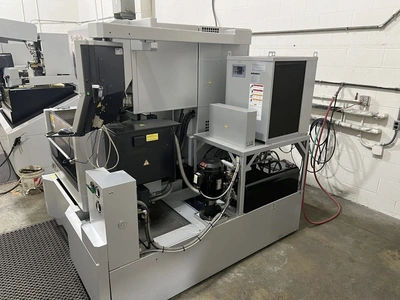

2015 SODICK VZ300L LINEAR DRIVE WIRE EDM | Stock #4578
Have one to sell?
ConditionUsed
1 available
The 2015 Sodick VZ300L Linear Drive Wire EDM delivers exceptional precision, speed, and surface finish for demanding toolroom and production applications. Featuring Sodick's renowned linear motor technology, this high-performance wire EDM provides outstanding accuracy, reduced maintenance, and superior positioning control. Ideal for complex mold, die, and precision component manufacturing, the VZ300L is a proven solution for shops looking to increase productivity while maintaining tight tolerances.

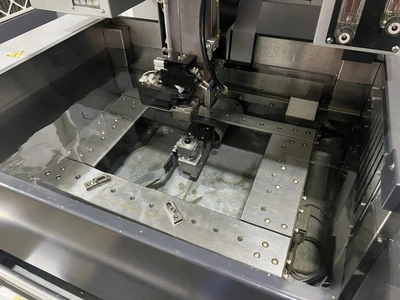

TANK SIZE 31.88" X 25.59"
MAX PART WEIGHT 1,200 lb
X-AXIS TRAVEL 13.77"
Y-AXIS TRAVEL 9.84"
Z-AXIS TRAVEL 8.66"
U & V AXIS TRAVEL 3.14
MAX TAPER ANGLE +/- 15 DEG
WIRE DIAMETER .0059 - .011"
Dimensions 27.95" X 81.49" X 70.86"
Weight 5,280 LBS
LINEAR MOTORS (X/Y/Z AXES)
ABSOLUTE LINEAR SCALE (X/Y/Z AXES)
CERAMIC COMPONENTS

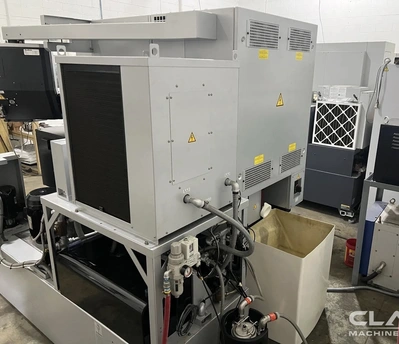

LINEAR MOTOR COOLING UNIT
LN2W GENERATOR
SODICK FINE CORNER CONTROL
FTII (FINE PICK-UP FUNCTION)
SUPER JECT AWT (AUTOMATIC WIRE THREADER)
LAN INTERFACE
USB PORT
*** MACHINE IS IN PLANT, UNDER POWER. AVAILABLE FOR IMMEDIATELY PURCHASE.
NEW PRICE FOR ABOVE EQUIPPED MACHINE IF PURCHASED NEW: $210,000
