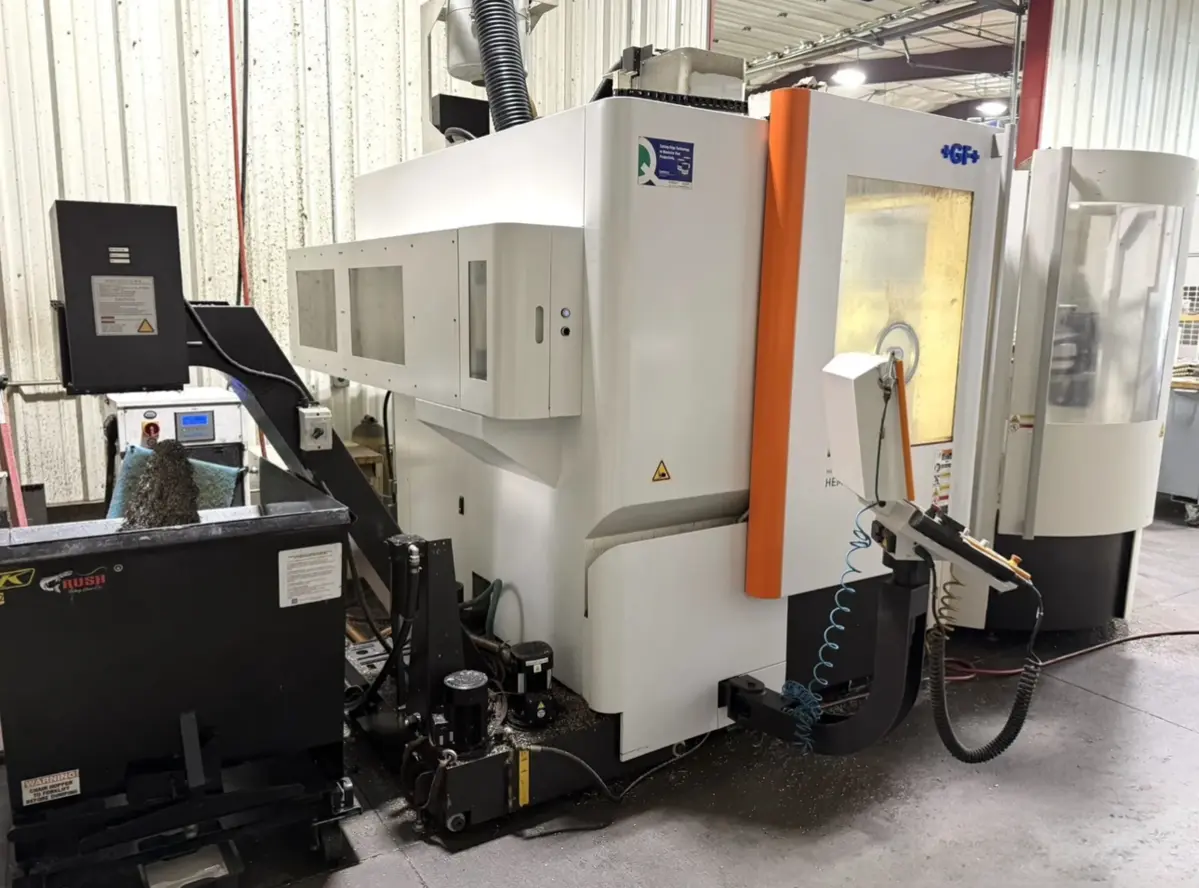

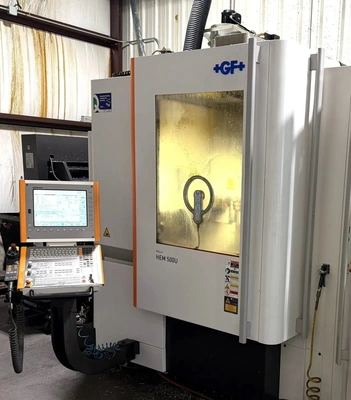

2014 +GF+ Mikron HEM 500U 5-Axis Machining Center with 5-Pallet System
Boost productivity with this 2014 +GF+ Mikron HEM 500U, a high-performance 5-axis vertical machining center designed for precision manufacturing and unattended production. Equipped with a 5-pallet automatic pallet changer, this machine delivers exceptional flexibility, reduced setup times, and maximum spindle utilization. Renowned for its accuracy, rigidity, and reliability, the HEM 500U is an excellent solution for aerospace, medical, mold & die, and high-precision production environments.

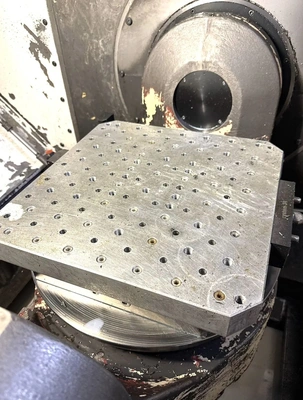

PLATTER DIAMETER 19.69"
TABLE LOAD CAPACITY 661 lb

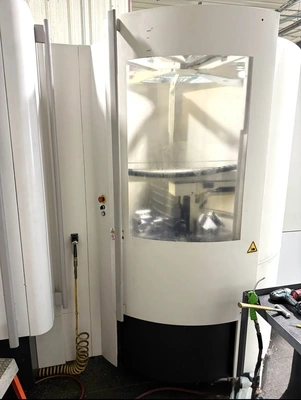

NUMBER OF PALLETS 5
X-AXIS TRAVEL 19.69"
Y-AXIS TRAVEL 17.71"
Z-AXIS TRAVEL 15.75"
A-AXIS (TILT) TRAVEL –65° / +110°
C-AXIS (ROTATION) TRAVEL 360°
SPINDLE SPEED 20,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 30
RAPID TRAVERSE RATE 1181 ipm
Dimensions 105" x 128" x 123"
Weight 14,330 lbs
Equipped With

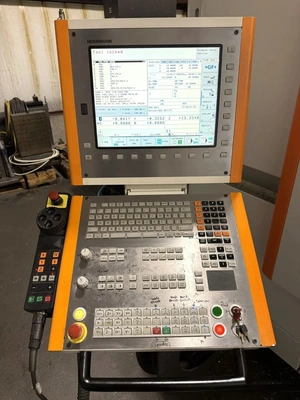

HEIDENHAIN iTNC 530 FS CNC CONTROL
5-AXIS (3+2)

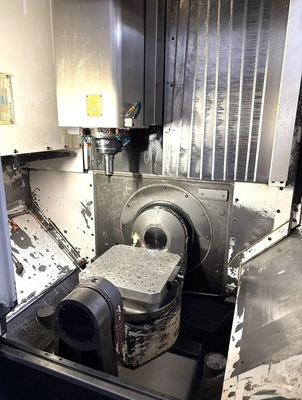

HEM ROTARY TILTING TABLE

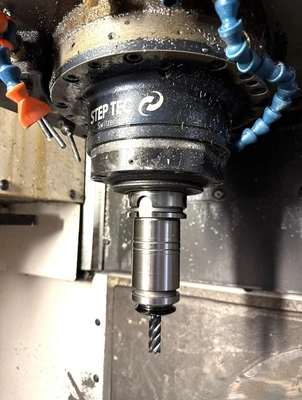

20,000 RPM SPINDLE
40 POSITION AUTOMATIC TOOL CHANGER
THROUGH SPINDLE COOLANT (300 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM
BLUM LASER TOOL SETTER
OIL MIST SPRAY
MPG HANDWHEEL CONTROL
SPINDLE CHILLER
AUTOMATIC LUBRICATION SYSTEM
COOLANT TANK
COOLANT FILTRATION SYSTEM
CHIP CONVEYOR
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY 416 STAINLESS STEEL

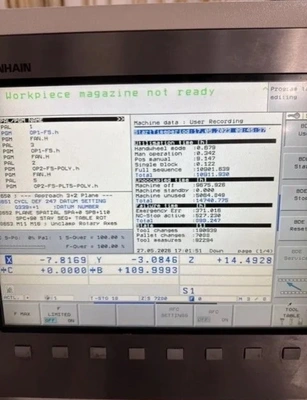

** AS OF JUNE 3, 2026 - TOTAL UTILIZATION TIME: 10,911 HOURS
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
