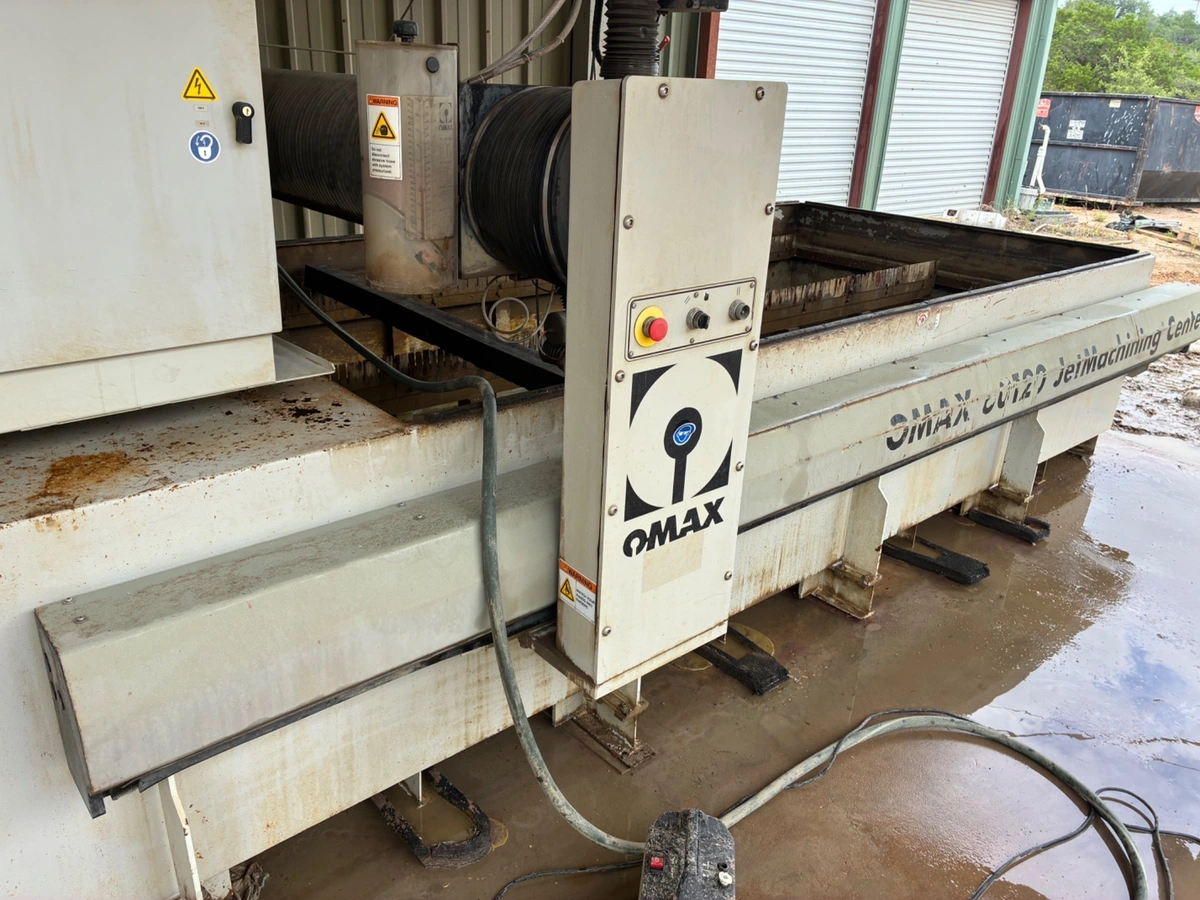

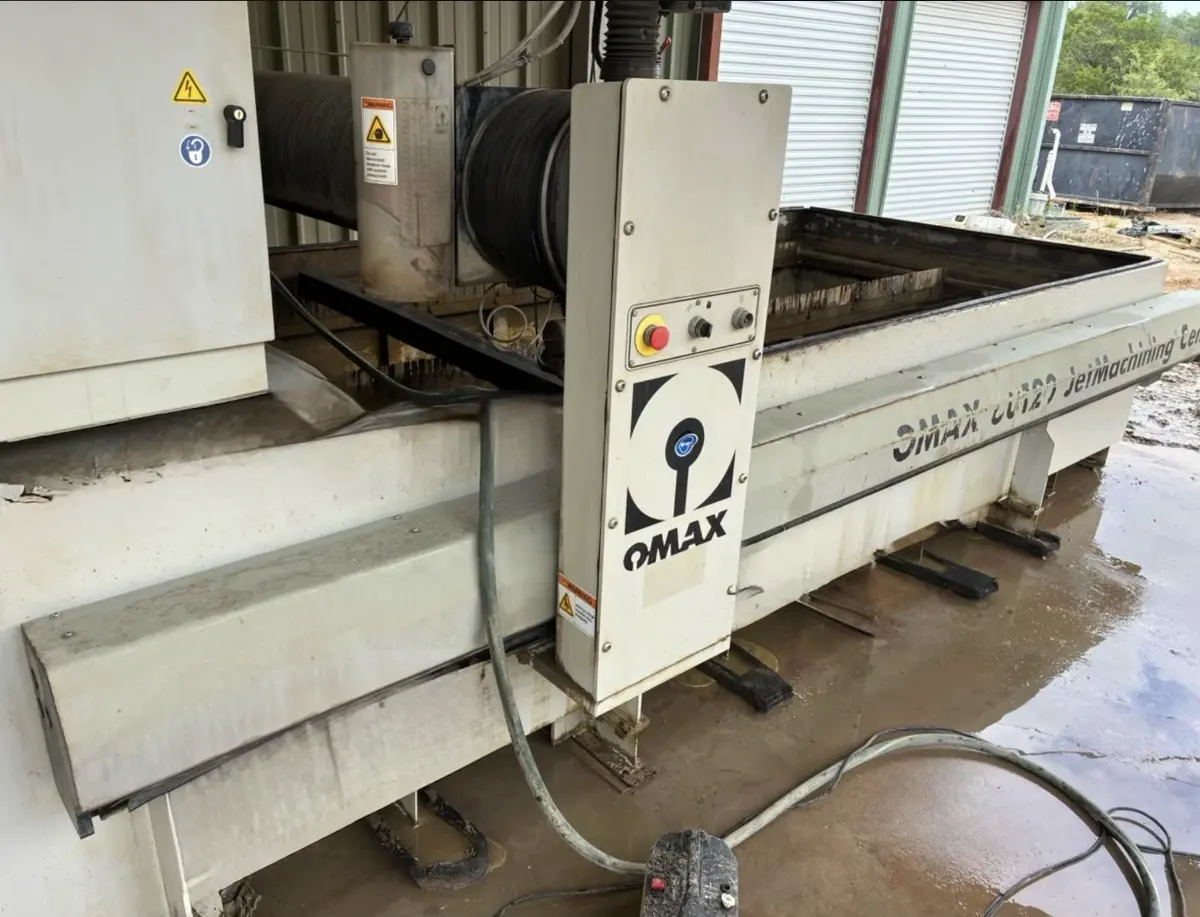

Omax 60120 CNC Waterjet Cutter | Stock #4572
Have one to sell?
ConditionUsed
1 available
The Omax 60120 Waterjet is a high-performance CNC cutting system designed for precision cutting across a wide range of materials, including steel, aluminum, stainless, titanium, stone, glass, plastics, and composites. Featuring a large 60" x 120" cutting envelope, this versatile machine delivers exceptional accuracy with no heat-affected zone, making it ideal for demanding fabrication and manufacturing applications. A proven solution for job shops and production environments, this well-maintained used Omax 60120 offers an excellent opportunity to add reliable, cost-effective waterjet cutting capacity to your operation.
Table Size: 60" x 120" (1524 mm x 3048 mm)
X-Axis Travel: 126" (3,200 mm)
Y-Axis Travel: 62" (1,575 mm)
Z-Axis Travel: 8" (203.2 mm)
Maximum Cutting Pressure: 60,000 PSILinear
Positional Accuracy: ± 0.001" (±0.0254 mm)
Repeatability: ± 0.001" (±0.0254 mm)
Pump Options: 30 HP, 40 HP, 50 HP, or 100 HP
Machine Dimensions: Varies by configuration, but an average footprint is roughly 225" L × 110"
WShipping Weight: Approximately 11,000 lbs (varies with accessories like A-Jet or Tilt-A-Jet)
EnduroMax P4060V Intensifier Pump
Tilt-A-Jet Taper Compensating Cutting Head
Intelli-MAX Software
Rapid Water Level Control
**To the best of our knowledge all details listed above are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase**
