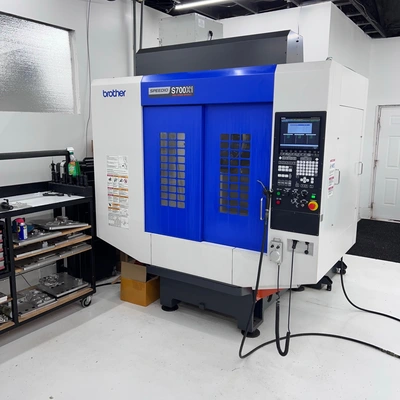

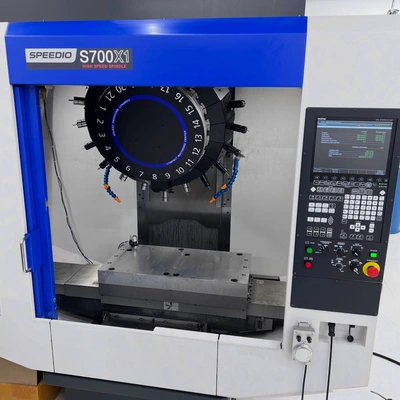

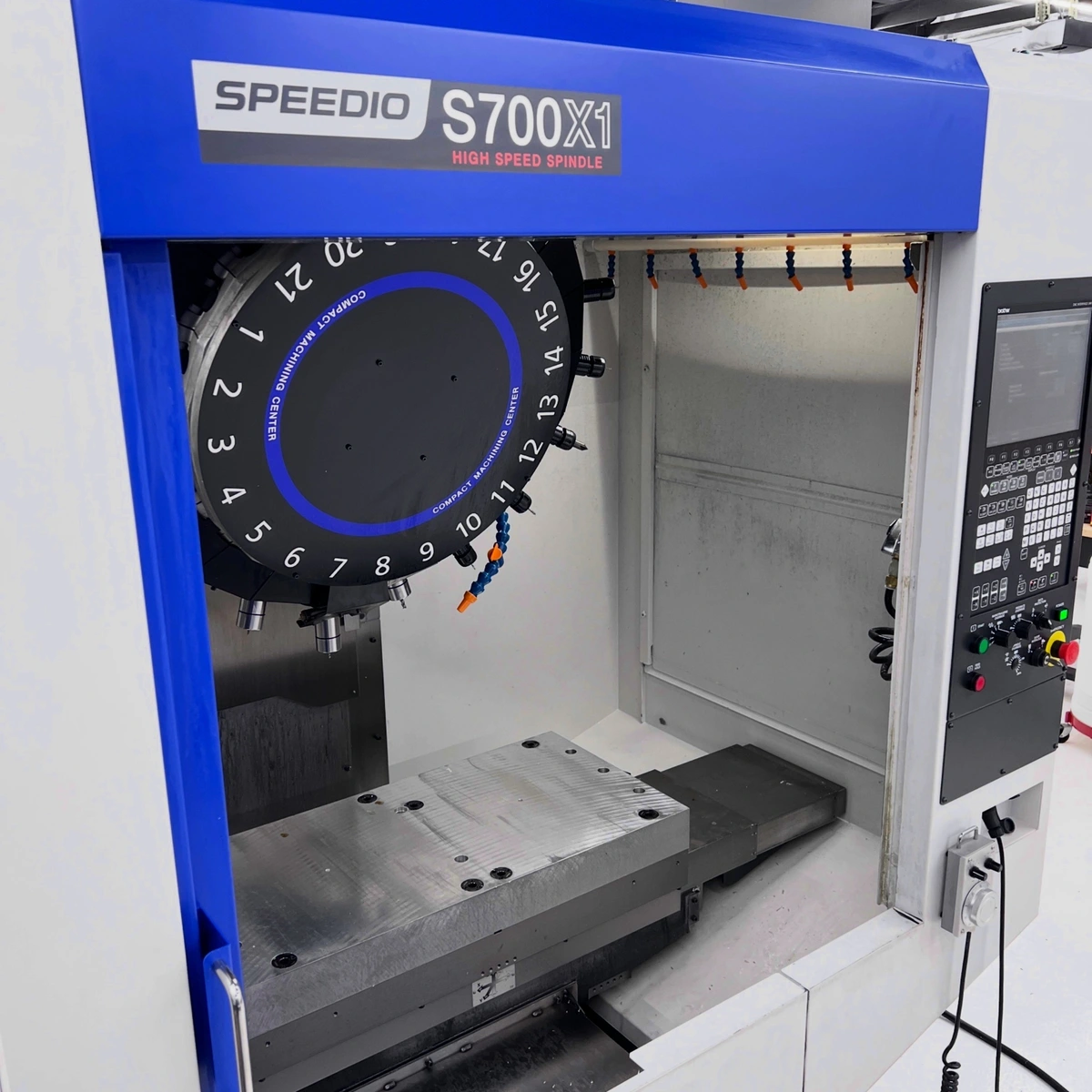

2020 Brother Speedio S700X1 Vertical Machining Center | Stock #4564
Have one to sell?
ConditionUsed
1 available

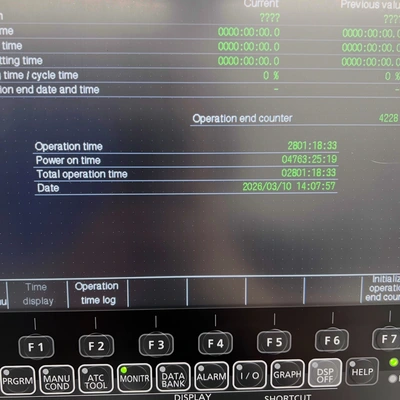

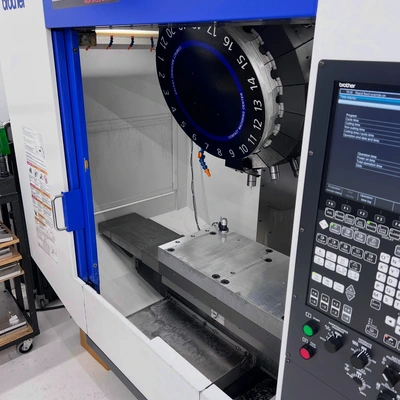

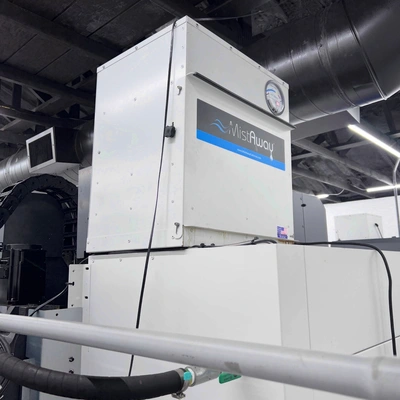

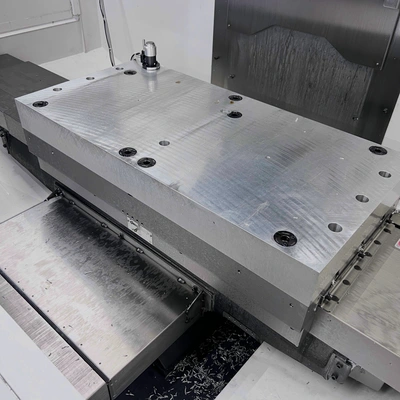

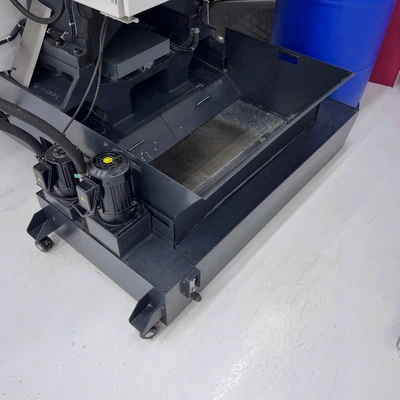

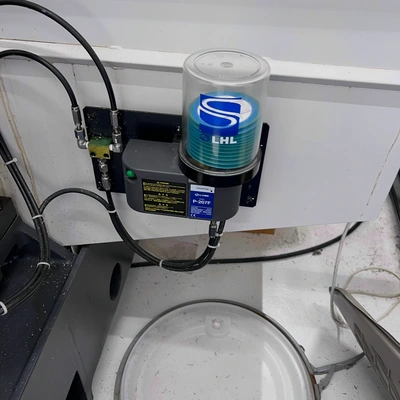

27,000 RPM spindle 2,800 hours 03/2020 build date Cut aluminum and plastic only its entire life Original machine table has never been used Table was protected with LPS-3 and covered with a fixture plate from new Machine Specs: Brother C00 control with built-in PLC 27,000 RPM spindle 11.8 / 8.4 HP spindle motor BT30 taper 21-tool drum ATC Travels: 27.6" x 15.7" x 11.8" Table: 31.4" x 15.7" Rapids: X/Y 1,969 IPM / Z 2,205 IPM Spindle taper air blast Auto grease lubrication system 150L coolant tank with chip shower High Accuracy Mode BII Safety door interlock system Manual pulse generator 2-light work light kit Shower gun Metrol TM26D-01 tool setter with 60 mm rise Top cover MistAway MA700C coolant mist collector, 700 CFM
X-Axis Travel
27.6"
Y-Axis Travel
15.7"
Z-Axis Travel
11.8"
Spindle Speed
27,000 RPM
Spindle Taper
BT 30
Tool Magazine Capacity
21 ATC
Wireless Intuitive Probing System (WIPS) - Renishaw
Brother C00 Control
Coolant
Standard Coolant System
