2016 AMADA HG1003ARS, ROBOTIC BENDING CELL | Stock #4560
Have one to sell?
ConditionUsed
1 available

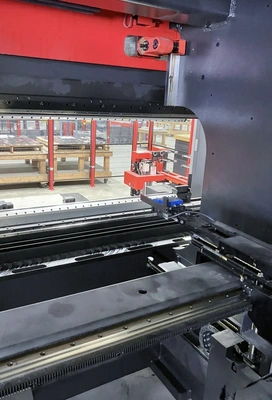

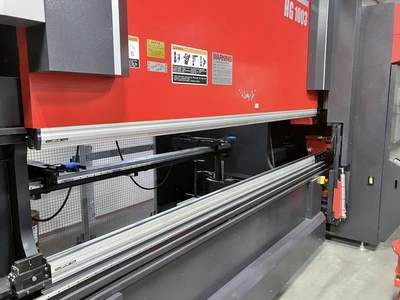

Available for immediate purchase, this 2016 AMADA HG1003ARS Robotic Bending Cell combines a 100-ton HG series press brake with integrated robotic automation for high-precision, unattended bending production. Equipped with AMADA’s Automatic Tool Changer (ATC), 7-axis robotic handling system, automatic gripper changer, and AMNC 3i touchscreen control, the system streamlines setup, reduces labor requirements, and maximizes throughput for complex sheet metal components. Designed for high-mix, low-volume manufacturing, the HG1003ARS delivers exceptional accuracy, repeatability, and productivity while minimizing downtime between jobs. Well-maintained and ready for inspection.
TONNAGE 100 T
BENDING LENGTH 120.5"
TABLE LENGTH 122.4"
DISTANCE BETWEEN HOUSINGS 106.3'
MAX STROKE 9.8"
THROAT 17.7"
OPEN HEIGHT 23.5"

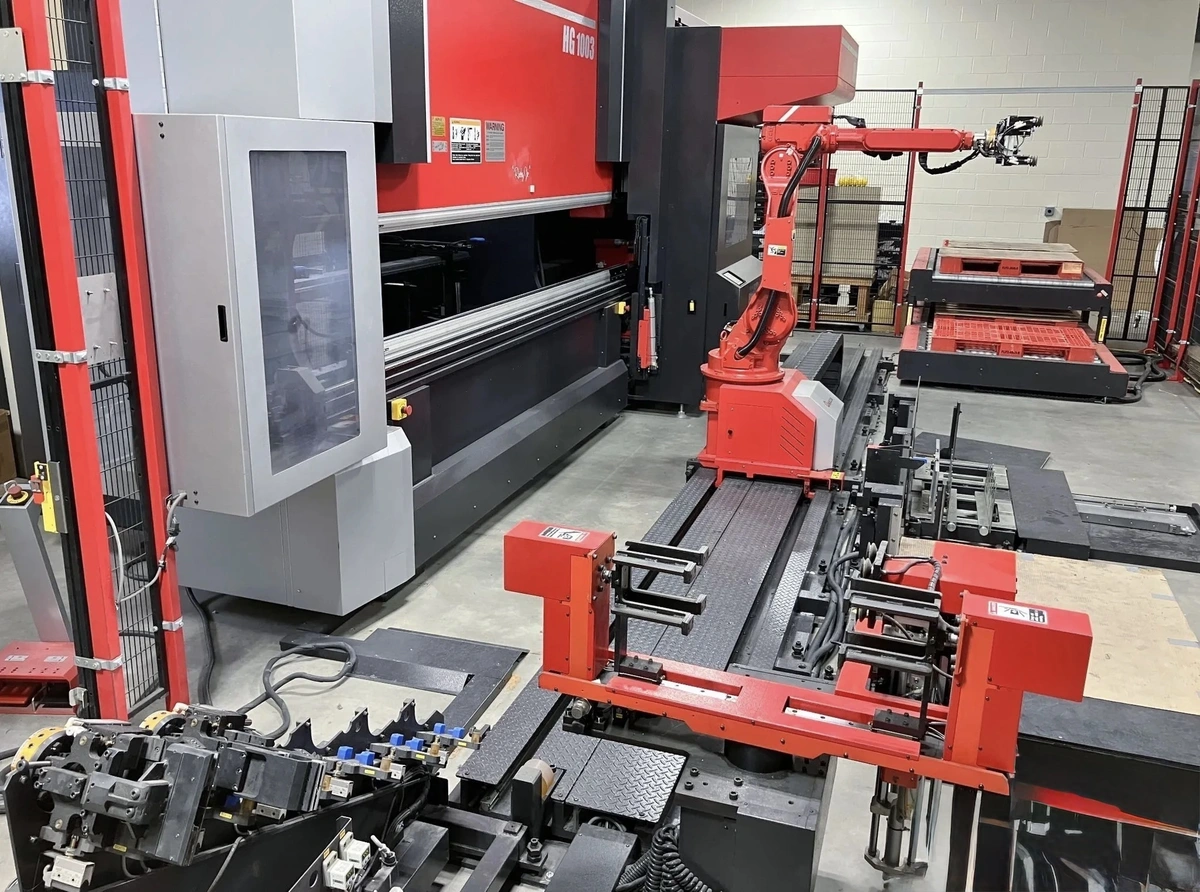

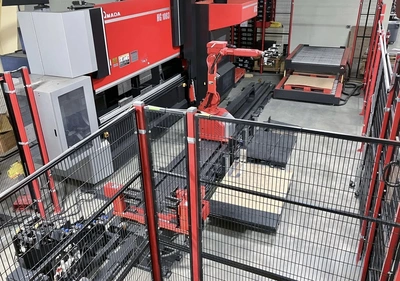

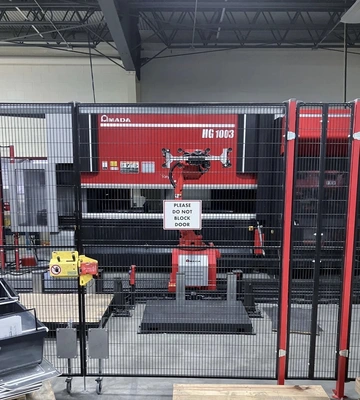

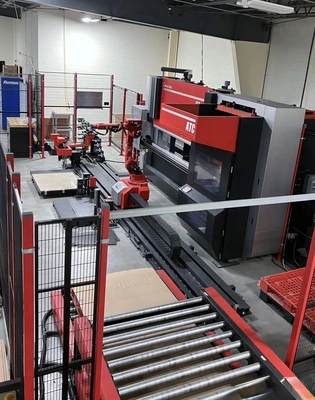

ROBOTIC BENDING CELL

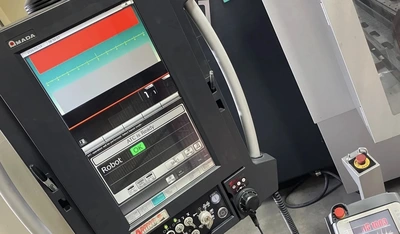

AMADA AMNC 3i CONTROL (TOUCH SCREEN

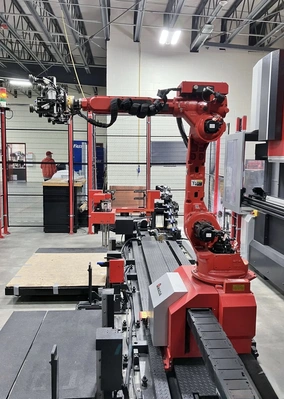

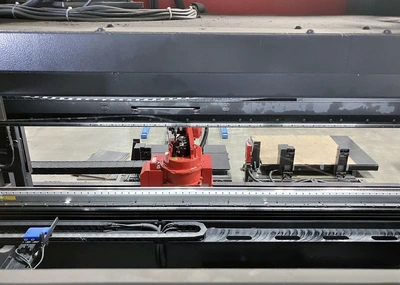

7-AXIS (6 AXES OF MOTION & 1 AXIS OF TRAVEL) AMADA HGROBOT020/YASKAWA DX100 ROBOTIC ARM (44LB PAYLOAD)

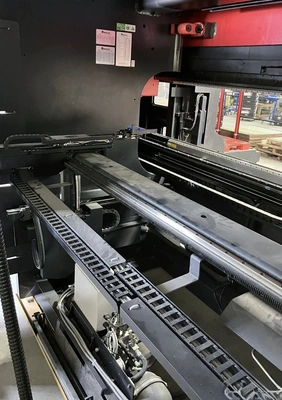

AUTOMATIC TOOL CHANGER (CAPABLE OF STORING UP TO 15 PUNCH STOCKERS & 18 DIE STOCKERS)

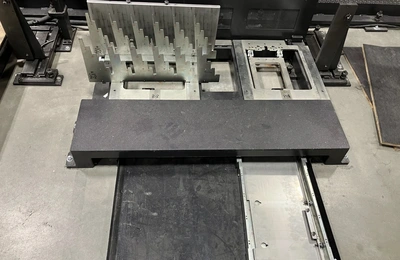

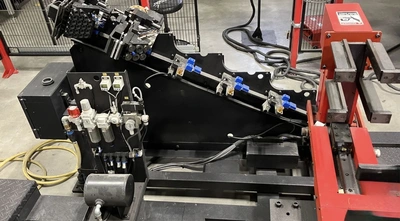

AUTOMATIC GRIPPER CHANGER

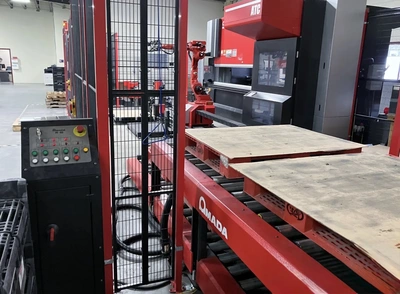

ROLLER TABLE/CONVEYOR FOR FINISHED PARTS (AMADA PF-A3)
AN ASSORTMENT OF DIES & PUNCHES (FULL LIST AVAILABLE UPON REQUEST)

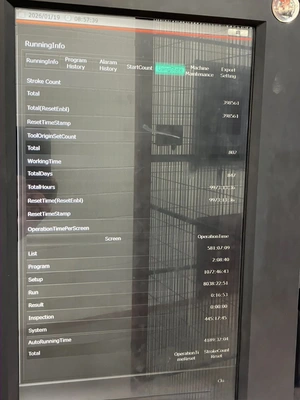

** AS OF FEBRUARY 2026, RUN TIME – 4,189 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $850,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** SERVO-HYDRAULIC (HYBRID) PRESS BRAKE
** HYBRID DRIVE SYSTEM THAT COMBINES THE HIGH SPEED & PRECISION OF ELECTRIC MOTOR WITH THE POWER OF HYDRAULC CYCLINDERS
