2021 OKUMA MULTUS U30002SW/1500 | Stock #4559
Have one to sell?
ConditionUsed
1 available
The 2021 OKUMA MULTUS U3000 2SW/1500 is a premium multitasking CNC turning center engineered for high-precision, done-in-one machining. Equipped with dual saddles, a sub-spindle, B-axis milling head, and automatic tool changer, this machine combines turning, milling, drilling, and complex 5-axis machining capabilities in a single setup. With a 1,500 mm machining length, powerful spindle performance, and exceptional process flexibility, the MULTUS U3000 2SW/1500 is ideal for manufacturers seeking to reduce cycle times, improve accuracy, and maximize productivity on complex, high-value components. Powered by Okuma’s renowned OSP control, it delivers the reliability, precision, and efficiency demanded in today's advanced manufacturing environments.

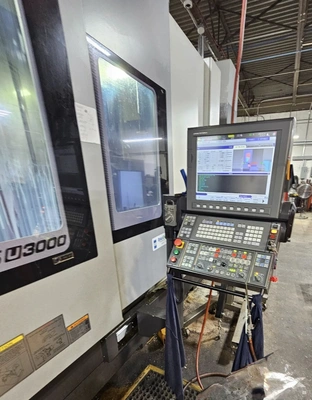

OKUMA OSP-P300SA-L THINC CONTROL

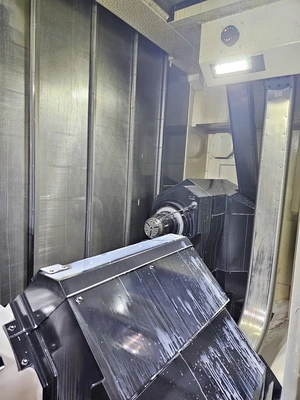

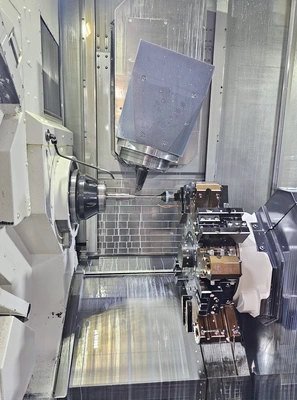

FULL 5-AXIS, CONTOURING B-AXIS MILLING SPINDLE (12,000 RPM, CAPTO C6)
Y-AXIS

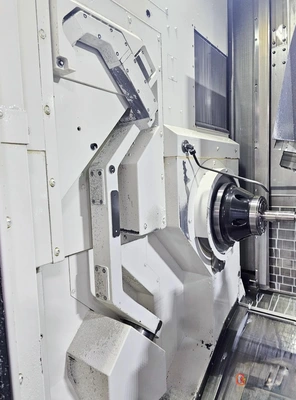

SUB SPINDLE
LOWER TURRET (STATIC)
BIG BORE (3.1” BAR CAPACITY – MAIN SPINDLE)
2-SPEED GEARBOX
ROYAL QG-80 COLLET CHUCK (MAIN)
ROYAL QG-65 COLLET CHUCK (SUB)
C-AXIS SYNC (BOTH SPINDLES)

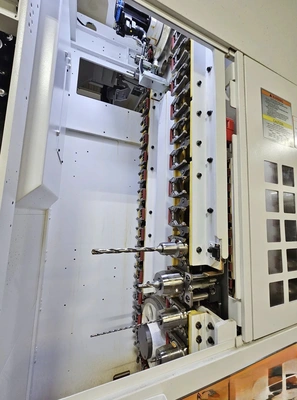

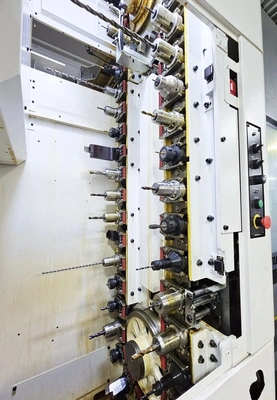

80-TOOL POSITIONS (CAPTO C6)
60”/1500MM BED LENGTH
RENISHAW RMP600 AUTO-GAUGING PROBE
AUTOMATIC TOOL PRESETTER

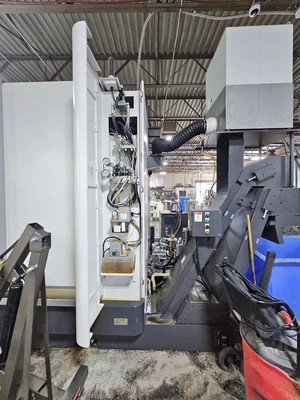

CHIP CONVEYOR

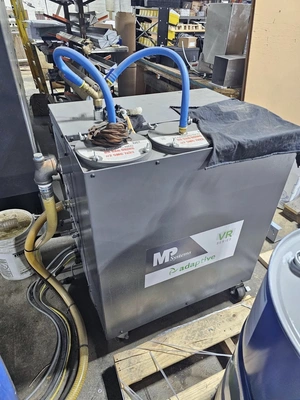

MP SYSTEMS (VF-8) HIGH-PRESSURE COOLANT UNIT
NIAGARA SHOWER COOLANT

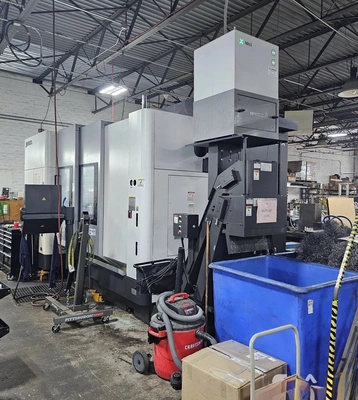

EXO-MIST MIST COLLECTOR
Y-AXIS GAUGING WITH SLOPE GAUGING
C-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
Z-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
SUPER NURBS (X+, Y+, Z+, C+, B)
ADVANCED ONE-TOUGH IGF
MULTI-EDGE LATHE TOOL INDEX FUNCTION
THERMO FRIENDLY CONCEPT (SPINDLES & CASTING)
NEGATIVE TOOL RADIUS COMPENSATION
GEOMETRUC ERROR COMPENSATION
GEOMETRIC ERROR GAUGING
TOOL CENTER POINT CONTROL II
STRIAGHTNESS COMPENSATION
COLLISION AVOIDANCE SYSTEM
(8) SETS OF SPARE M-CODES
SPINDLE FLUCTUATE
FIXTURE TRACKING
SYNCHRO TAPPING
SPINDLE SYNC TAP
ARC THREAD CUT
3D ANIMATION
ANIMATION
HI-CUT PRO
MAC MAN
(50) CAPTO C6 TOOL HOLDERS
MORE OSP OPTIONS THAN LISTED (OSP DATA CARD AVAILABLE, UPON REQUEST)

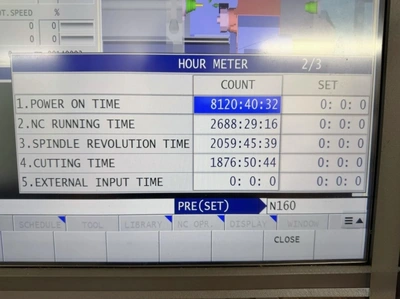

** AS OF JUNE 2026, CUTTING TIME – 1,876 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $950,000+
** MACHINE CUT PRIMARILY STAINLESS STEEL, PLASTIC & HASTELLOY

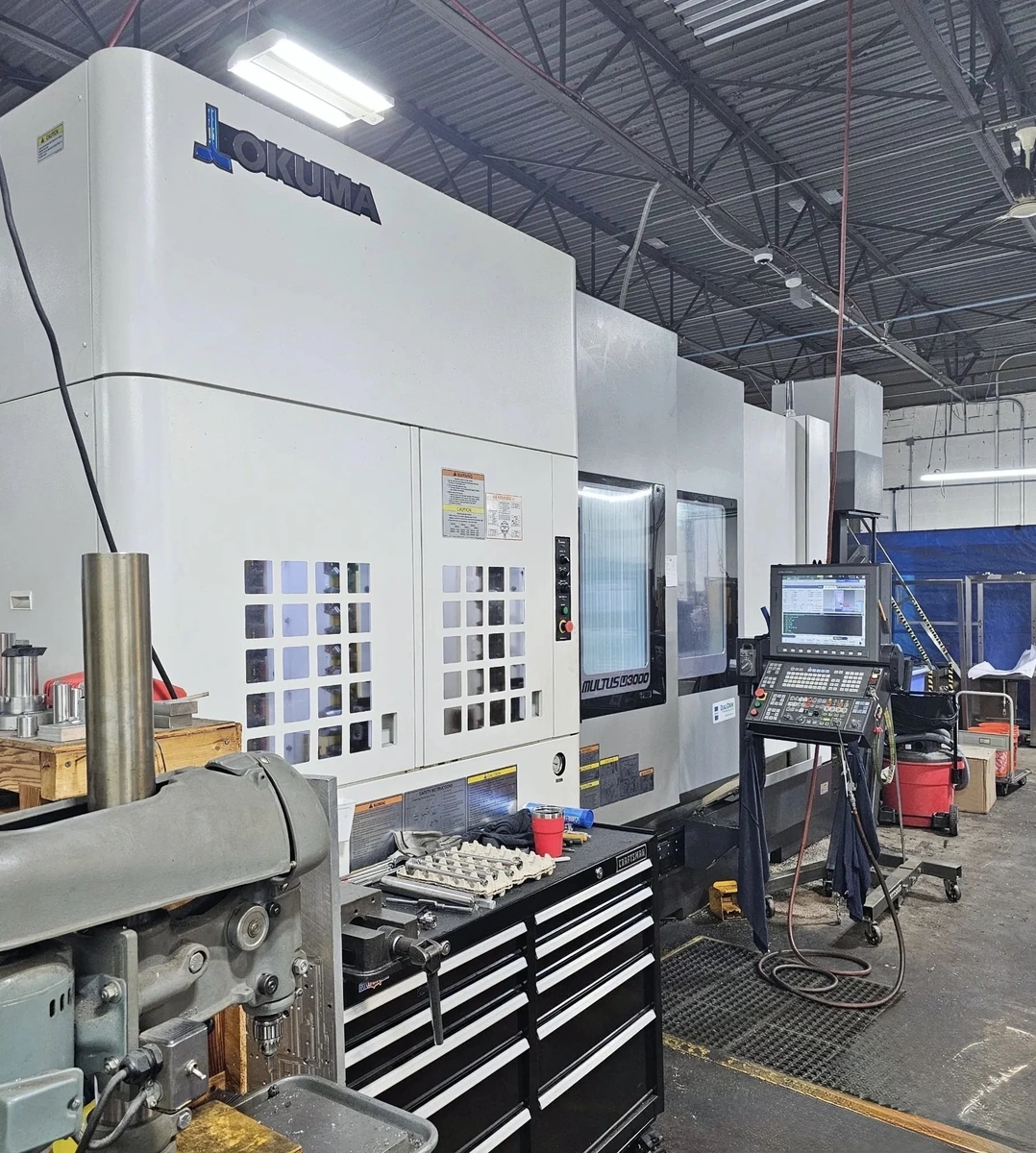

** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
SWING OVER BED 25.59"
MAX CUTTING DIAMETER 25.59"
MAX CUTTING LENGTH 59.06"
X-AXIS TRAVEL 25.39"
Y-AXIS Yes
Y-AXIS TRAVEL 9.84" (+/- 4.92")
Z-AXIS TRAVEL 62.99"
BAR CAPACITY 3.1"
SPINDLE NOSE A2-8
SPINDLE MOTOR 30 hp
SPINDLE SPEED 4,200 RPM
RAPID TRAVERSE RATE - X-AXIS 1,968 in/min.
RAPID TRAVERSE RATE - Y-AXIS 1,574 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,969 in/min.
SUB SPINDLE Yes
SUB SPINDLE - SPINDLE NOSE A2-6
SUB SPINDLE - SPINDLE MOTOR 30 hp
SUB SPINDLE - SPINDLE SPEED 5,000 RPM
SUB SPINDLE / W-AXIS TRAVEL 62.36"
B-AXIS SPINDLE MOTOR 30 hp
B-AXIS MILLING SPEED 12,000 RPM
B-AXIS SPINDLE TAPER CAPTO C6
B-AXIS TOOL POSITIONS 80
B-AXIS ROTATION 240 DEGREES (+210/ -30)
TURRET 2 CAPACITY 12
TURRET 2 - X-AXIS TRAVEL 9.25"
TURRET 2 - Z-AXIS TRAVEL 62.36"
