Haas HA2TS Twin Indexer With Tailstocks | Stock #4548
Have one to sell?
ConditionUsed
1 available

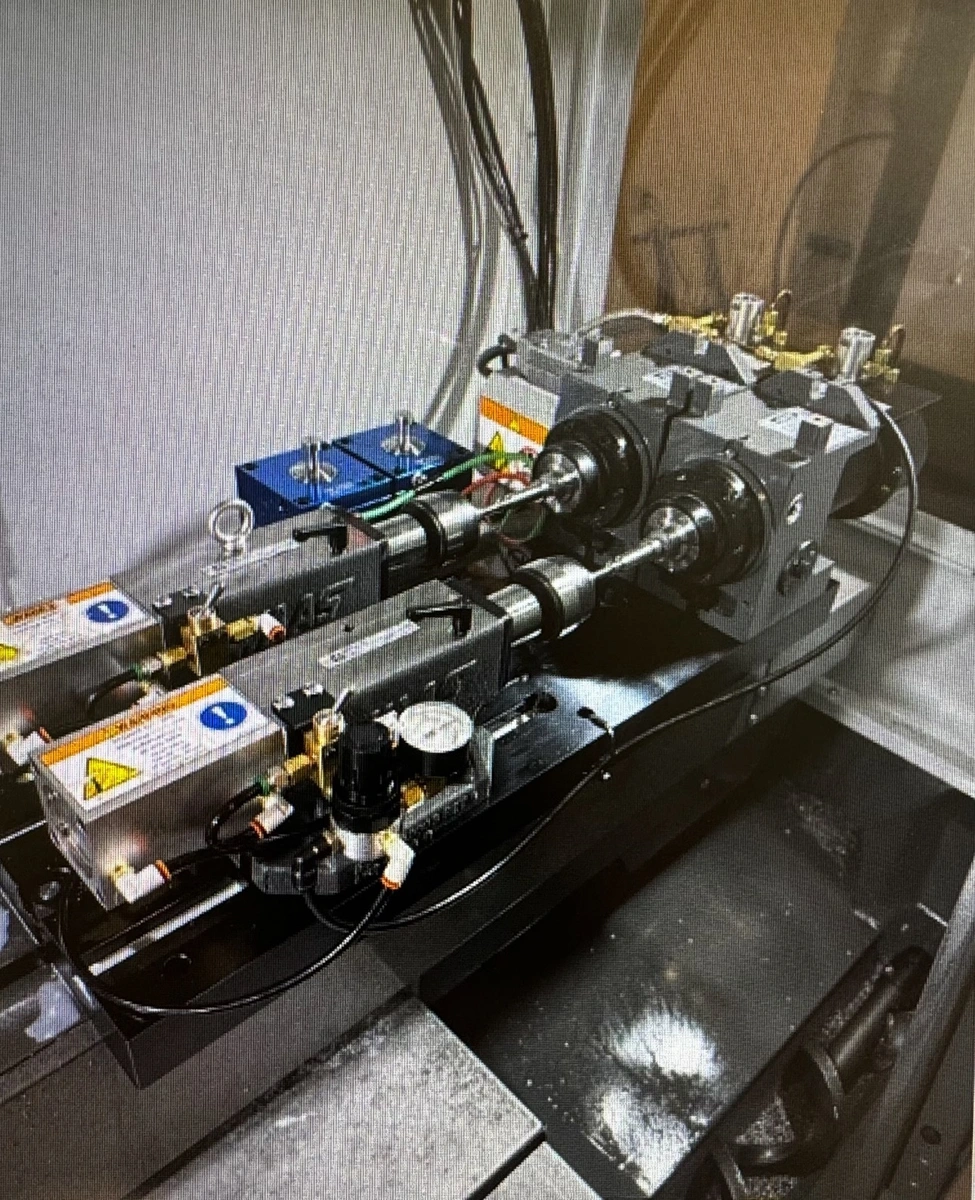

The HA2TS is a dual-spindle 5C system mounted on a plate with pneumatic tailstocks. Tailstock thrust must not exceed 800 lb (3559 N). Clamp your parts using standard 5C collets, or chuck them by threading 3-jaw chucks to the spindle noses.
General Specifications:
Spindle
Speed: 200 Degrees/Second
Torque: 25 Ft-Lb
Nose Thread: 2-3/16"
Runout Max: 0.0004"
Center Height: 5.875"
Collet Size: 5C
Gear Ratio: 60:1
Indexing
Accuracy (+): + 60 Arc-Sec
Repeatability: 10 Arc-Sec
Backlash: 50 Arc-Sec
Worm Gear Diameter: 2.8"
Machine Dimensions: 44" x 23" x 19"
Machine Weight: 420 lbs
* To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
5C Collets
Base Plate
Dual Tailstocks
