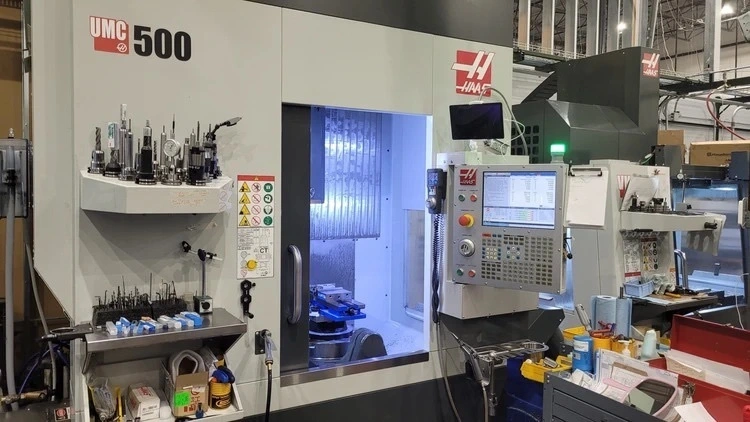

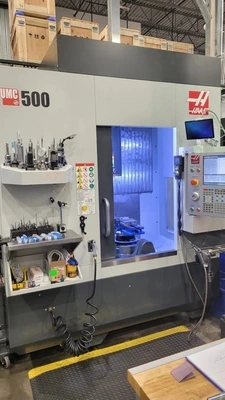

2020 HAAS UMC-500 Vertical Machining Center | Stock #4539
Have one to sell?
ConditionUsed
1 available
Well-maintained 2020 HAAS UMC-500 5-axis machining center featuring HAAS Next Generation Control, high-speed spindle, and integrated trunnion table. Ideal for complex, multi-sided parts with excellent precision, reliability, and productivity in a compact footprint. Perfect for aerospace, medical, automotive, and high-precision manufacturing applications.
Production-ready and an excellent value for shops looking to expand 5-axis machining capabilities.
TRAVELS S.A.E METRIC
X Axis 24.0 in 610 mm
Y Axis 16.0 in 406 mm
Z Axis 16.0 in 406 mm
Spindle Nose to Platter (~ max) 20.0 in 508 mm
Spindle Nose to Platter (~ min) 4.0 in 102 mm
SPINDLE S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled
B AXIS - TILT S.A.E METRIC
Travel 120 ° to 35- ° 120 ° to 35- °
Max Speed 50 °/sec 50 °/sec

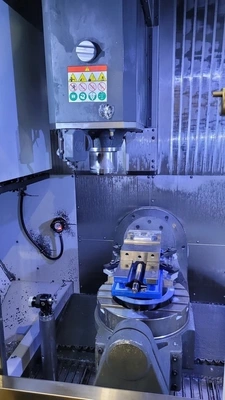

5 Axis Trunnion
Hennig Lift Up Chip Conveyor
Coolant Through Spindle
Remote Jog Handwheel

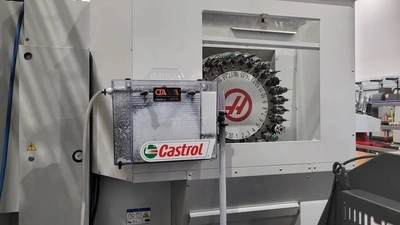

30 Position ATC

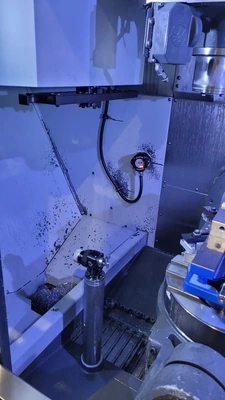

Probing
* All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.
