2016 HAAS UMC-750 5-AXIS CNC UNIVERSAL MACHINING CENTER | Stock #4530
Have one to sell?
ConditionUsed
1 available

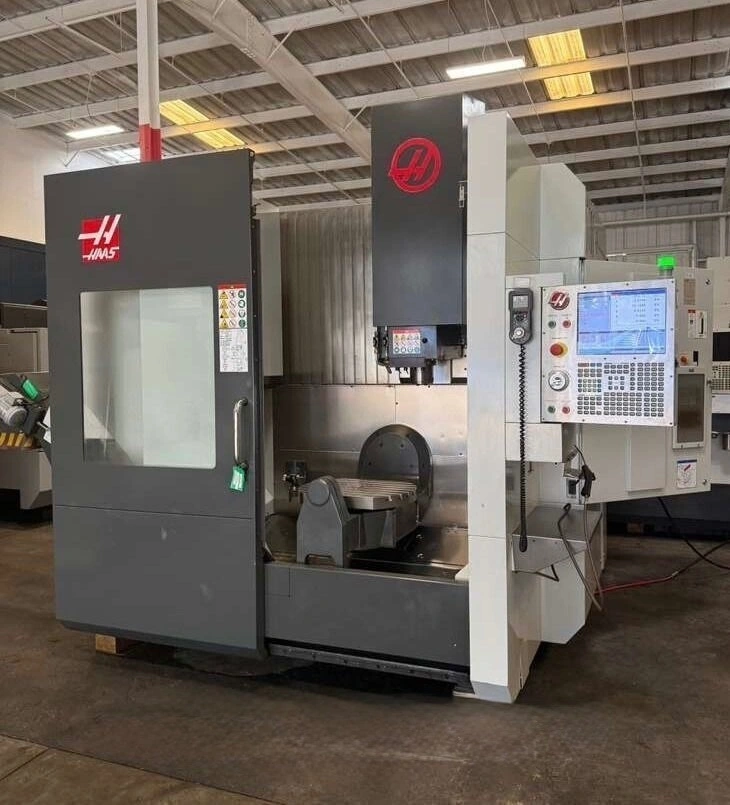

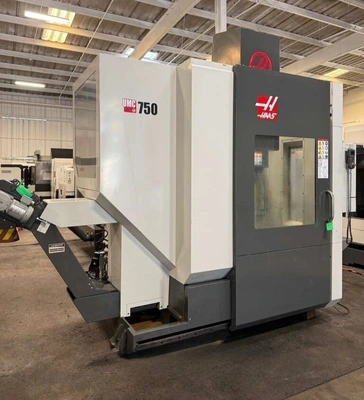

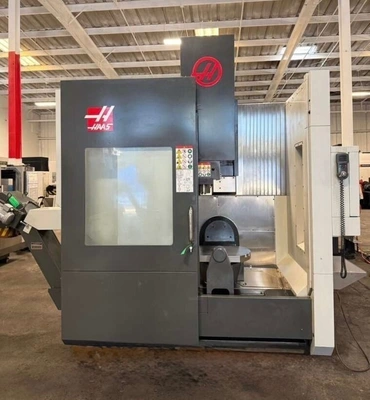

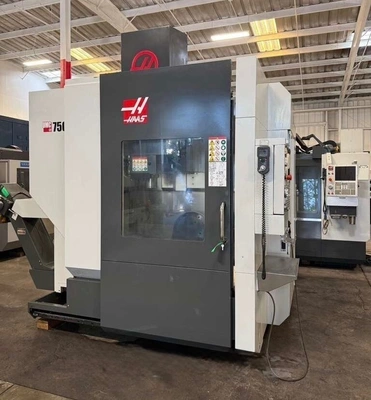

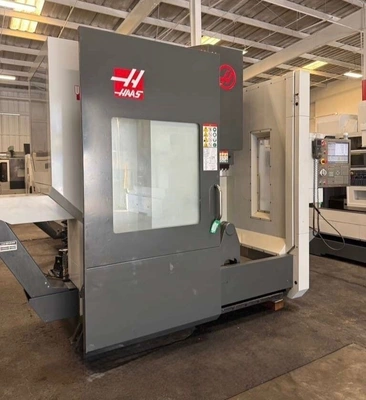

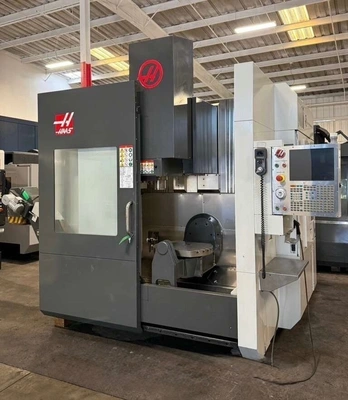

2016 HAAS UMC-750 5-Axis CNC Universal Machining Center featuring full simultaneous 5-axis capability for complex, high-precision machining. Equipped with HAAS CNC controls, integrated trunnion table, and excellent travel capacity, this machine is ideal for aerospace, medical, automotive, and production applications. Well maintained and ready for immediate operation, the UMC-750 delivers increased efficiency, reduced setups, and reliable HAAS performance at a fraction of new replacement cost.
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

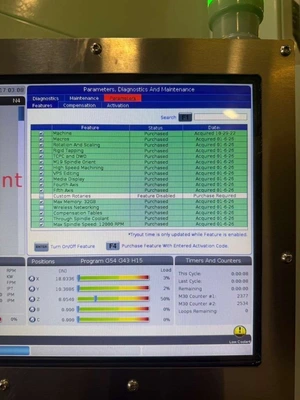

Features:

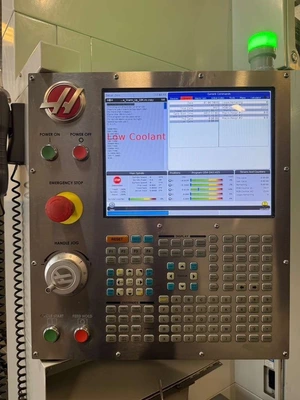

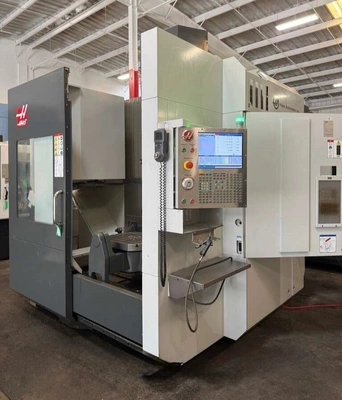

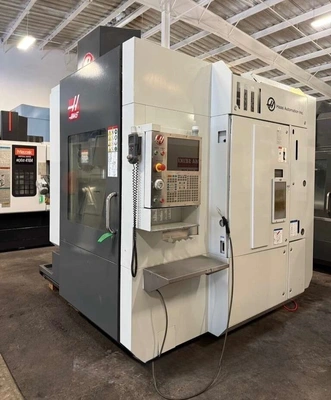

Haas CNC Control

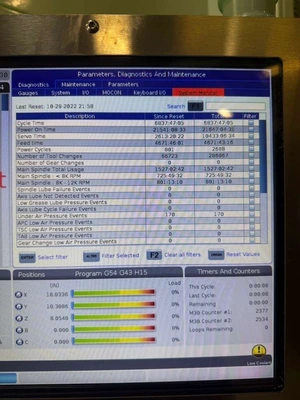

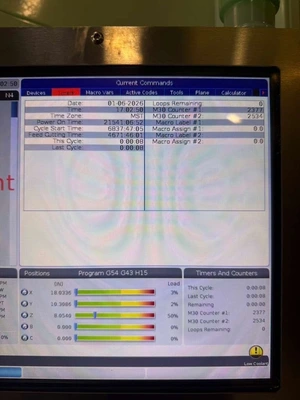

4,671 Hours Cutting Time
Haas Trunnion Table
30 HP High Torque Spindle
Remote Jog Handle
Rigid Tapping
Spindle Orientation
Macros
Rotation and Scaling
VPS Editing
Media Display M-Code
Compensation Tables
Coolant Tank
Travels:
X-Axis: 30″
Y Axis: 20″
Z Axis: 20″
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 900 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

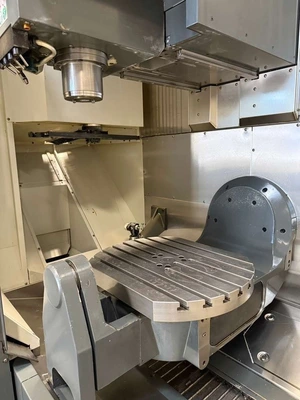

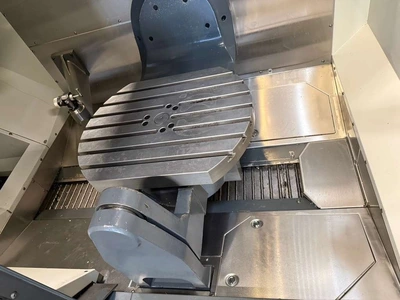

Trunnion Table:
Platter Diameter: 19.70″
Max Weight on Platter: 660 lbs
T-Slot Width: 0.626″ to 0.630″
Number of Std T-Slots: 7
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 40 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 12″
Tool-to-Tool Changing Time: 2.8 Seconds
General:
Air Required: 100 psi 4 scfm

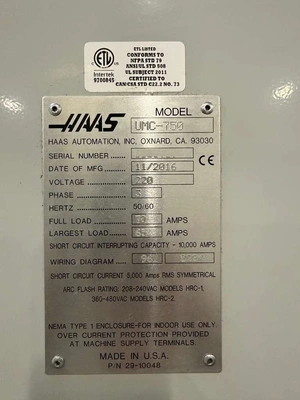

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 168″ x 92.5″ x 110″ High
Weight: 14,250 lbs.
12,000 RPM High Speed Spindle (Upgraded $11,195 Approx. value Included)
40 Station Automatic Tool Changer (Upgraded $11,995 Approx. value Included)

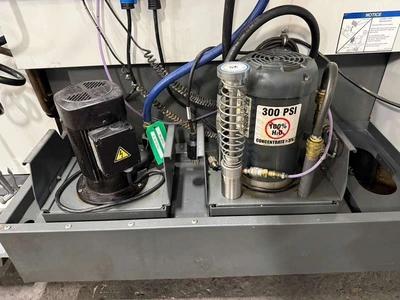

Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included)
High Speed Machining (Upgraded $3,895 value Included)
Renishaw Probing System (Probe Needed)

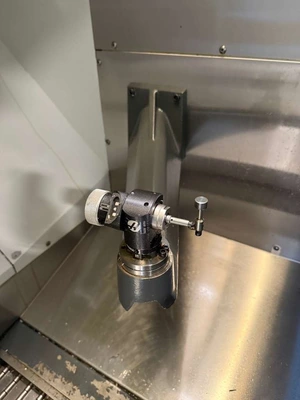

Tool Presetter
Programmable Coolant Nozzle (Upgraded $2,395 value Included)
32 GB Expanded Memory (Upgraded $1,695 value Included)

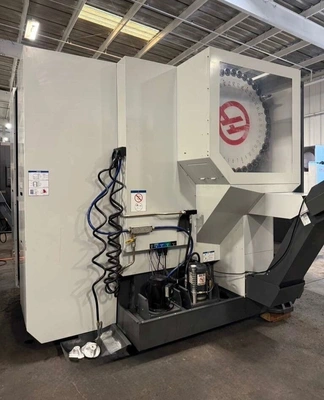

Belt-Type Chip Conveyor (Upgraded $7,995 value Included)
