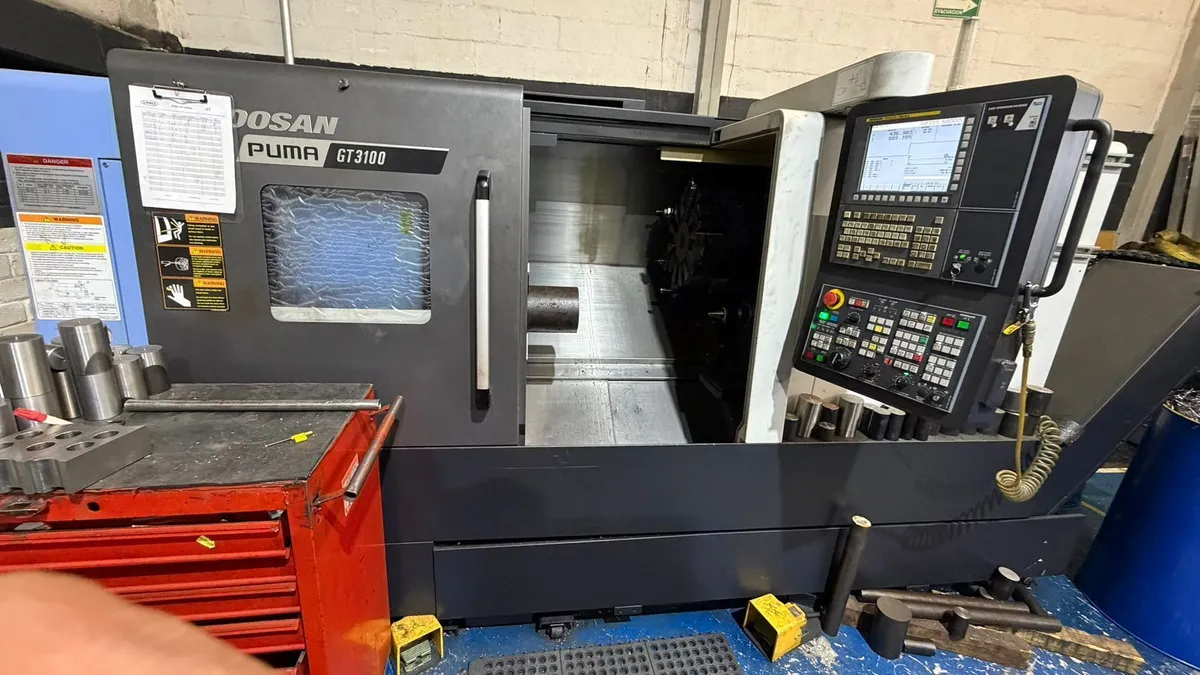

2018 Doosan Puma GT-3100 (Located in Queretaro, Mexico) | Stock #4527
Have one to sell?
ConditionUsed
1 available
The 2018 Doosan Puma GT-3100 is a versatile and high-performance CNC turning center designed for precision, reliability, and efficient production. Built with a rigid construction and powerful spindle, the GT-3100 delivers excellent surface finishes and consistent accuracy across a wide range of machining applications. Well maintained and production ready, this machine is ideal for shops seeking dependable turning capacity with proven Doosan performance.
Capacity:
Maximum Turning Diameter: 18.9″
Maximum Swing over Bed: 28.3″
Maximum Swing Over Saddle: 23.2″
Maximum Turning Length: 29.7″
Maximum Bar Capacity: 4.0″
Travels:
X-Axis Travel:10.2″
Z-Axis Travel: 32.7″
Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.53″
Spindle Speed: 2800 RPM
Spindle Motor: 45 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tool Holders Type: BMT
Tailstock:
Tailstock Travel: 26.8″
Quill Diameter: 3.9″
Quill Travel: 3.9″
Taper Size: MT-4
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 161″ x 83″ x 76″ High Approx.
Machine Weight :12,100 lbs. Approx.
Equipped With:

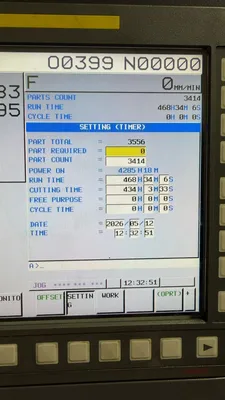

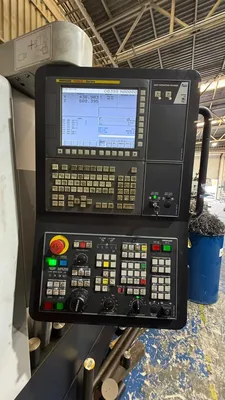

Fanuc i series CNC Control
Boxed Way Design

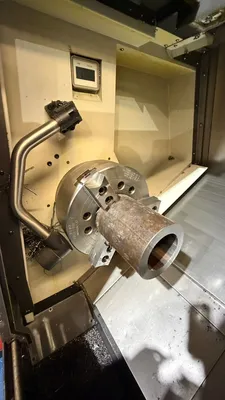

12″ 3 Jaw Hydraulic Chuck
A2-11 2 Speed Gear Head Spindle
12 Station Automatic Turret
Tool Presetter
Programmable Tailstock
Rigid Tapping
PCMCIA Card Interface
USB Port
Coolant Tank with Pump
Chip Conveyor
EZ Guide I
Assorted Tool Blocks
Foot Switch
*It is the buyer's responsibility to confirm specs and equipment.
