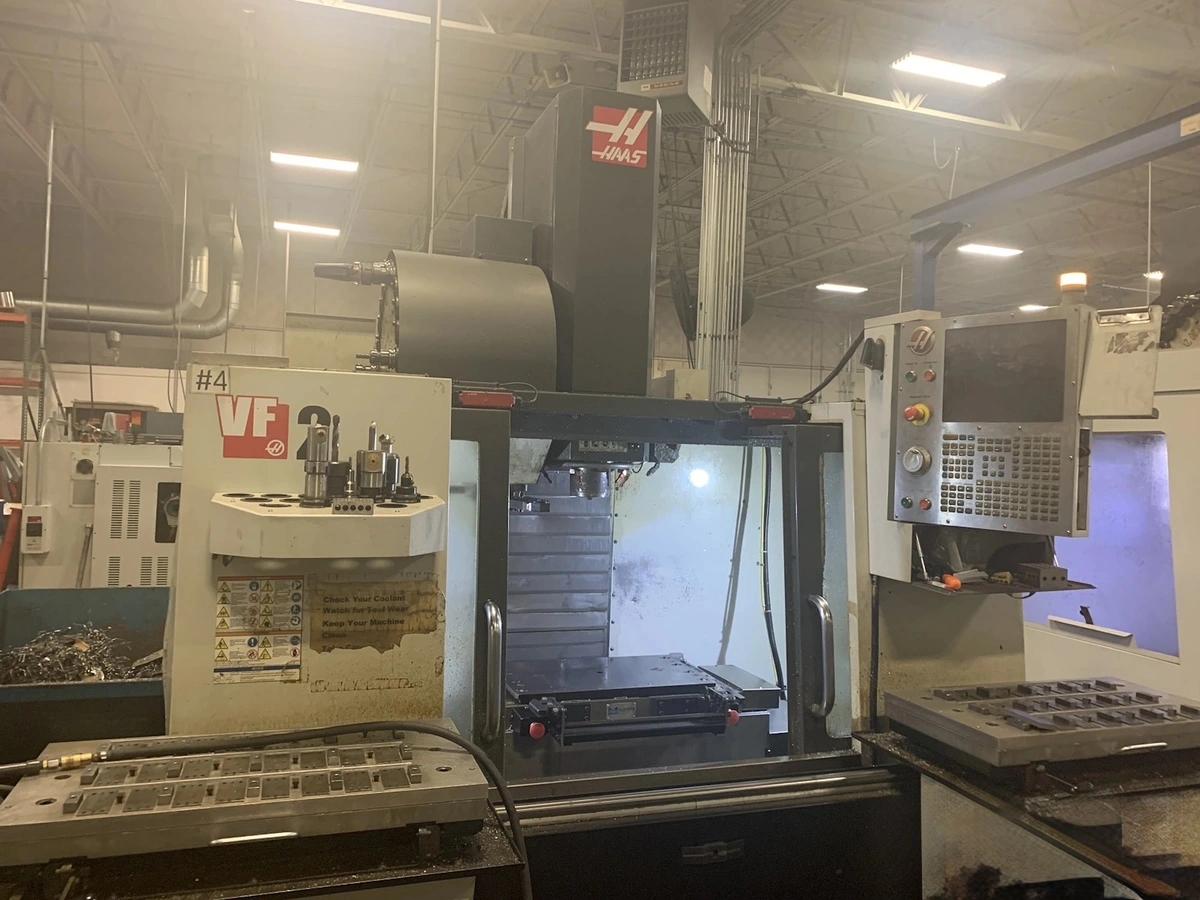

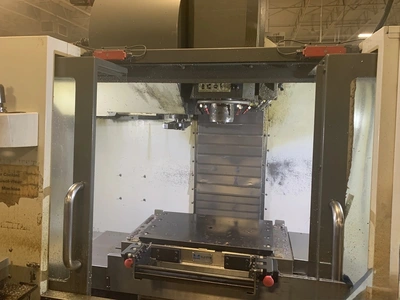

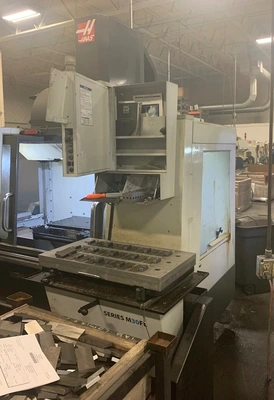

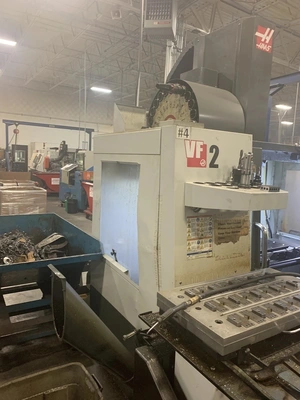

2014 HAAS VF-2 CNC VERTICAL MACHINING CENTER | Stock #4513
Have one to sell?
$24,000.00 USD
ConditionUsed
1 available
The 2014 HAAS VF-2 CNC Vertical Machining Center is a reliable, high-performance machine built for precision and efficiency. Featuring a powerful direct-drive spindle, rigid cast-iron construction, and a generous work envelope, it handles a wide range of machining tasks with ease. The user-friendly HAAS control and automatic tool changer keep production running smoothly with minimal downtime. A proven, cost-effective solution for any shop looking to boost capability and output.
TRAVELS
-X AXIS: 30"
-Y AXIS: 16"
-Z AXIS: 20"
MAX TABLE LOAD: 3,000 LBS
SPINDLE MOTOR: 20 HP
SPINDLE SPEED: 8,100 RPM
SPINDLE TAPER: 40 CT
TOOL CHANGER: 24 ATC
MAX TORQUE: 90 FT-LBF
MAX TOOL DIAMETER: 3.5"
MAX TOOL WEIGHT: 12 LB
TOOL-TO-TOOL (AVG): 4.2 S
CHIP-TO-CHIP (AVG): 4.5 S
TABLE SIZE: 36" X 14"
DIMENSIONS: 101" X 99" X 101"
WEIGHT: 7,800 LBS
PROGRAMMABLE COOLANT
THROUGH SPINDLE COOLANT
24+ SIDE MOUNT TOOL CHANGER
INTERNAL HIGH VOLT TRANSFORMER
CHIP AUGER
