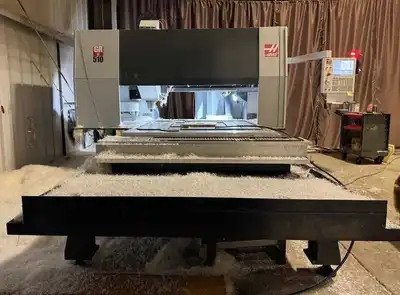

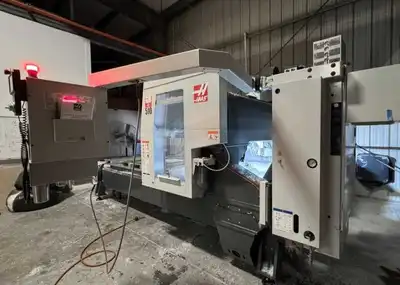

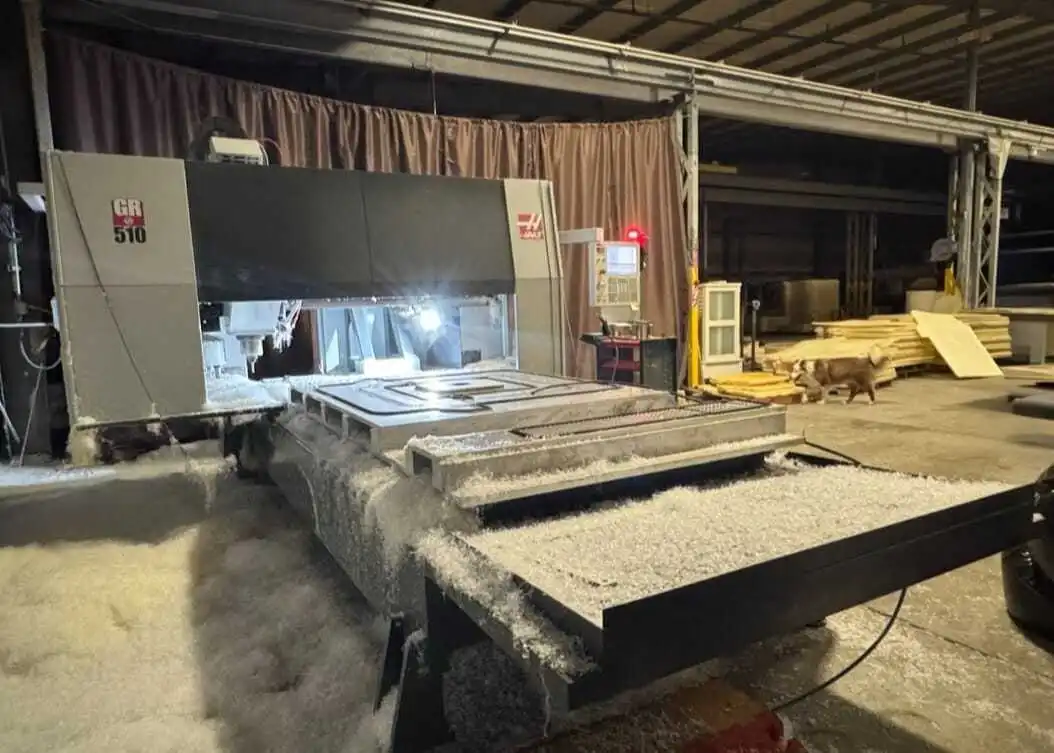

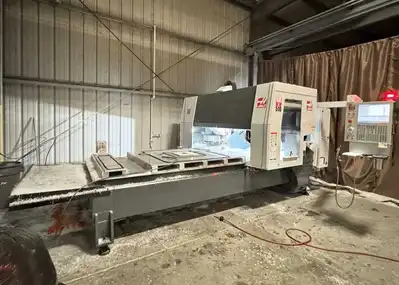

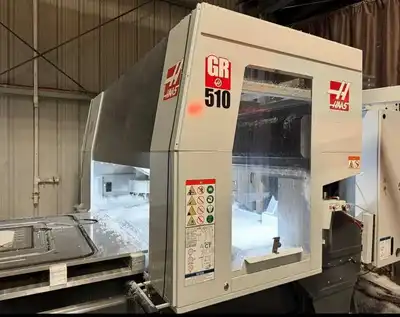

The 2023 Haas GR-510 Gantry Router is purpose-built for high-speed machining of large parts without sacrificing precision. Ideal for plastics, aluminum, composites, and other non-ferrous materials, the GR-510 gives shops the ability to tackle oversized workpieces with efficiency and confidence.
Featuring an expansive cutting area, the GR-510 allows you to process large sheets, panels, and structural components in a single setup—reducing handling time and increasing overall accuracy. Its rigid gantry design ensures stability across the full travel range, delivering smooth, consistent results even at higher feed rates.
At the heart of the machine is a high-speed spindle designed for fast material removal and clean finishes. Whether you're cutting intricate patterns or running long production jobs, the GR-510 maintains excellent surface quality while keeping cycle times low. The machine’s rapid traverse rates and responsive servo system further boost productivity, making it a strong choice for both prototype and production environments.

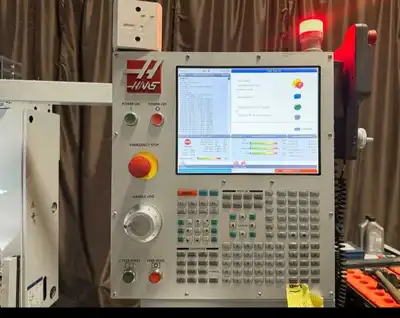

The intuitive Haas control simplifies programming and operation, helping operators get up to speed quickly and minimize downtime. A generous tool capacity and optional upgrades—such as vacuum tables, dust collection systems, and probing—allow you to configure the machine for your specific workflow.
From sign-making and aerospace components to marine parts and general fabrication, the 2023 Haas GR-510 offers the size, speed, and reliability needed to expand your capabilities and take on larger, more demanding jobs with ease.
Table Width
53"
Table Length
122"
X-Axis Travel
121"
Y-Axis Travel
61"
Z-Axis Travel
11"
Spindle Speed
10,000 RPM
Spindle Motor
15 HP
Spindle Taper
CAT 40
Tool Changer
10 ATC
10000-RPM Grease-Packed Spindle
Automatic Airgun
Minimum Quantity Lube
Wireless Intuitive Probing (WIPS)
High Speed Machining
CNC Cabinet Cooler
