| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | CT 40 | CT 40 |
Features:

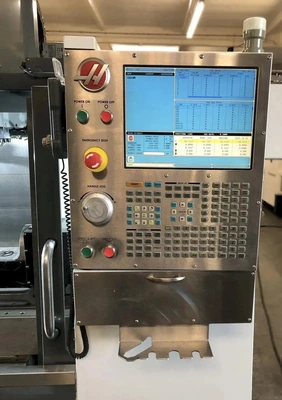

Haas CNC Control
CAT-40 Taper Spindle
30 HP High Torque Spindle
Automatic Lubrication System
Rigid Tapping
Coolant System
Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 4″ – 24″
Spindle Nose to Plater (Min.- Max.): 5.4″ – 14.6″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute

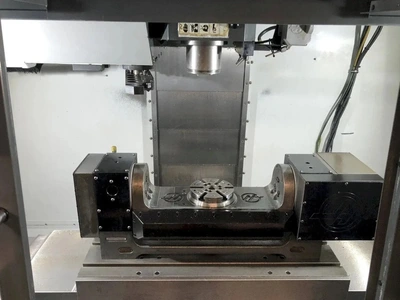

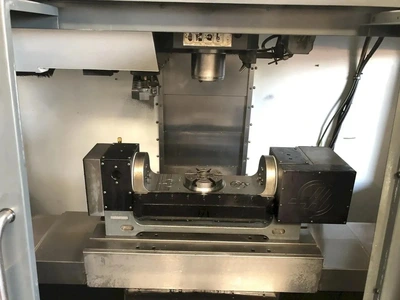

Trunnion Table:
Plater Diameter: 6.30″
Max Weight on Plater: 80 lbs
Max Part Swing (reduced at tilt angles > ± 90°): 18″
T-Slot Width: 0.625″
Table:
Length: 36.0″
Width: 14.1″
T-Slot Width: 5/8″
Number of Std T-Slots: 3
Max Weight on Table (evenly distributed): 3,000 lbs

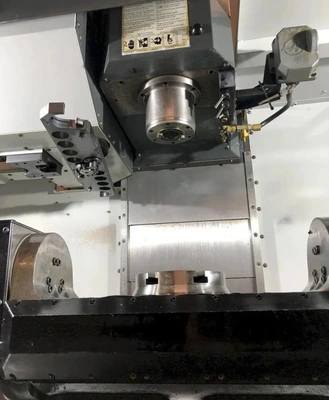

Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM
Automatic Tool Changer:
Capacity: 30 Station
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length (from gage line): 11.0″
Tool Changing Time: 2.2 Seconds

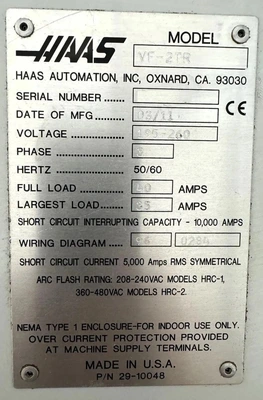

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Machine Weight: 8,300 lbs

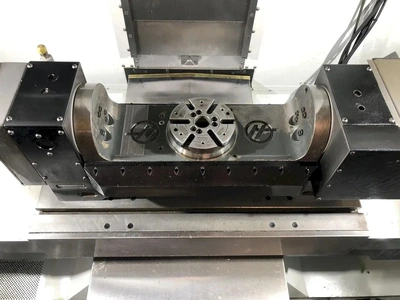

Haas TR-160 Trunnion Table
10,000 RPM Spindle (Upgraded $7,595 value Included)
30 Station Automatic Tool changer
Programmable Coolant Nozzle
MPG Handwheel Control
Chip Auger
