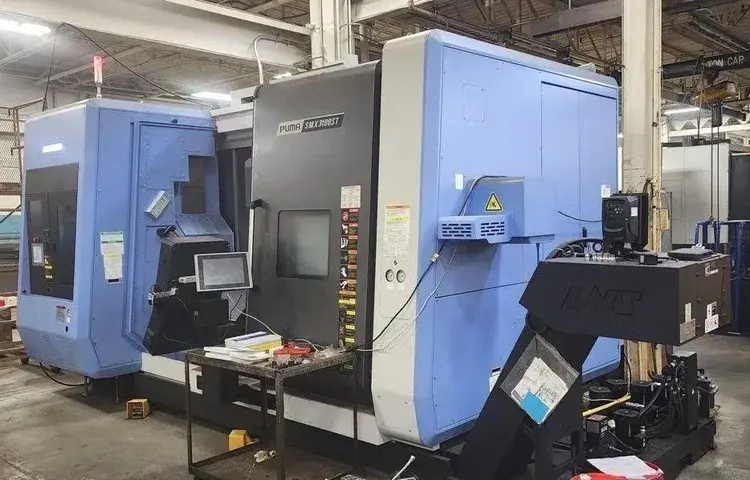

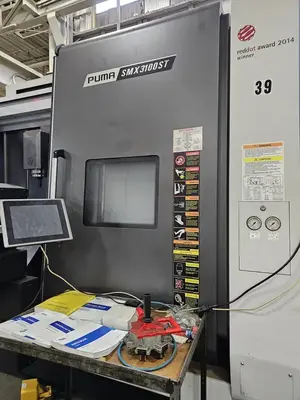

2019 Doosan Puma SMX3100ST Multitasking CNC Lathe | Stock#4470
Have one to sell?
ConditionUsed
1 available
Take your production capabilities to the next level with this 2019 Doosan Puma SMX3100ST — a powerful multitasking CNC lathe engineered for complex, high-precision parts in a single setup.
Designed for shops that demand turning, milling, drilling, tapping, and Y-axis machining in one platform, the SMX3100ST eliminates secondary operations and boosts throughput while maintaining tight tolerances.
DN Solutions Doosan Puma SMX3100ST Multitasking CNC Lathe (2019)
Max Machining Diameter Upper / Lower: 26" Max Turning/Machining Diameter (Main Spindle)
Max Machining Length: 60.6" Max Turning/Machining Length

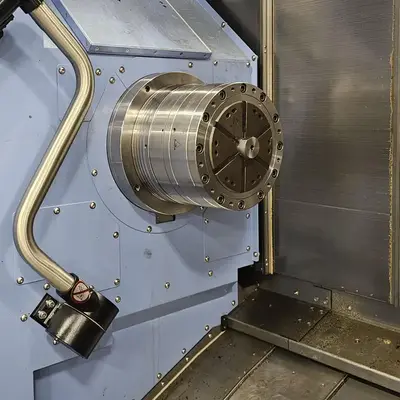

Main Spindle Chuck Size: Samchully Hch-18 18" 3-Jaw Chuck
Main Spindle Speeds: 3000 Max Rpm
Main Spindle Drive: 40 Hp
Main Spindle Nose / Bore: 4.1" Bore, Current Spindle Liner Setup Is Configured For 2.875" Bar Capacity
Main Spindle Indexing: Full C-Axis
Second Spindle Chuck Size: Samchully Mh-212 12" 3-Jaw Chuck
Second Spindle Speeds: 4000 Rpm
Second Spindle Drive: 35 Hp
Second Spindle Indexing: Full C-Axis

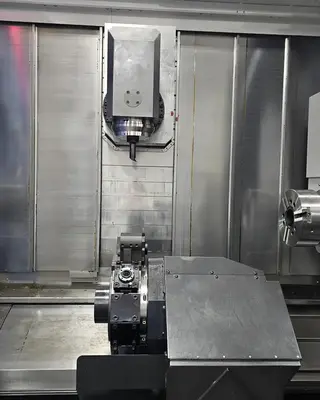

Milling Head Speeds: 12,000 Max Rpm
Milling Head Drive: 35hp

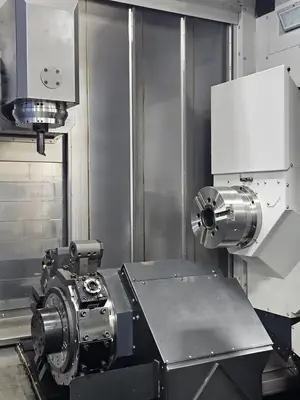

Milling Head Travel X / Z / Y: 27.4" / 62.4" / 11.8"
Milling Head B-Axis Programmable: +/- 240°
Equipped With

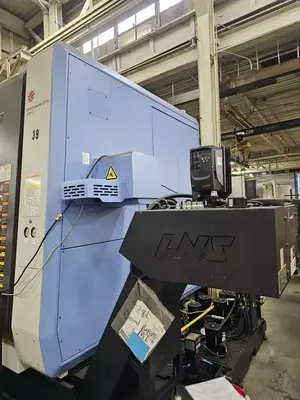

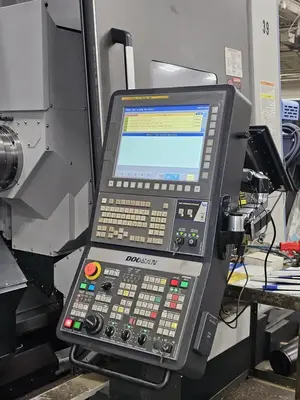

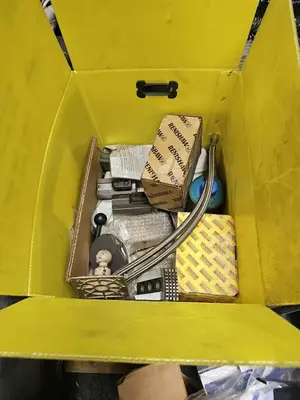

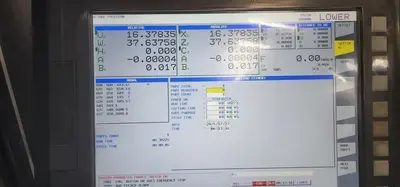

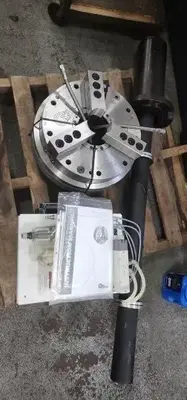

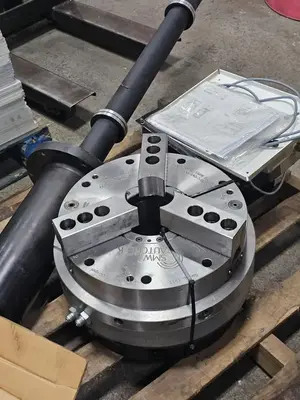

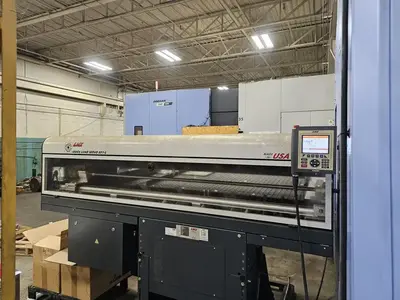

Never Ran Production, Never Tooled UP, Mill-Turn Center with 12,000 RPM B-Axis Articulating Milling Head, 12 Station Live Tool Lower Turret, 80 Station ATC, Fanuc Series 31i-Model B5 CNC Control w/ Doosan Easy Operation Package and 15" Display, LNS Barfeed, 12,000 RPM Capto C6 Taper B, Z, & Y Axis Milling Spindle, 80 Station Tool Changer With Tool Library Control Screen, Collet Chuck on Main, Air Chuck with 5.5 Diameter Bore ( on pallet), Samchully MH-212 12" 3-Jaw Chuck on Right Spindle, Full C-Axis on Both Spindles, 40HP Left Spindle, 30HP Right Spindle, Lower X/Z Axis Live Milling & Static Tool Turret with 12 Stations (All Live Capable), Tool Presetter, Renishaw Tool & Parts Probing System with RMI-Q Radio Receiver, RPM600 Parts Probe, Renishaw TRS2 Laser Tool Breakage Detection, Servo Auto Door, 36,000 BTU Coolant Chiller, LNS MF2 Filtering Chip Conveyor with Variable Speed Drive, Complete Coolant System and Tank, Machine Manuals, (3) Capto C6 Tool Holders, (5) Live Tools, and Static Tool Holders,

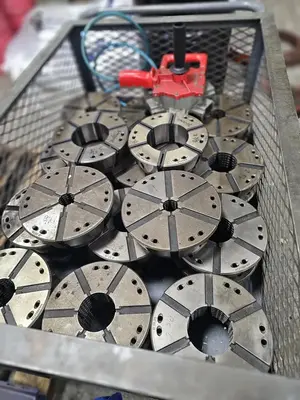

Serrated Collets
1, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 5/8, 1 3/4, 1 7/8, 2, 2 1/8 , 2 1/4, 2 3/8, 2 1/2, 2 5/8
2 3/4, 2 7/8, 3, 3 1/8, 3 1/4, 3 3/8, 3 1/2, 3 5/8, 3 3/4, 4, 4 1/4, 4 3/8, 4 1/2,
Smooth Collets, 3 5/8, 3 7/8
