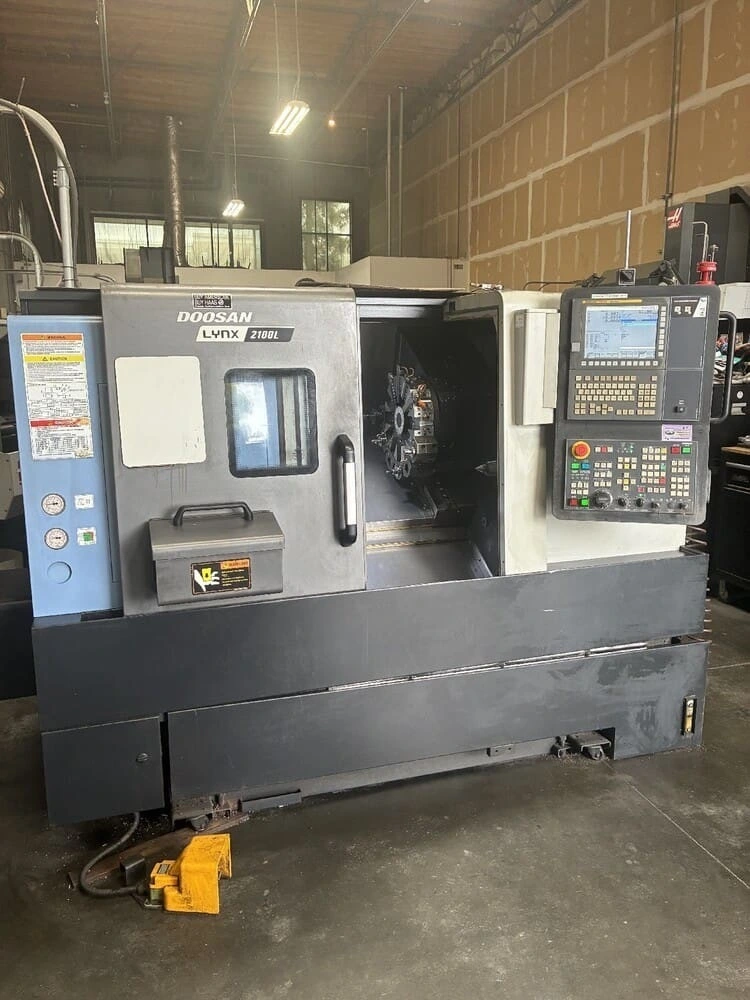

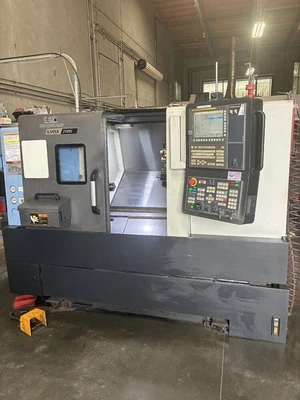

The 2017 Doosan Lynx 2100L is a high-performance CNC turning center designed for precision, reliability, and productivity in demanding machining environments. Built on Doosan’s proven rigid cast-iron construction, this lathe delivers excellent thermal stability, vibration damping, and consistent accuracy for both short-run and production work.
The extended “L” bed configuration provides increased turning length, making it ideal for a wide range of shaft, tube, and complex part applications. Equipped with a powerful spindle, fast rapid traverse rates, and a responsive servo system, the Lynx 2100L excels in high-speed, high-accuracy machining across a variety of materials.
Renowned for its user-friendly controls and low maintenance design, the Doosan Lynx 2100L offers exceptional uptime and ease of operation—making it a smart investment for shops looking to boost throughput while maintaining tight tolerances.
Chuck Size
8"
Bar Capacity
2.625"
Swing
23.6"
Turning Diameter
13.8"
Spindle Speed
40-4500 RPM
Control
Fanuc 0i-T
Distance Between Centers
21.6"
Turret
12
Tailstock
MT #4 Live
High-Speed Turret Indexing
.11 Sec
Power Requirement
205-235V/3 Ph/60Hz
20 HP High Torque Spindle- 124.6 ft/lb
3J Chuck Collet and Assortment of Tool Holders Included
65 PSI Multi-Stage Coolant Pump
EZ Guide i Conversational Programming
Fast Z Axis Rapid Traverse - 1417 IPM
No Chip Removal System
Tool Load Monitoring System
Auto Tool Presetter
Rigid Tapping
