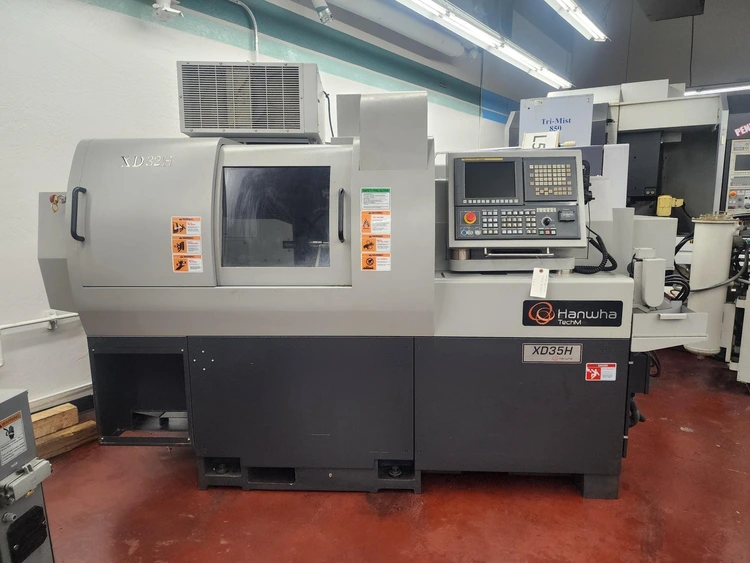

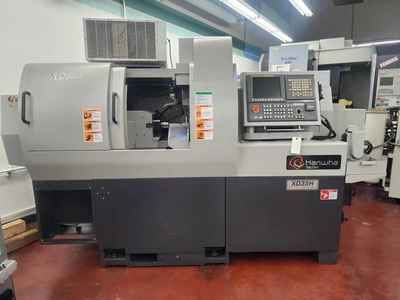

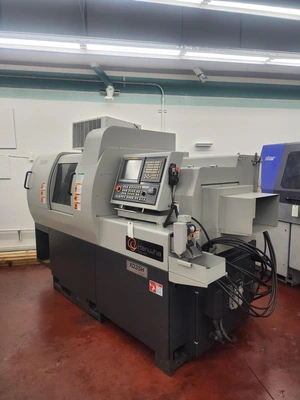

2014 HANWHA XD32H CNC Swiss Lathe | Stock #4460
Have one to sell?
$59,500.00 USD
ConditionUsed
1 available
The 2014 HANWHA XD32H CNC Swiss Lathe is a high-performance, heavy-duty Swiss-type turning center designed for precision, reliability, and productivity in demanding machining environments. Known for its rigid construction and user-friendly design, the XD32H is well-suited for high-volume production of complex, tight-tolerance parts.
This machine features a 32 mm bar capacity, powerful spindles, and a versatile tooling layout that supports simultaneous front and back working. Its robust build and thermal stability make it ideal for machining stainless steel, alloy steel, titanium, and other challenging materials.
A proven performer on the shop floor, this used XD32H represents an excellent opportunity to add Swiss-type capability or expand capacity at a significant savings compared to new.
CAPACITY 32 mm
POWER 10 hp
RPM 8,000 RPM
# AXIS 5

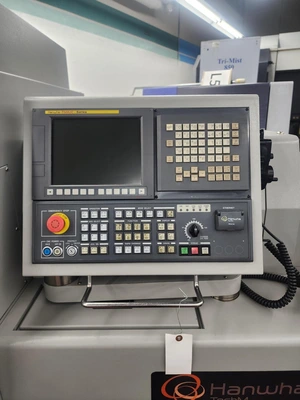

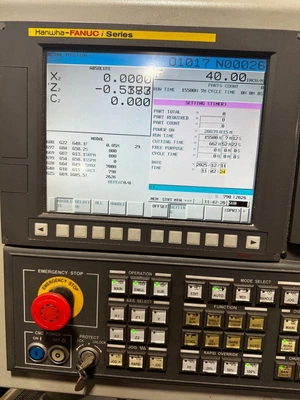

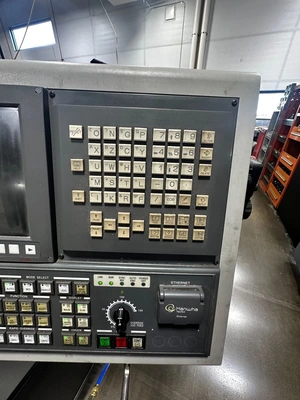

CONTROL CNC (Fanuc)
DIMENSIONS 65" x 94" x 69"
WEIGHT 9500
General Specifications:
Machining Capacity
Max Bar Capacity Round: 1.25″
Max Bar Capacity Hex: 1.062″
Max Bar Capacity for the Sub Spindle: 1.25″
Tapping Capacity on the Main Spindle: 0.312″
Front Ejection from the Sub Spindle: 3.0″
Rear Ejection from the Sub Spindle: 11.0″
Drilling Capacity on the Sub Spindle: .393”
Tapping Capacity on the Sub Spindle: .312”
Drilling Capacity on the Cross Drill: 0.275″ / 0.393″
Tapping Capacity on the Cross Tap: 0.250″
Main Spindle
Spindle Speed: 300 – 8,000 RPM
AC Spindle Drive Core Motor: 7.5 HP
C Axis Control Minimum Programmable Angle: 0.001 Deg.
C Axis Locking Gear: Every 1.0 Degree
Z1-Axis Horsepower: 2.0 HP
Z1 Axis Stroke: 12.50″
Z1 Axis Rapid Traverse: 1,200 IPM

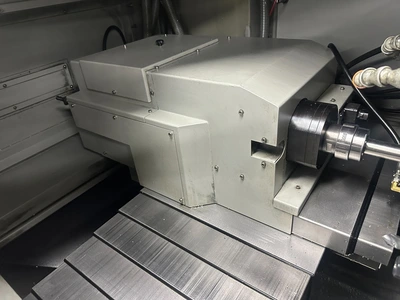

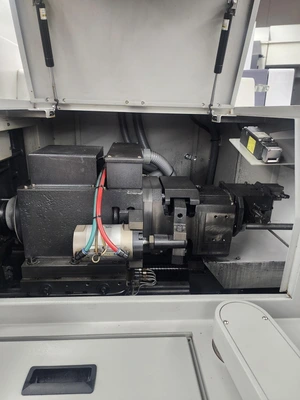

Sub Spindle
Spindle Speed: 300 – 7,000 RPM
AC Spindle Drive Core Motor: 3 HP
C Axis Control Minimum Programmable Angle: 0.001 Deg.
C Axis Magnetic Brake: Every 1.0 Degree
Z2-Axis Horsepower: 2.0 HP
Z2-Axis Stroke: 12.50″
Z2- Axis Rapid Traverse: 1,200 IPM
Cross Working Spindles
Spindle Speed: 200 – 6,000 RPM
AC Spindle Drive Geared: 1.7 HP

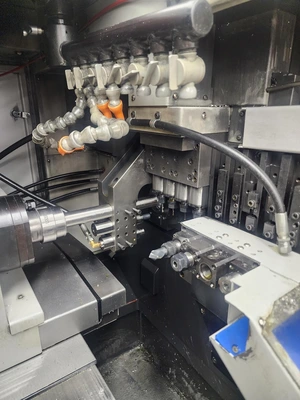

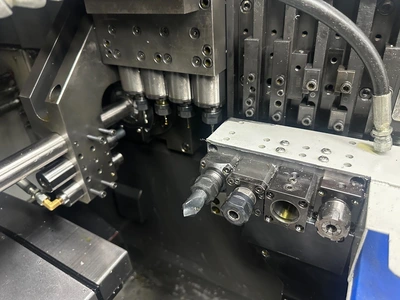

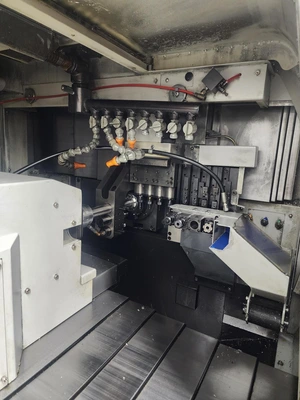

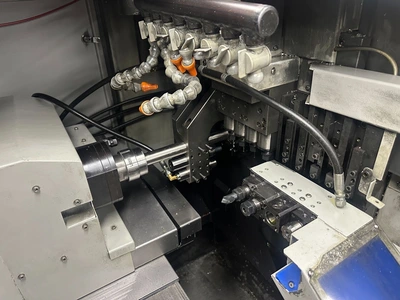

Tool Position
OD Tool Positions: 5
OD Tool Shank: 0.625” Sq.

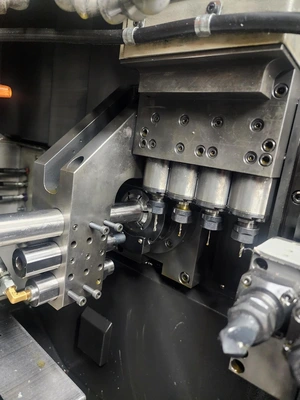

Cross Mill / Drill Stations: 4
Main Spindle ID Tool Positions Total (ER16 Type): 7
(5) Stationary from the Main Tool Stand
(2) Powered Face Mill / Drill Stations Independent from the Main Tools
Sub Spindle ID Tool Positions Total (ER-16 Type): 9
(5) Stationary from the Main Tool Stand
(2) Stationary Independent from the Main Tools
(2) Gear Driven Independent from the Main Tools to 6000 RPM

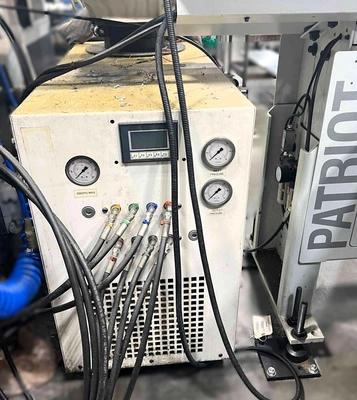

High Pressure Coolant.
Chip Conveyor.

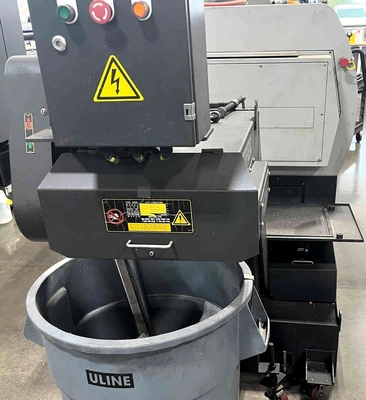

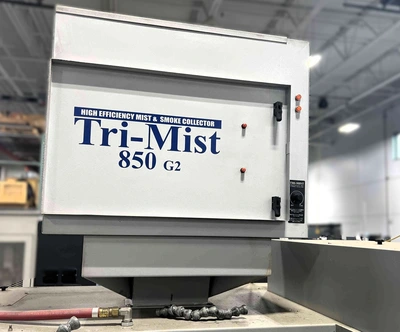

Tri-Mist Mist Collector.

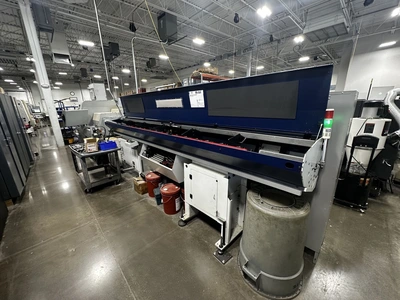

Edge Patriot Barfeed.
