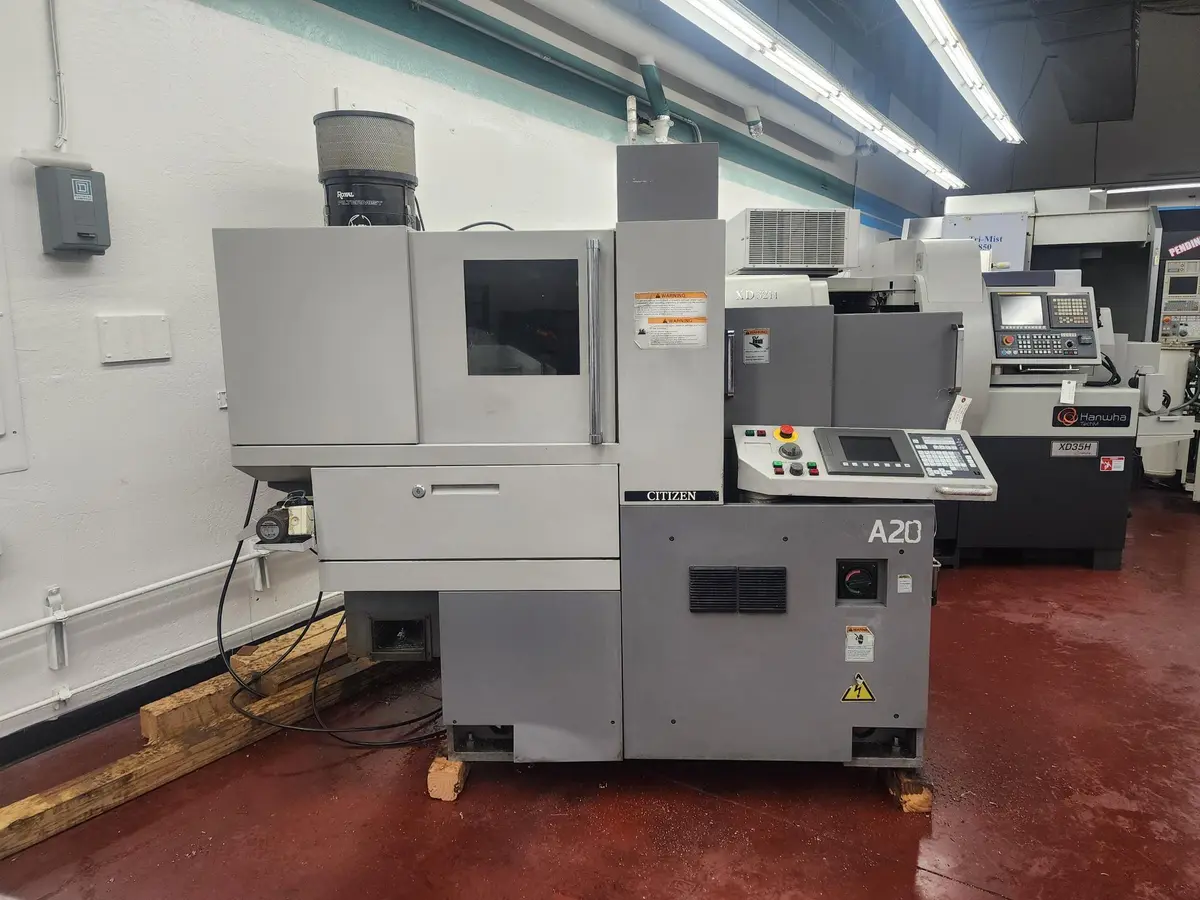

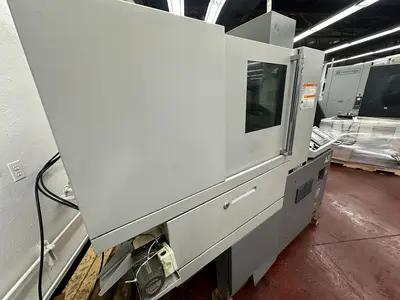

2008 Citizen A20VII 2F7PL CNC Swiss Lathe | Stock #4458
Have one to sell?
ConditionUsed
1 available

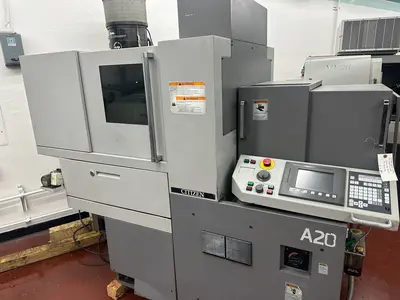

This 2008 Citizen A20VII 2F7PL CNC Swiss-type lathe is a proven, high-precision production machine, ideal for high-volume and tight-tolerance machining of small, complex parts. Citizen machines are known worldwide for reliability, accuracy, and long service life, making this an excellent value for shops looking to expand Swiss turning capacity at a reduced cost.
The A20VII features a 20mm bar capacity and a rigid, thermally stable design that delivers consistent accuracy over long production runs. Its advanced multi-axis configuration allows for simultaneous front and back working, reducing cycle times and secondary operations. This machine is well suited for medical, aerospace, electronics, and precision industrial components.
SPECIFICATIONS:
CAPACITY 20 mm
SPINDLE HOLE DIAMETER 31 mm
POWER 5 hp
RPM 8,000 RPM
# AXIS 5
SWISS, CHUCKER OR CONVERTIBLE? Swiss
MAIN SPINDLE INDEXING Full C
SUB-SPINDLE INDEXING Full C
LIVE BACK WORKING TOOLS No
B-AXIS? No
CONTROL CNC (Cincom)
DIMENSIONS 8.5' x 5.8' x 6'
WEIGHT 5,600
Machine Diameter: 3/4" (20 mm)
Machine Length: 6 1/2" (165 mm)
Front Drilling Diameter: 1/4" (10 mm)
Front Tapping Diameter: M8
Spindle Hole: 1 1/4" (31 mm)
Main Spindle Speed: 8,000 RPM
Live Tool RPM: 6,000 RPM

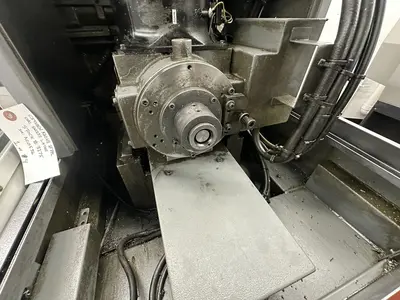

Chuck Diameter (Back Spindle): 3/4" (20 mm)
Back Spindle Speed: 8,000 RPM

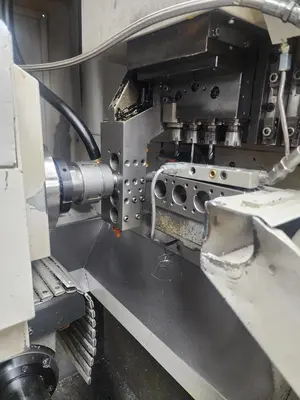

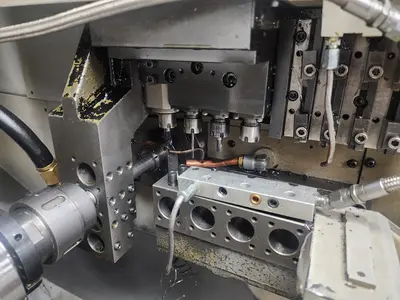

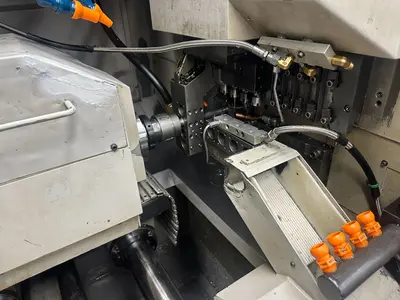

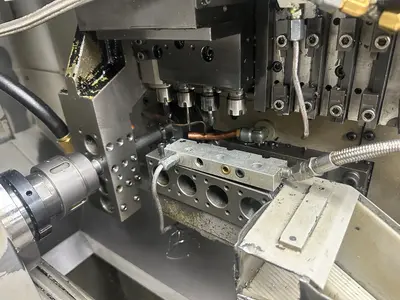

# of Tools Mounted: 21
Turning Tools on the Gang Post: 5

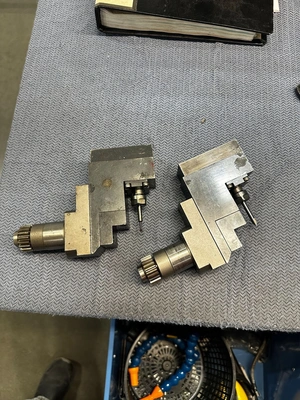

Rotary Tools for Cross Machining: 4
Tools for Front Drilling: 4
Tools for Back Drilling: 8
Machine Hours (02/18):
Power On: 60,305
Run Time: 30,450
Cutting Time: 15,705
Machine Dimensions: 8.5' x 5.8' x 6'
Machine Weight: 5,600 lbs

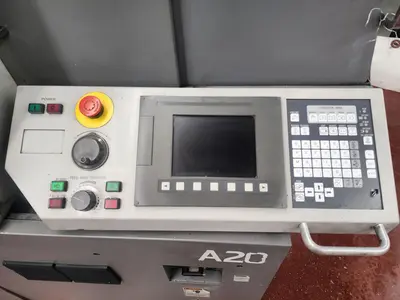

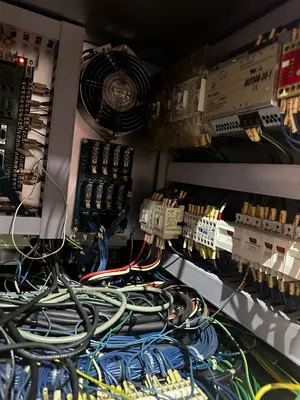

Cincom CNC Control

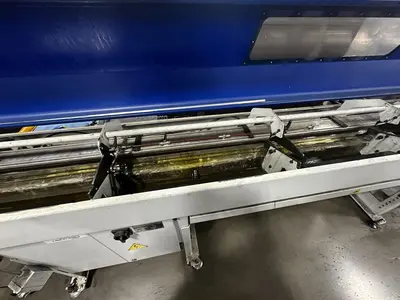

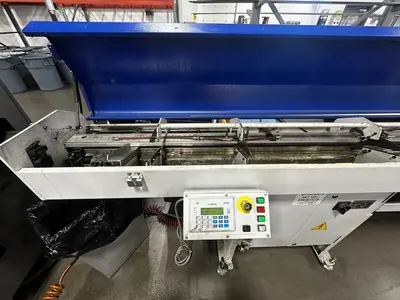

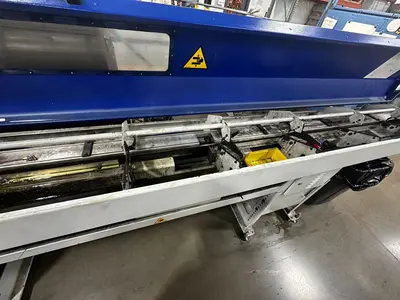

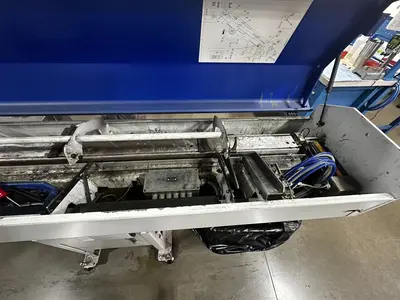

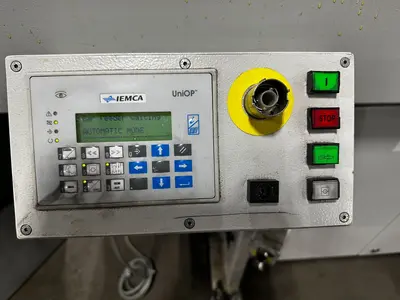

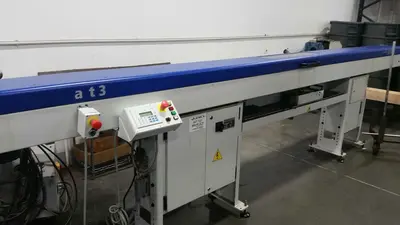

Iemca Magazine Barfeed

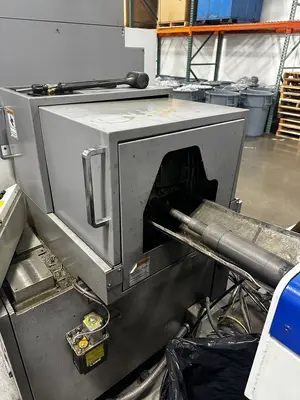

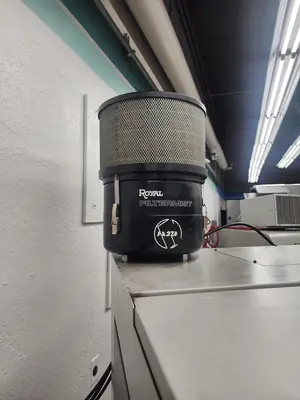

Royal Filtermist FX-278 Mist Collector
Coolblaster High Pressure Coolant System
Parts Conveyor/Catcher
Chip Conveyor
