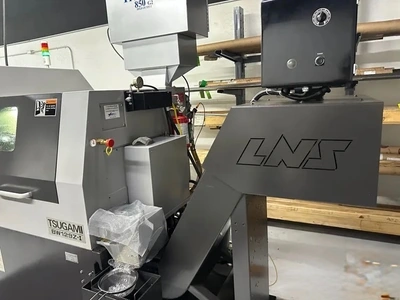

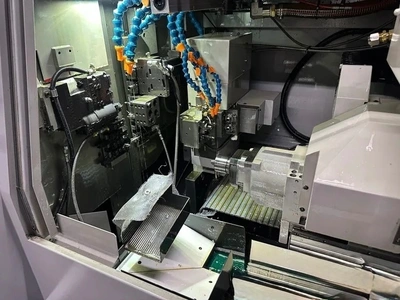

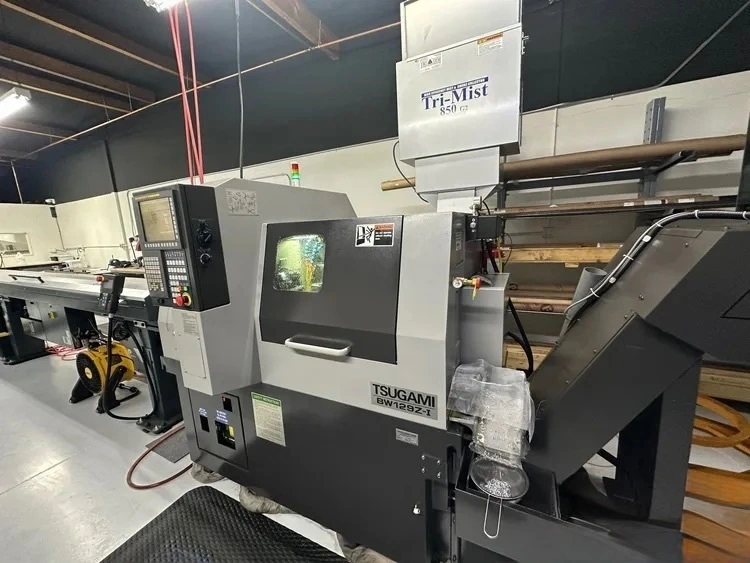

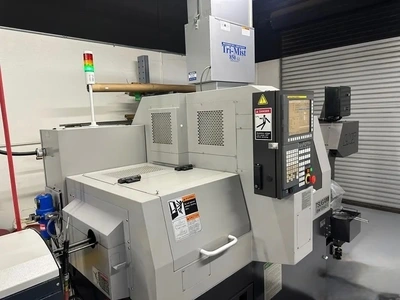

2019 Tsugami BW129Z-I CNC Swiss Lathe | Stock #4449

Number Of Axes: 9 (X1,Y1,Z1,X2,Y2,Z2,X3,Y3,Z3,C1,C2)
Barstock Chucking Diameter: .12" - .47" (3-12 mm)

Machining Length:
-Stationary Guide Bushing: 1.77" (210 mm)
-Carrier Rotary Guide Bushing: 3.15" (80 mm)
-Direct Drive Rotary Guide Bushing: 6.69" (170 mm)
-Guide Bushing Less: 1.77" (45 mm)

Main Spindle Drilling Diameter: .28" (7 mm)
Main Spindle Tapping Diameter: M6
Main Spindle Through ID: .63" (16 mm)
Back Spindle Chucking Diameter: .47" (12 mm)
Back Spindle Drilling Diameter: .28" (7 mm)
Back Spindle Tapping Diameter: M8
Cross Drilling Diameter: .24" (6 mm)
Cross Tapping Diameter: M5 x 0.8
Tool Spindle Slotting Cutter Diameter: 1.18" (30 mm)
Back Drilling Diameter: 6 mm
Back Tapping Diameter: M5
Main Spindle Speed: 12,000 RPM
Back Spindle Speed: 12,000 RPM

Rotary Guide Bushing Speed:
-Carrier Rotary Guide Bushing: 8,000 RPM
-Direct drive Guide Bushing: 12,000 RPM

Cross Tool Spindle Speed: 8,000 RPM
Tool Size: .5" x .5" x 3.35" (T04, T05, T06, T07, T16, T17, T18)

Rapid Traverse Rates
Z1, Z2, X2: 1259 IPM
Y1, Y3: 944 IPM
Y2: 590 IPM
X1, X3, Z3: 472 IPM

Main Spindle Motor: 2.9 HP (2.2 Kw)
Back Spindle Motor: 2.9 HP (2.2 Kw)
Axis Motors (X1, Y1, Z1, X2, Y2, Z2, X3, Y3): 0.6 HP (0.5 Kw)
Cross Drill, Tool Spindle: 1.34 HP (1 Kw)
Back Tool Speed: 1.34 HP (1 Kw)

Machine Dimensions: 79" x 59" x 69"
Machine Weight: 6,400 lbs
