CHUCK SIZE MAIN/SUB 10”/6”
SWING OVER BED 36.4"
SWING OVER FRONT COVER 29.7"
MAX. TURNING DIAMETER 14"
MAX. TURNING LENGTH 27.7"
BAR WORK CAPACITY 3.1"
X AXIS TRAVEL 10.2"
Y AXIS TRAVEL 3.9<+/-2.
Z-AXIS TRAVEL 31.3"
HEADSTOCK 2 TRAVEL B-AXIS 28.9"
MAX. SPINDLE SPEED MAIN 4,000 RPM
MAX. SPINDLE SPEED SUB 6,000 RPM
THRU SPINDLE HOLE DIA. MAIN 3.6"
THRU SPINDLE HOLE DIA. SUB 1.7"
NUMBER OF TOOL STATIONS 12
MAX. ROTARY TOOL SPEED 10,000 RPM
RAPID TRAVERSE RATE XZB 1181 IPM
RAPID TRAVERSE RATE Y 393.7 IPM
RAPID TRAVERSE RATE C 400 Min

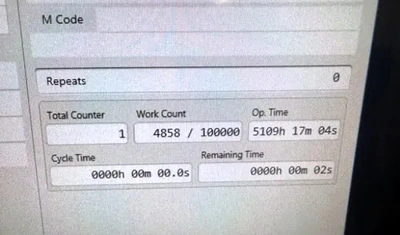

Only 5109hrs Operating Time

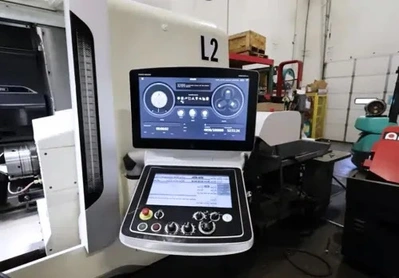

Celos ERGOline Mitsubishi M-730UM Control

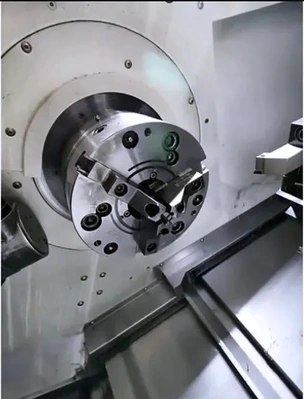

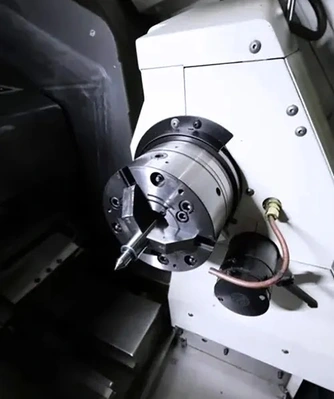

3 Jaw Hydraulic Power Chucks

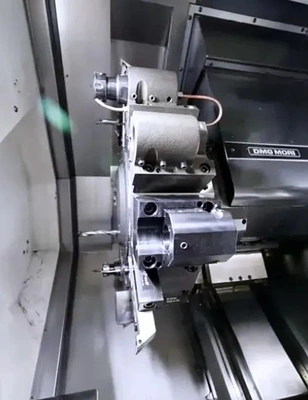

Live + Static Tool Holders

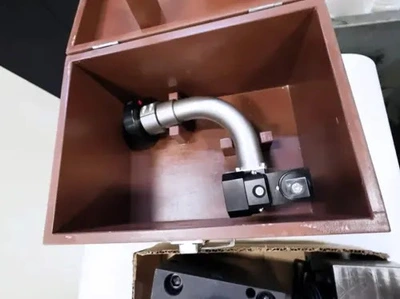

Tool Pre-Setter
Parts Catcher

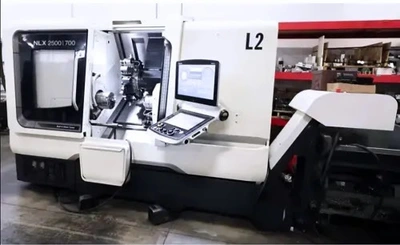

Chip Conveyor
This equipment is currently unavailable. Similar equipment available now is shown below.
