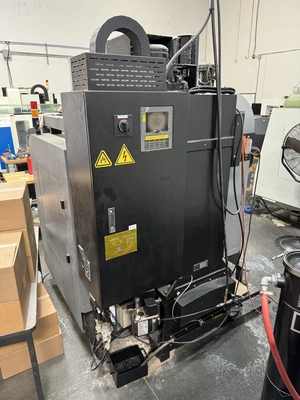

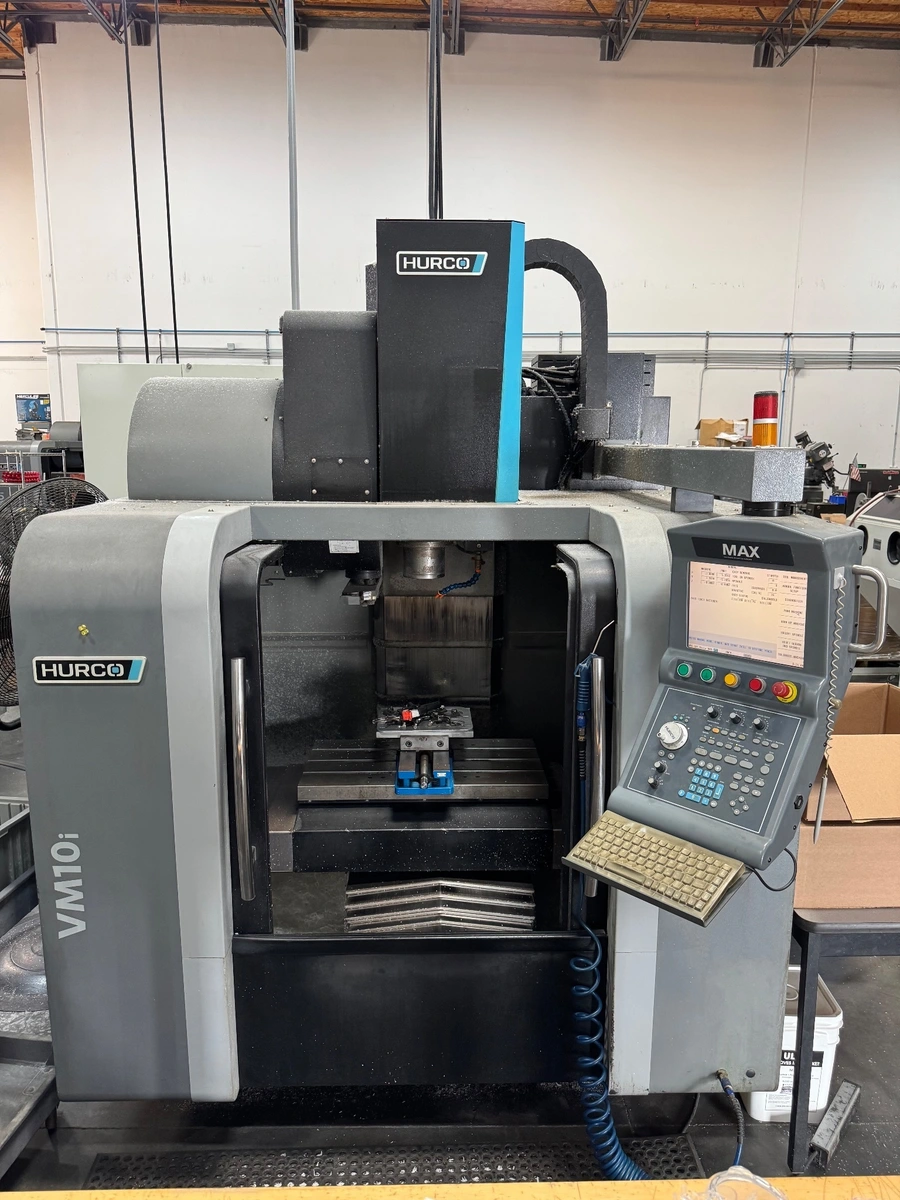

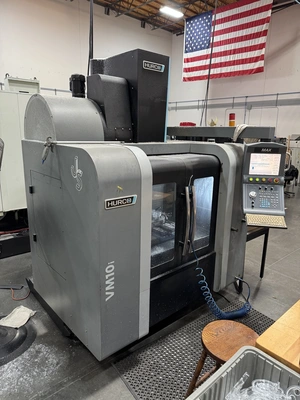

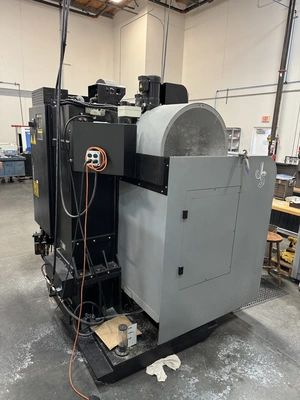

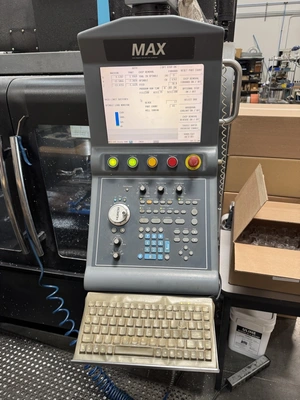

2014 Hurco VM10i | Stock #4424
Have one to sell?
ConditionUsed
1 available
2014 Hurco VM10i CNC Vertical Machining Center – Precision. Performance. Proven.
Take your machining capabilities to the next level with this 2014 Hurco VM10i, a high-performance vertical machining center designed for accuracy, speed, and reliability. Ideal for small to mid-sized parts, this compact yet powerful machine is a perfect addition to any modern shop floor.
X, y, z axis travel
26.02 x 16.02 x 20 in (660 x 406 x 508 mm)
T-slot size
3 x 0.71 in (3 x 18 mm)
Max. weight on table
3,300 lbs (1,500 kg)
Spindle nose to table min./max.
4 / 24 in (102 / 610 mm)
Table size
30 x 16 in (762 x 406 mm)
Max. spindle speed
10,000 rpm
Spindle power (peak - 1 min)
15 hp (11.0 kW)
Spindle torque (peak - 1 min)
45 ft. lbs @ 1,740 rpm (61 Nm @ 1,740 rpm)
Tool type
CAT 40 / Big Plus® (CAT/BT 40)
Number of tools
24
Max tool diameter
3.1 in (80 mm)
Max tool length
9.8 in (250 mm)
Max tool weight
15.4 lb (7 kg)
Rapid traverse x,y,z axis
1,102 in/min (28 m/min)
Max programmable feedrate
1,102 inches/minute (28 m/minute)
Max. operating floor space
128.5 x 133.2 in (3,264 x 3,384 mm)
Machine operating height
101.0 in (2,562 mm)
Machine weight
7,121 lbs (3,230 kg)
Has Rigid Tapping and DXF Transfer
2800 Spindle Hours.
