2009 Hurco TMM8 CNC Lathe | Stock #4423
Have one to sell?
ConditionUsed
1 available

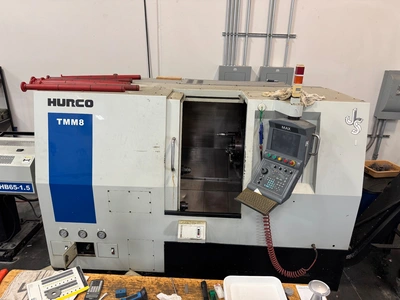

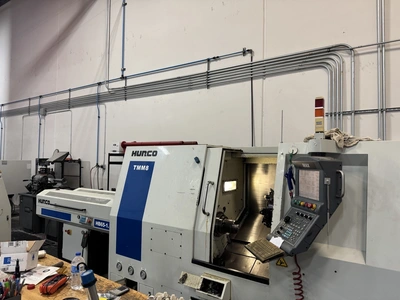

2009 Hurco TMM8 CNC Lathe — Robust Power, Precision Turning
Upgrade your shop’s turning capabilities with the 2009 Hurco TMM8 CNC Lathe — engineered for heavy-duty performance, repeatable precision, and versatility. Whether you’re machining high-volume production parts, complex profiles, or short-run specialty components, this lathe delivers.
Control CNC (WinMax)
Swing Over Bed: 21″
Swing Over Cross Slide: 11.8″
Distance Between Centers: 23″
X-Axis Travel: 7.8″
Z-Axis Travel: 20″
Max Cutting Diameter: 10″
Max Cutting Length: 17.9″
Bar Capacity: 2.0″
Spindle Motor: 18 HP
Chuck: 8″ 3-Jaw
Spindle Speed Max: 4,800 RPM
Spindle Speed Max With Live Tool: 5,000 RPM
Live Tooling Horsepower: 6 HP
Live Tool Taper: VDI-30
Turret Positions: 12
Turret Index Time: 0.23 Seconds
Approximate Weight: 8,900 Lbs
Approximate Dimensions: 119″ x 91″ x 80″H
Has Live Axial and Radial tooling. 2 of each.

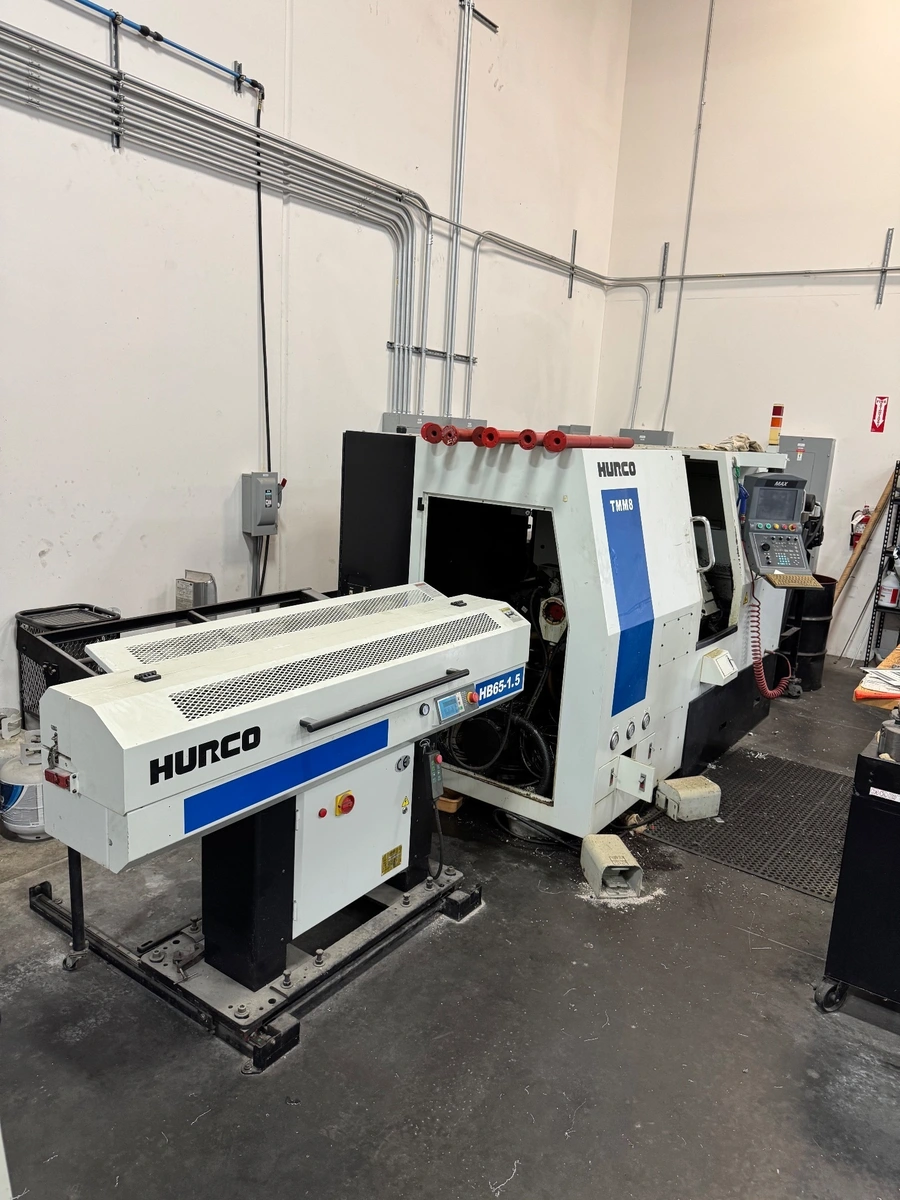

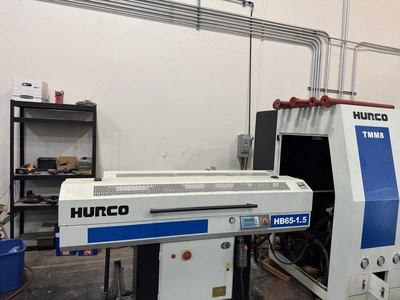

Hurco Rail Style Bar feeder will go up to 2".
Machine comes with chip conveyor.
Has 5C Collet Nose, B60 Collet Nose and 8" 3 Jaw Chuck.
Spindle Hours - 3463
