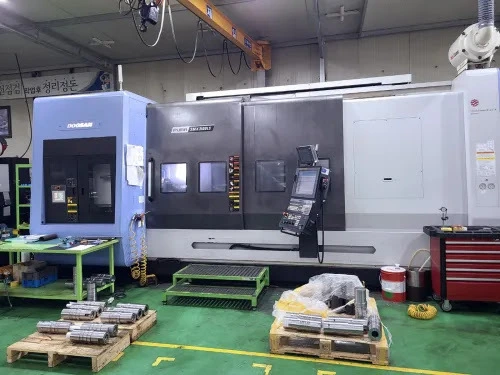

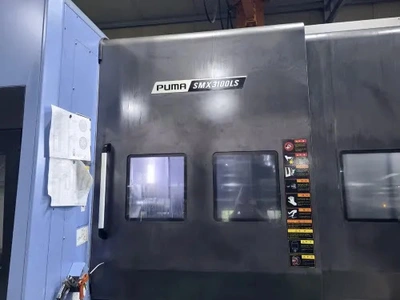

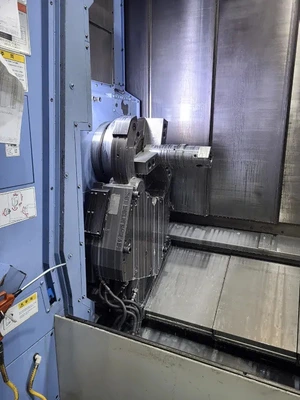

For Sale: 2018 Doosan Puma SMX3100LS – Multi-Axis CNC Lathe & Milling Center
Power. Precision. Productivity – All in One Machine.

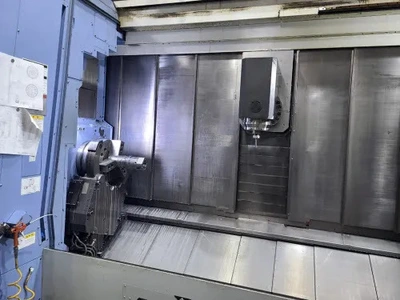

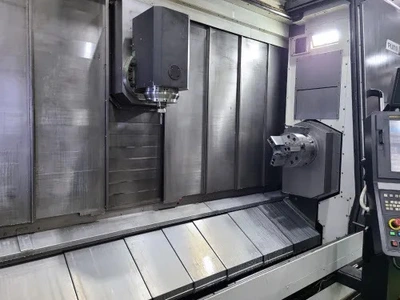

Take your machining capabilities to the next level with the 2018 Doosan Puma SMX3100LS, a high-performance multi-tasking CNC lathe designed for complex, high-precision part production. Engineered for demanding applications, this advanced turning/milling center combines dual spindles, a full B-axis milling head, and extended bed length to tackle the toughest jobs in a single setup.
Whether you're producing aerospace components, medical parts, oil & gas fittings, or precision-engineered prototypes, the SMX3100LS delivers speed, accuracy, and flexibility without compromise.
SWING OVER BED 26"
CHUCK SIZE 1 15"
BAR CAPACITY 1 4"
SPINDLE SPEEDS 1 2,500 RPM
CHUCK SIZE 2 12"
BAR CAPACITY 2 3.6"
SPINDLE SPEEDS 2 4,000 RPM
B - AXIS HEAD INDEXING 0.0001
B - AXIS MILLING SPINDLE TAPER Capto C6
B - AXIS MILLING SPINDLE SPEED 12,000 RPM
B - AXIS MILLING SPINDLE HORSE POWER 35 Hp

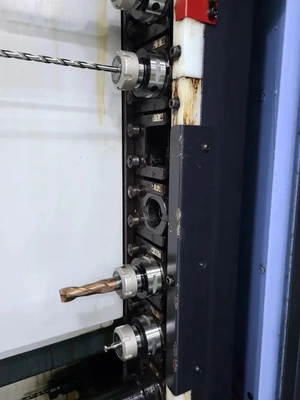

ATC FOR MILLING SPINDLE 80
TOOL LENGTH 17.7"
TOOL WEIGHT 26.5 Lb
X1 - AXIS TRAVEL 24.8"
Z1 - AXIS TRAVEL 101.8"
Y1 - AXIS TRAVEL 11.8"
C - AXIS INDEXING 1 360
W - AXIS TRAVEL SUB SPINDLE 98.4"
RAPID TRAVERSE RATE - X1 1889.8 Ipm
RAPID TRAVERSE RATE - Z1 1181.1 Ipm
RAPID TRAVERSE RATE - Y1 1417.3 Ipm
MACHINE WEIGHT 45,195 Lb
DIMENSIONS 252" X 118.5" X 112.2"
TURNING DIAMETER 26"
TURNING LENGTH 100"
Option / Equipped With

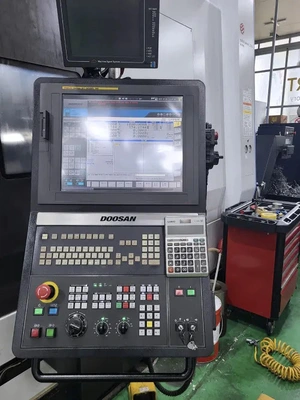

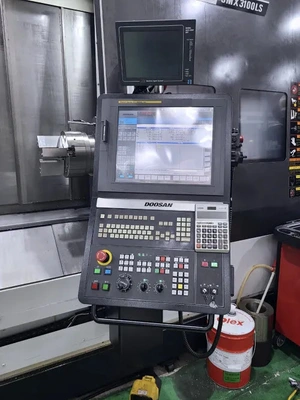

FANUC 31-B5 CNC CONTROL
SCALES FOR X/Y/Z

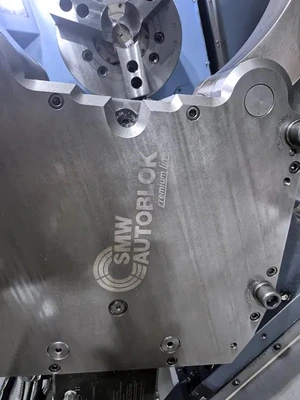

SMW STEADY REST 3.93" TO 16.1"
CHIP CONVEYOR
X AXIS BALLSCREW COOLING
ABSOLUTE PULSE CODER
AUTOMATIC ELECTRIC TOOL SETTER
PROGRAM STORAGE 1280M
EMBEDDED ETHERNET
AICC II 600 BLOCKS
8 PAIRS WORK COORDINATES
ATC OPERATING PANEL WITH TOUCH CAMERA
FANUC 31-B5 CNC CONTROL
SCALES FOR X/Y/Z
SMW STEADY REST 3.93" TO 16.1"
CHIP CONVEYOR
X AXIS BALLSCREW COOLING
ABSOLUTE PULSE CODER
AUTOMATIC ELECTRIC TOOL SETTER
PROGRAM STORAGE 1280M
EMBEDDED ETHERNET
AICC II 600 BLOCKS
8 PAIRS WORK COORDINATES
ATC OPERATING PANEL WITH TOUCH CAMERA
