2011 DMG Mori Seiki NLX 2500/700 CNC Turning Center | Stock #4412
Have one to sell?
$52,500.00 USD
ConditionUsed
1 available

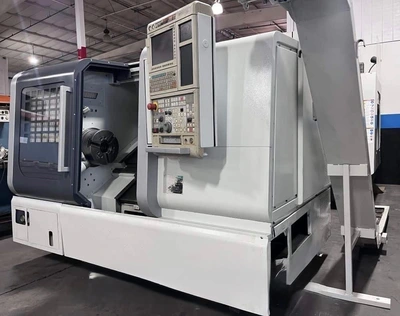

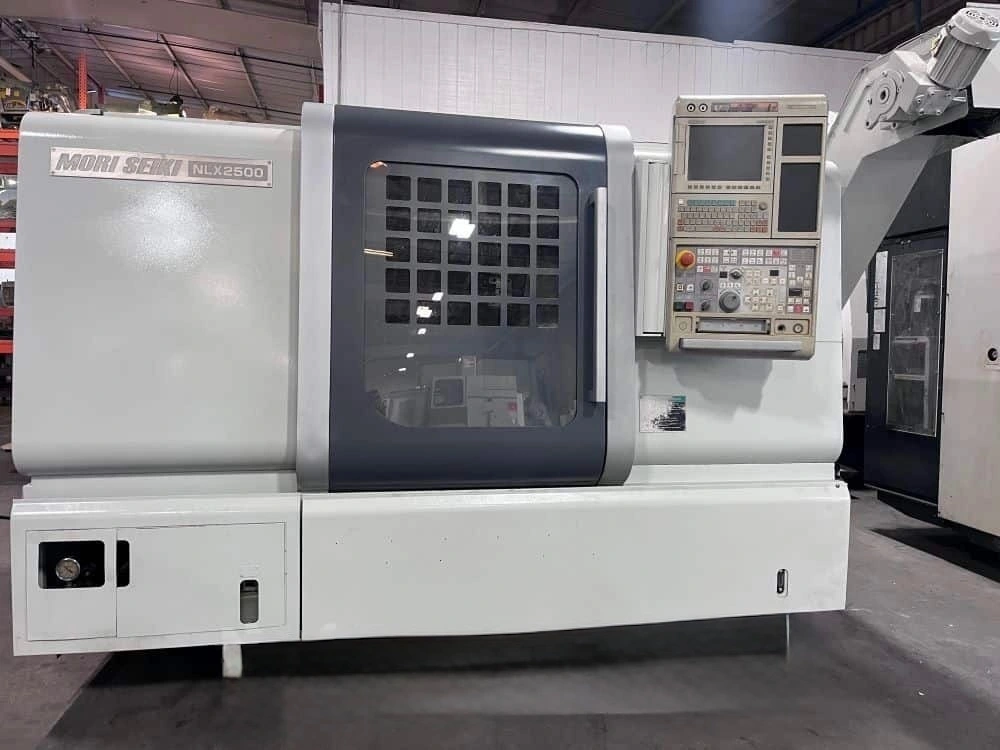

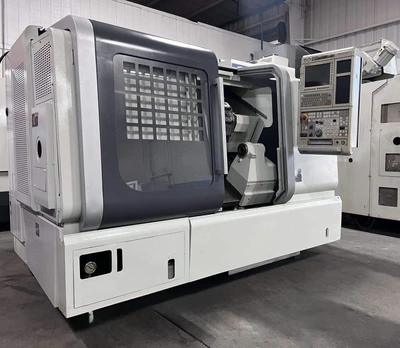

For Sale: 2011 DMG Mori Seiki NLX 2500/700 CNC Turning Center
Precision, Power, and Proven Reliability from a Global Leader in CNC Technology
Upgrade your turning capabilities with this 2011 DMG Mori Seiki NLX 2500/700, a high-performance CNC turning center designed for complex, high-precision part production. Built with a rigid structure, advanced thermal stability, and the renowned MAPPS IV control, this machine is ideal for industries requiring tight tolerances and efficient cycle times — including aerospace, medical, and high-end general machining.
With a generous turning length of 27.5” and a max turning diameter of 14.4”, the NLX 2500/700 offers the power, speed, and flexibility to handle a wide range of demanding applications.
CAPACITY:
Max Turning Diameter: 14.4″
Max Turning Length: 27.7″
Max Bar Capacity: 3.1″
Swing Over Bed: 23.2″
Distance Between Centers: 31.5″
TRAVELS:
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
SPINDLE:
Spindle Nose: A2-8
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP
TURRET:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tool Holders Type: BMT
TAILSTOCK:
Tailstock Body Travel: 25.5″
Tailstock Quill Dia.: 3.34″
Tailstock Quill Stroke: 3.1″
Tailstock Taper: MT-4
GENERAL:

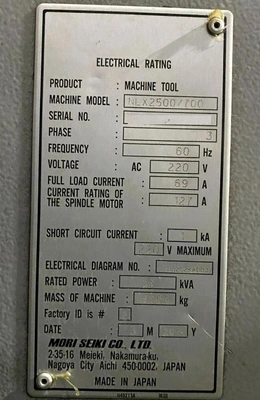

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 26 kva
Overall Dimensions: 103″ x 75 ″ x 72″ High
Weight : 9,900 lbs Approx.

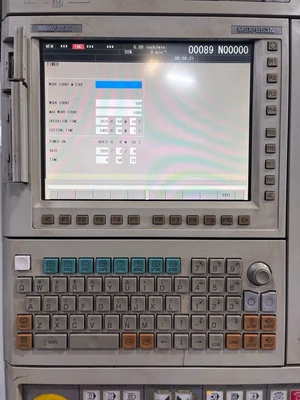

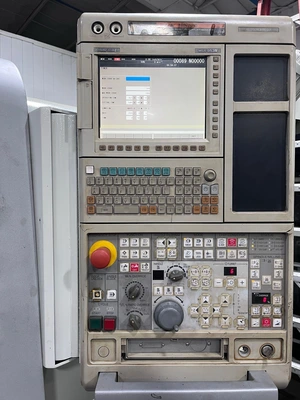

Mori Seiki MSX-853IV CNC Control

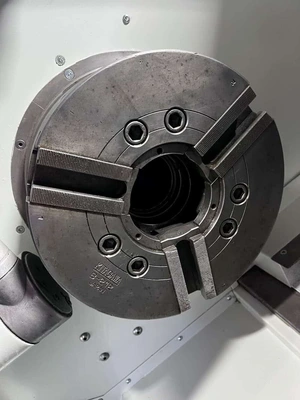

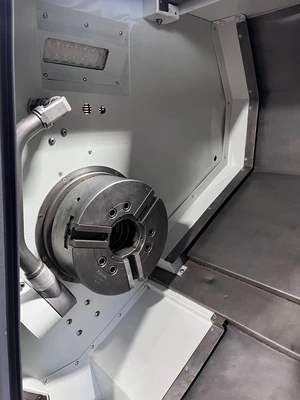

12″ 3 Jaw Hydraulic Chuck
12 Station High Speed Turret
25 HP Spindle Power
Tool Presetter
PCMCIA Card Slot
Programmable Tailstock
Rigid Tapping
Coolant System
Chip Conveyor

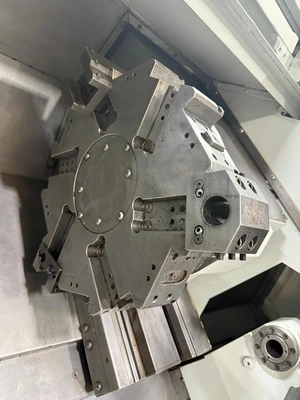

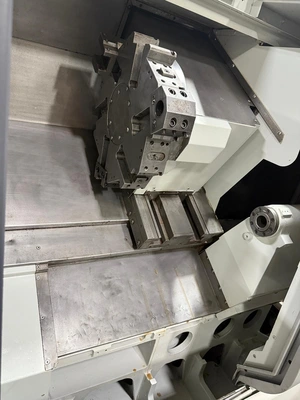

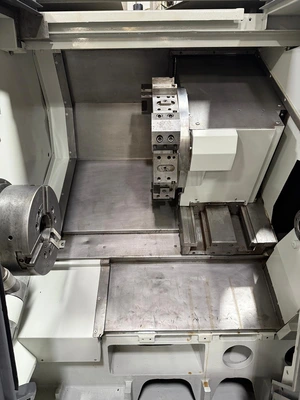

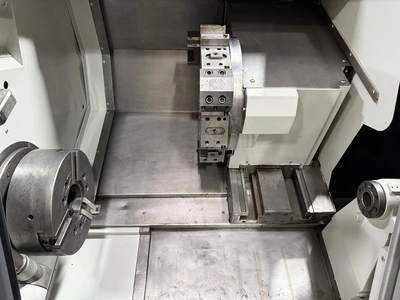

(2) Turning Tool Holders, (1) Boring Tool Holder are equipped on Turret (As shwon in the images)
