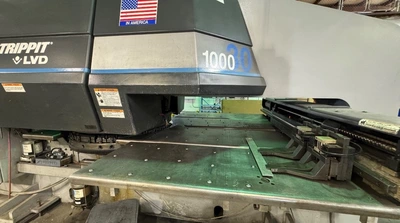

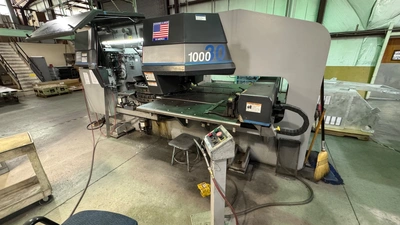

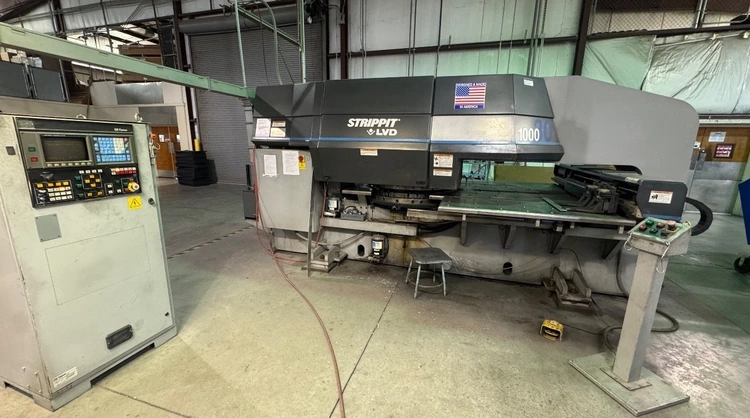

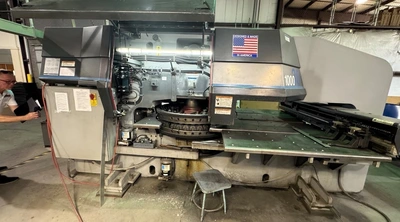

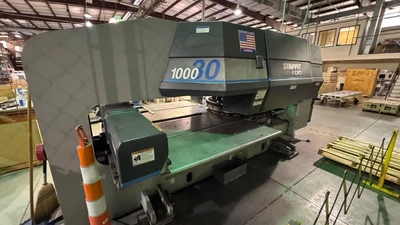

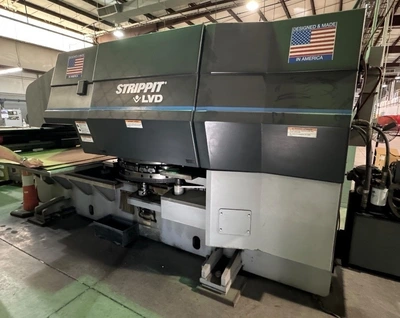

2000 Strippit 1000MXP/30 Turret Punch Press | Stock #4411
Have one to sell?
$32,500.00 USD
ConditionUsed
1 available

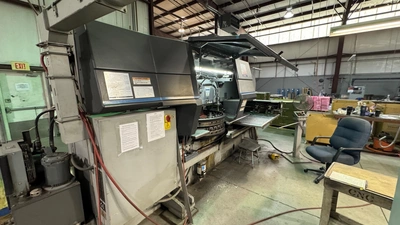

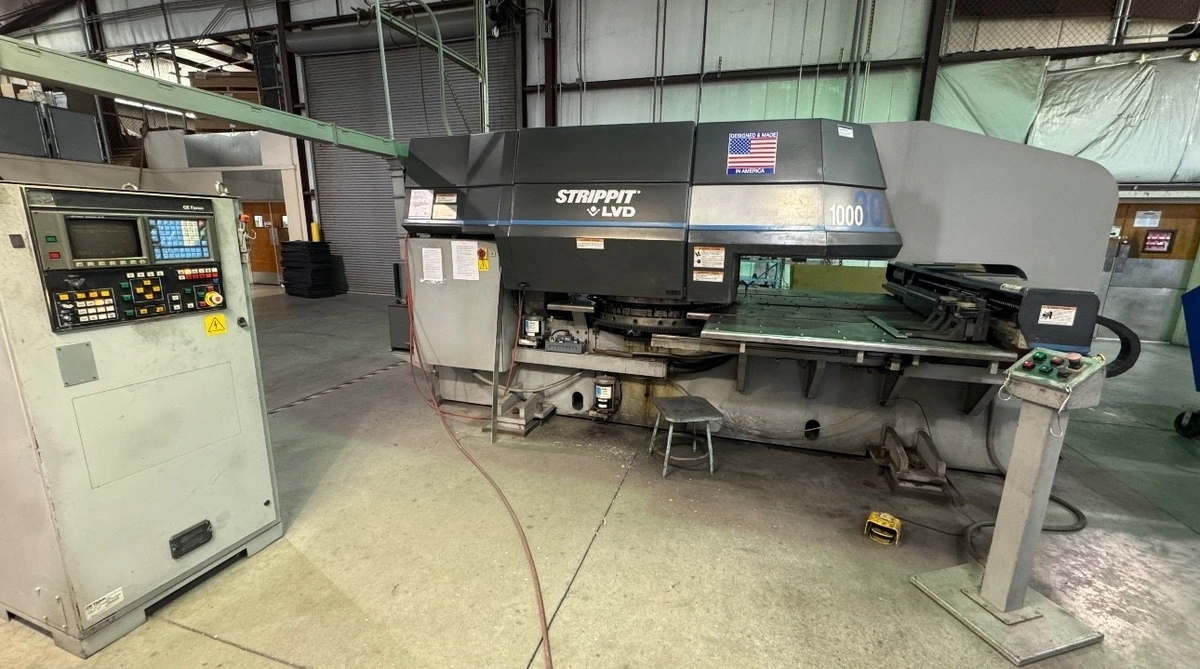

This 2000 Strippit 1000MXP/30 CNC Turret Punch Press is a proven solution for high-speed, high-accuracy sheet metal punching. With a 30-ton capacity, CNC control, and up to 22 turret stations, it's ideal for punching, forming, and nibbling a variety of materials with minimal setup and maximum efficiency.
Engineered for precision and built to last, the 1000MXP/30 remains a workhorse in fabrication environments, delivering tight tolerances and high throughput in a compact footprint.
Tonnage: 33 US tons
Approx. shipping weight: 29,000 lbs
Dimensions: ~ 205" W × 203" D × 91" H

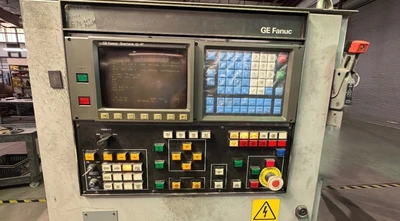

Control: CNC (Fanuc O‑P)
Max material thickness: 0.25"
Hole capacity:
• 3.5" diameter in 0.125" material
• 1.625" diameter in 0.25" material
Nominal workpiece size: 40" × 50"
Max workpiece weight: 320 lbs

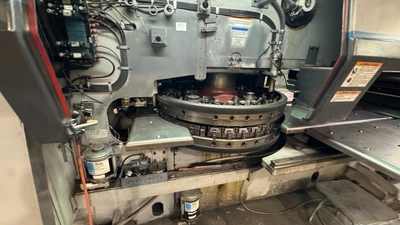

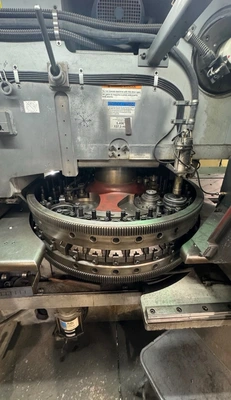

Turret: 40 stations (thin turret) with 4 × 3.5" stations and 3 auto-index stations
Axis speed (X & Y): 3,200 inches per minute
Production rate: 350 HPM on 2" centers
Very good condition, under power & ready to show.

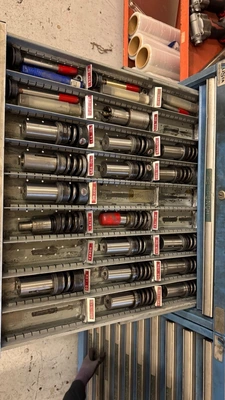

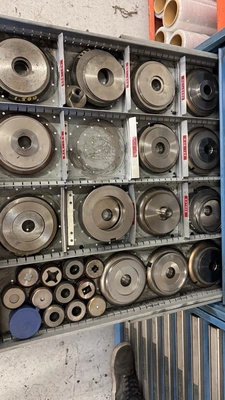

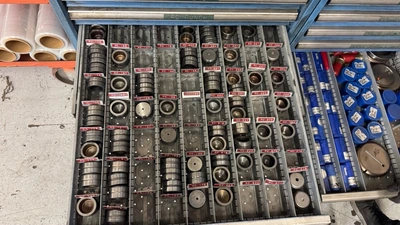

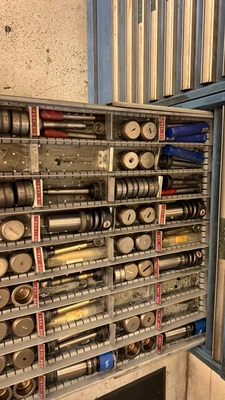

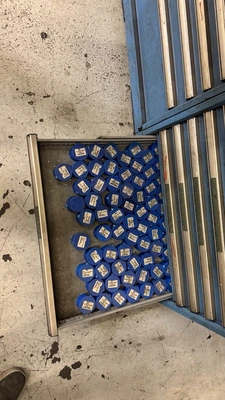

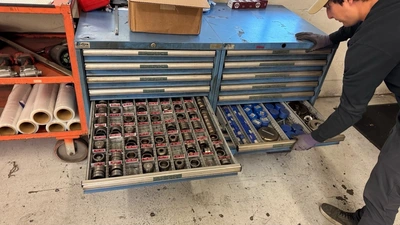

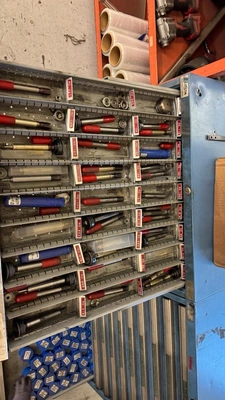

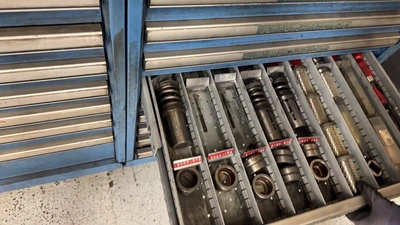

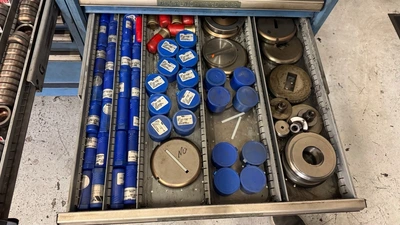

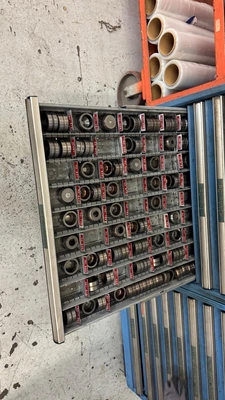

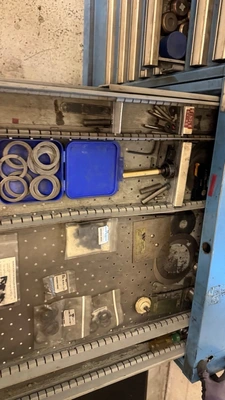

Tooling sold separately
