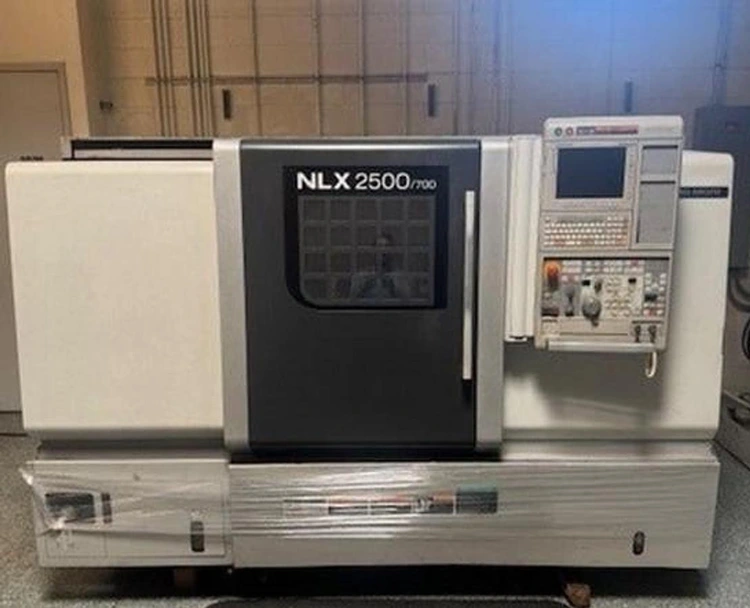

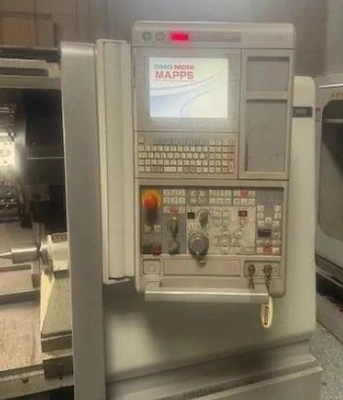

Machine Control Mori-Seiki MSX-853IV
Chuck Sizes Main / Subspindle 10" Hydraulic 3-Jaw
Maximum Swing over Bed 36.4"
Maximum Swing Over Cross Slide 23.2"
Maximum Turning Diameter 18.1"
Maximum Cutting Length 28.7"
X-Axis Travel 10.2"
Z-Axis Travel 31.3"
Spindle Nose / Bore / Bar Capacity A2-8" / 3.5" / 3.1"
Spindle Speed 4,000 rpm
Spindle Motor 25 hp

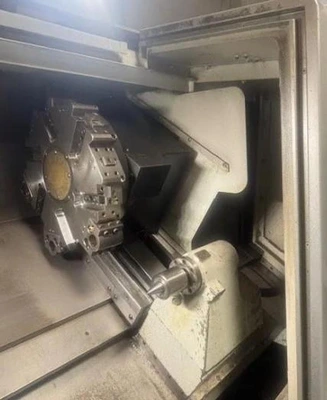

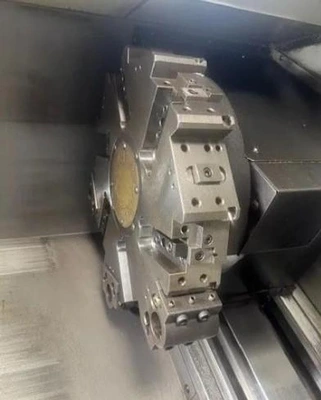

Number of Turret Positions 12 Position Turret
Rapid Traverse Rates 1181 IPM
Machine Dimensions LxWxH 130"x83"x89"
Machine Weight 13,648 lbs
Chip Conveyor

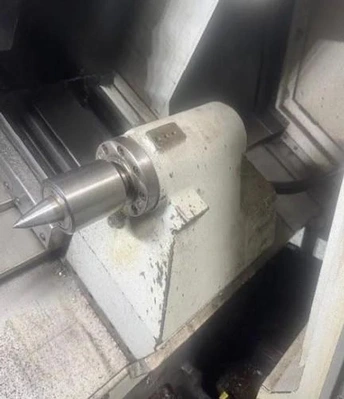

Programmable Tailstock
Tool Presetter

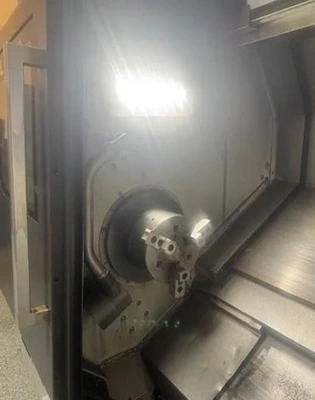

10" 3 Jaw Hydraulic Chuck
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals
