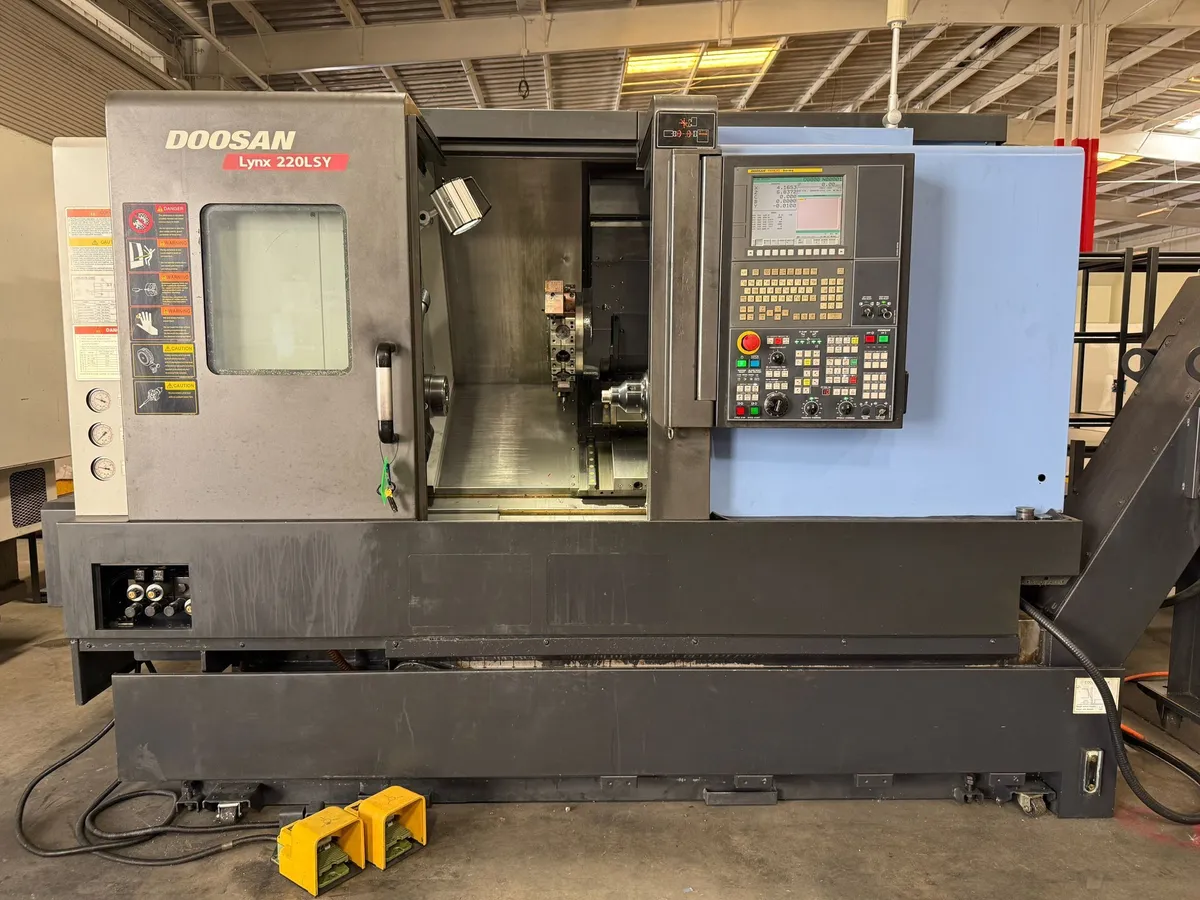

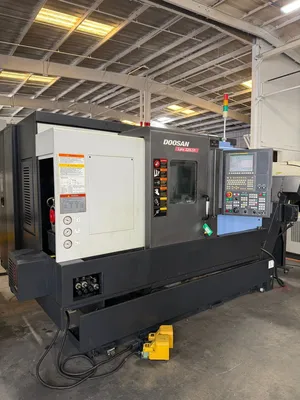

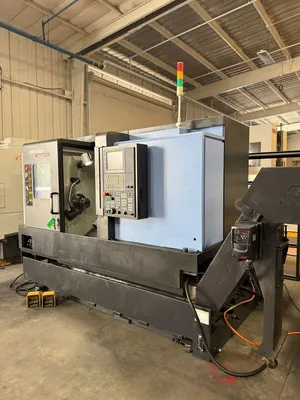

2015 DOOSAN LYNX 220LSYC CNC TURNING CENTER | Stock #4409

Features:

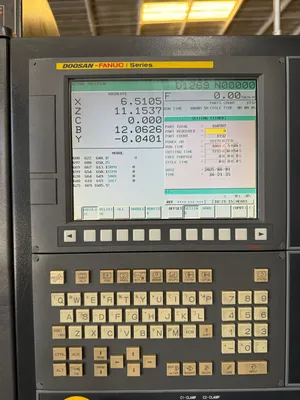

Doosan-Fanuc i Series CNC Control
7,215 Hours Cutting Time
PCMCIA Card Slot

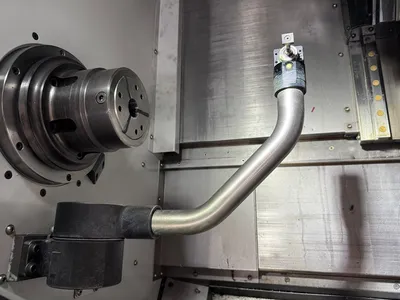

Coolant System

Capacity:
Max Turning Diameter : 11.8″
Max Swing Over Bed : 23.6″
Max Swing Over Saddle : 15.7″
Max Turning Length: 20.1″
Max Bar Capacity : 2.6″

Travels:
X Axis Travel : 8.1″
Y Axis Travel : 4.13″
Z Axis Travel : 22.0″
B Axis Travel (Sub Spindle) : 22.0″
C Axis (Both Spindles) : 0.001 Degree
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Rapid Traverse Z Axis: 1417 IPM

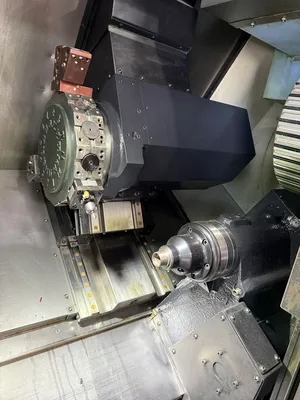

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.0″
Spindle Speed: 4500 RPM
Spindle Motor: 20 HP

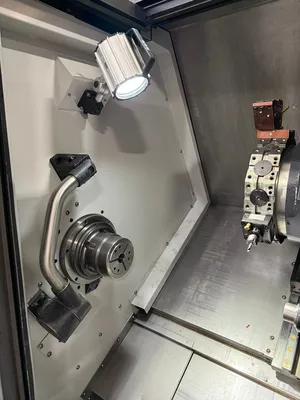

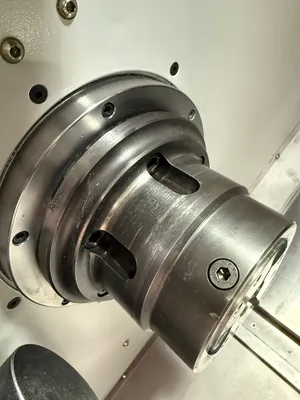

Sub Spindle:
Spindle Nose: FLAT
Spindle Bore: 1.7″
Spindle Speed: 6000 RPM
Spindle Motor: 7.5 HP

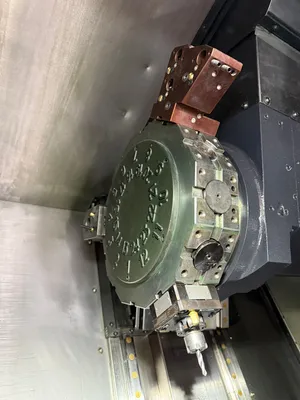

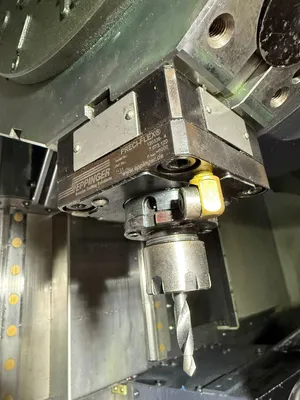

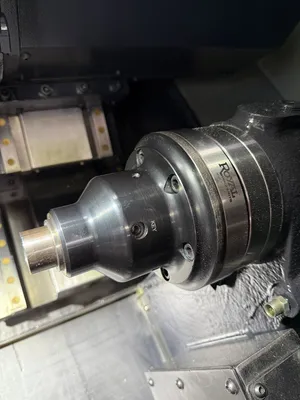

Turret:
Turret Capacity: 12 Stations (24 Positions)
Turret Index Time: 0.11 Second
Turret Type: BMT-45

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 33.66 kva
Machine Dimensions: 113.4″ x 67.3″ x 75.6″ High
Machine Weight: 9,260 lbs Approx.

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
