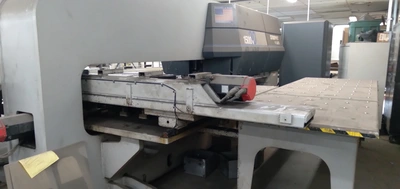

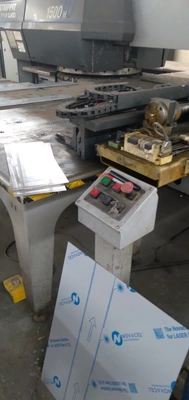

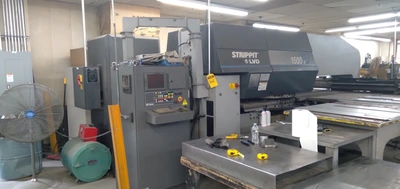

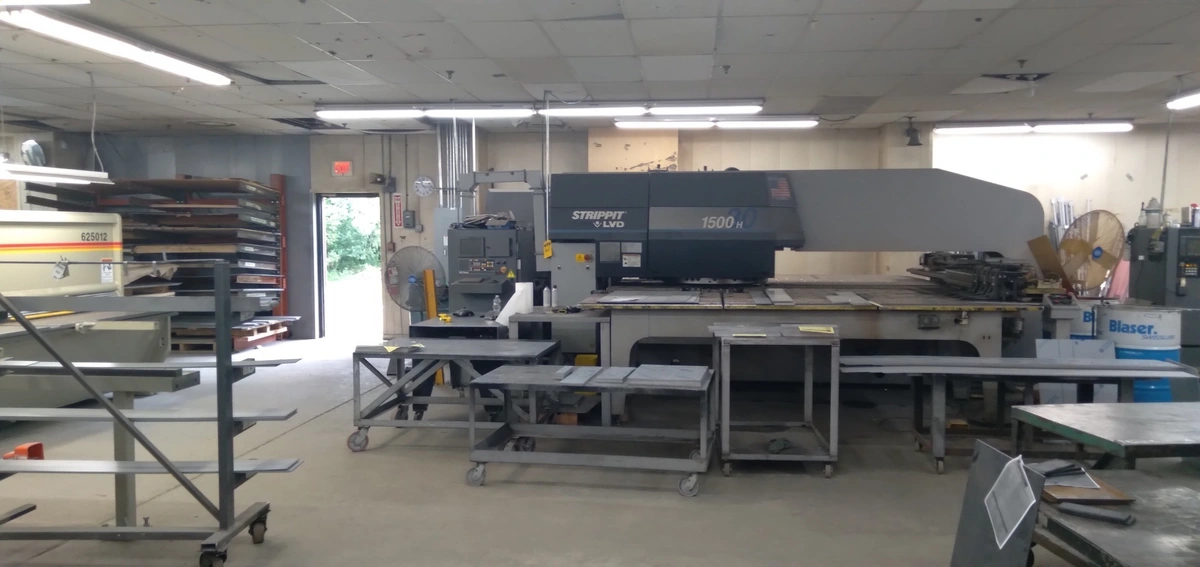

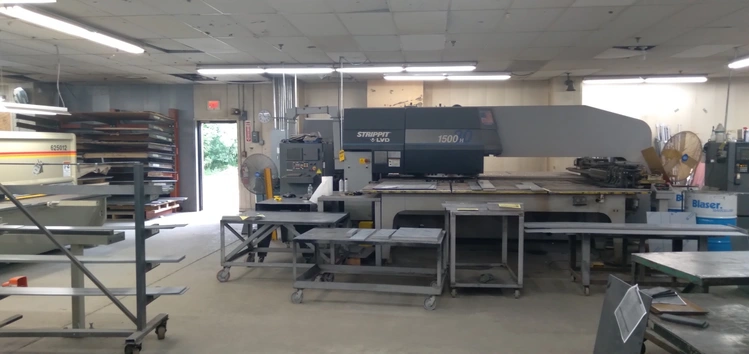

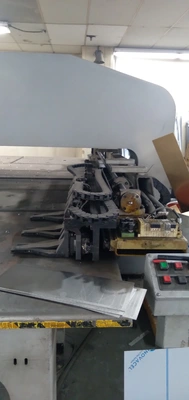

LVD Strippit 1500 H30 – High-Performance CNC Turret Punch Press
The LVD Strippit 1500 H30 is a versatile and reliable CNC turret punch press designed for precision sheet metal fabrication. With a powerful 30-ton punching capacity and a generous 1500 mm (59 inches) throat depth, this machine is ideal for producing complex and detailed parts with exceptional accuracy and efficiency.
Length overall - 188.5 inches
Height overall - 96 inches
Width, doors closed - 187 inches
Maximum travel X Axis - 100.43 inches
Maximum travel Y Axis - 63.75 inches
Tonnage - 33 imperial tons
Maximum Stock Size
Normal . 60 inches x 99 inches
W/Progr. Move. 60 inches x 144 inches
Maximum Stock Thickness 312 inch
Feed Clearance 866 inch
Turret Drive Bi-directional .42 Stations (long tool)
40 Stations (short tool)
One Station Index Time 1.0 sec.
Hole Punching Capacity
4.5 inches dia. in 13 Gauge mild steel (long tool)
3.5 inches dia. in 10 Gauge mild steel
1.625 inches dia. in .250 inch mild steel
Accuracy.... .004 inch
Hydraulic Press Drive H/30 30 HP
