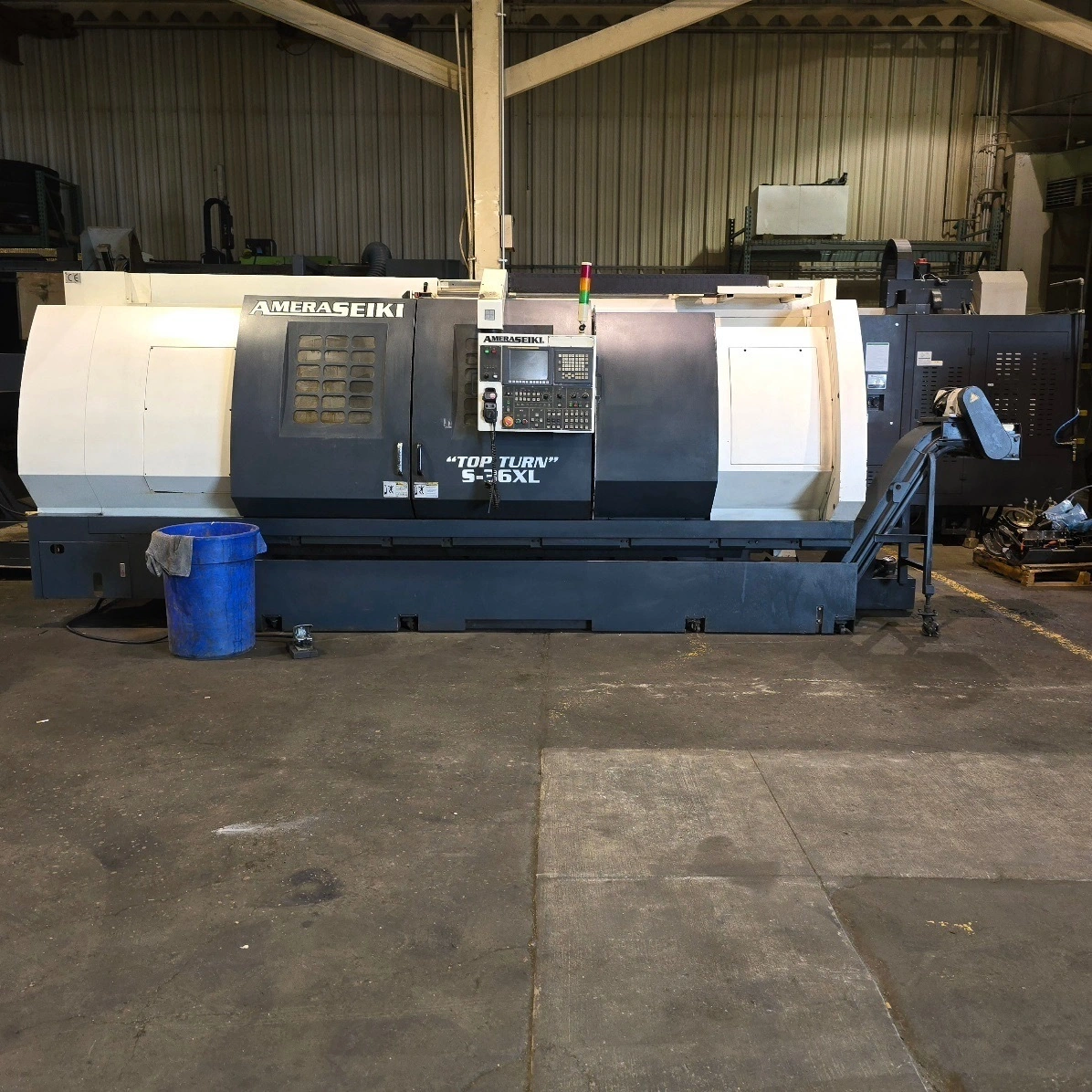

2015 Amera- Seiki S-36L "Top-Turn" CNC Lathe | Stock #4395
Have one to sell?
$99,500.00 USD
ConditionUsed
1 available
Unlock Precision and Power with the 2015 Amera-Seiki S-36L "Top-Turn" CNC Lathe
Looking to expand your shop’s capabilities without breaking the bank? The Amera-Seiki S-36L "Top-Turn" CNC Lathe delivers the performance, rigidity, and reliability you need — at a fraction of the cost of new equipment.
Built for heavy-duty turning and tight-tolerance machining, this 2015 model is engineered for long-term durability and consistent accuracy. Whether you're running production or tackling complex parts, the S-36L offers a perfect balance of power and precision.
Swing Over bed: 30.7"
Max Turning Dia: 19.6"
Max Turning Length: 86.6"
Distance Between Centers: 88.5"
Spindle Speed: 1200 RPM
Main Spindle Motor: 35HP
Spindle Nose: A2-11
Spindle Bore: 6"
Bar capacity: 5.9"

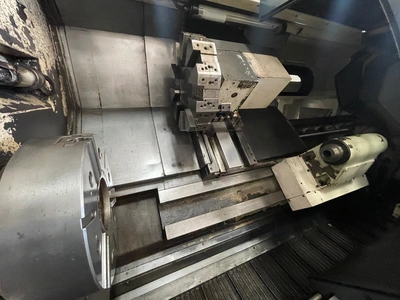

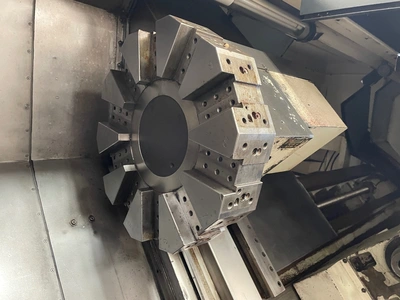

Turret: 12 position
Travels:
X - Travel: 12"
X- Axis rapid traverse: 945 ipm
Z - Travel: 92.5"
Z-axis rapid traverse: 472.4 ipm
Hydraulic System: 15.9gallons
Coolant system: 89.8gallons
Coolant Pressure: 44

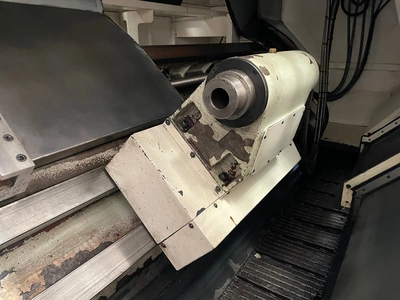

Tailstock:
Quill Diameter: 4.3"
Quill Travel: 3.9"
Quill Taper: MT#5

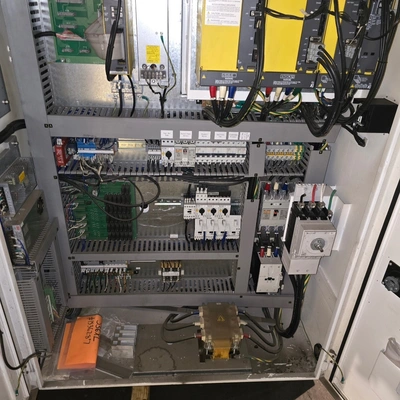

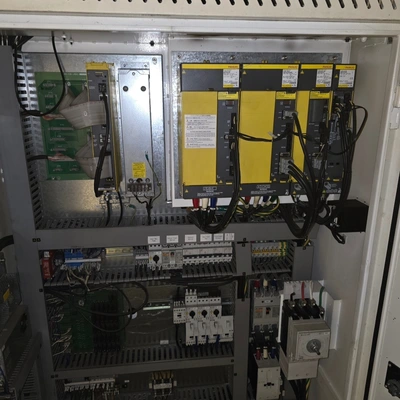

Fanuc Oi-TD Control
18" Auto Strong 3 Jaw chuck
Remote Hand wheel/Manual pulse generator
