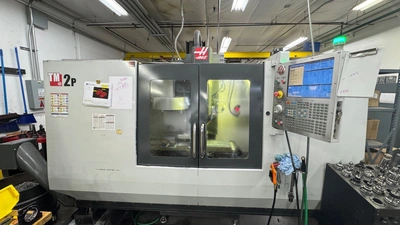

| X | 40" | 1,016 mm |
| Y | 16" | 406.4 mm |
| Z | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 57.75" | 1,466.8 mm |
| # Axis | 3 | 3 |

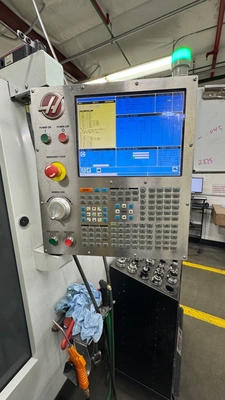

| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 93 in x 80 in x 100 in | 93 in x 80 in x 100 in |
| Weight | 5000 lb | 5000 lb |
X-Axis Travel 40"
Y-Axis Travel 16"
Z-Axis Travel 16"
Distance Spindle Nose to Table Top 4" - 20"
Spindle Taper CAT 40
Spindle Speeds 0 - 6,000 rpm
Spindle Motor 7.5 HP
Tool Magazine Capacity 10 Position Umbrella Style ATC
Chip Auger
Probing
