Bar Capacity: 2.6"

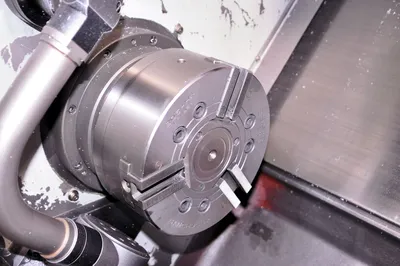

Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
X Axis Travel: 7.09"
Z Axis Travel: 22.05"
Rapid Rate Z Axis: 945 IPM

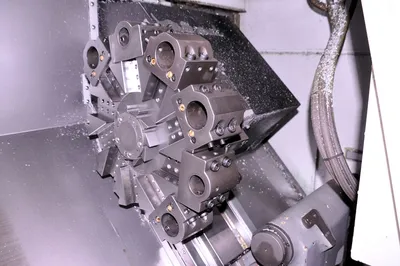

Turret Tools: 10 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11.8"
Max Turning Length: 20.47"
Max Swing: 17.72"
Weight: 8,600 LBS

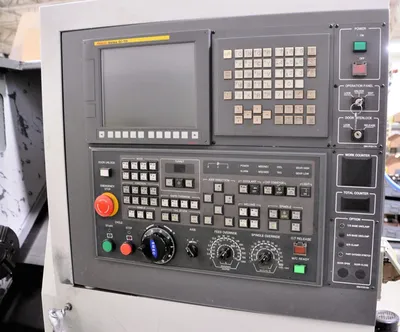

Fanuc 0i-TD

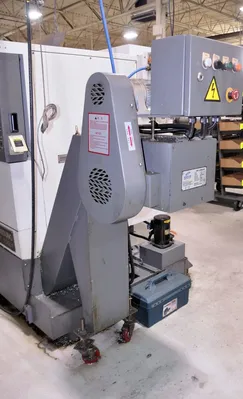

Chip Conveyor
Tool Presetter

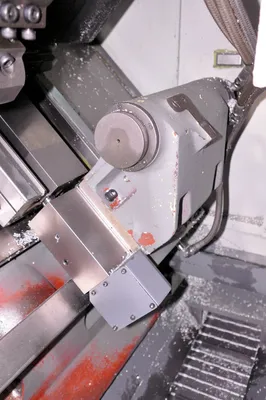

Tailstock
Parts Catcher
