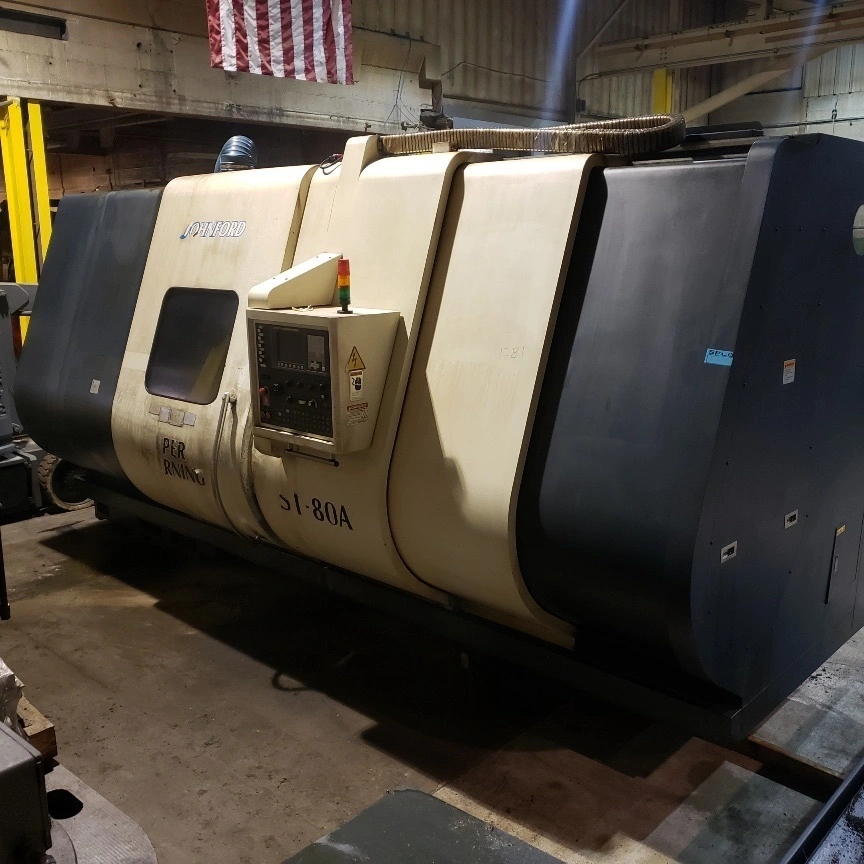

2005 Johnford ST-80 CNC Lathe | Stock #4373
Have one to sell?
$57,500.00 USD
ConditionUsed
1 available

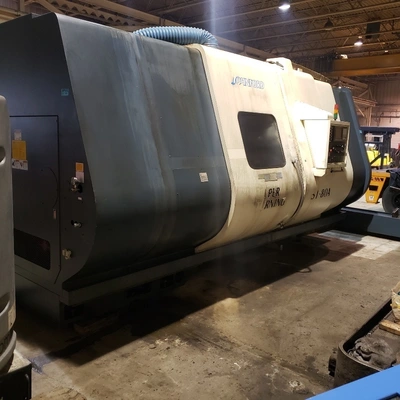

FOR SALE: 2005 Johnford ST-80 CNC Lathe – Heavy-Duty Turning Power
Step up to serious machining capability with this 2005 Johnford ST-80 CNC Lathe — a powerhouse built for large-diameter, heavy-duty turning. Known for its rugged construction and reliable performance, the ST-80 is ideal for oilfield, energy, and large industrial applications where size and strength matter.
Standard turning diameter 27.5"
Swing over carriage 27.5"
Maximum cross travel (X axis) 15.7"
Maximum longitudinal travel (Z axis) 78.7"
Distance between centers 88.5”
Spindle:
Spindle Motor 35 HP
Spindle nose A2-11
Spindle RPM 0-3000 (12” Chuck)
Hole through spindle 4.5"
Bar Capacity 4.1”
Spindle bearing diameter 6.3"
Spindle inside taper M.T. 7

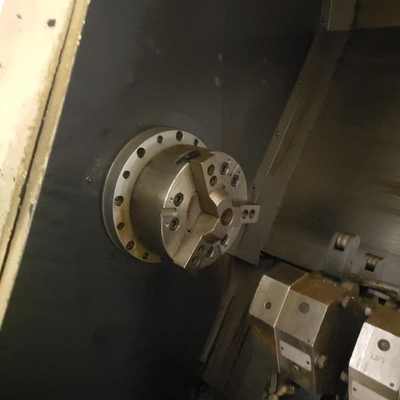

Hydraulic chuck 12” 3-Jaw

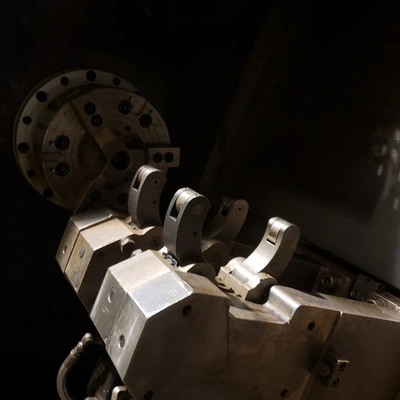

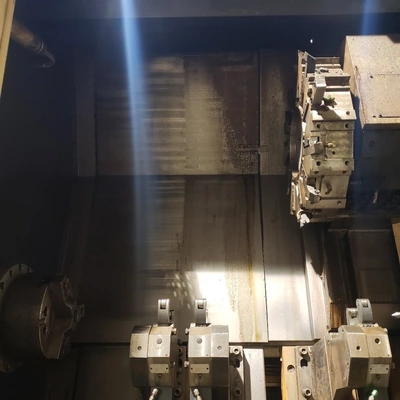

Turret:
Turret tool positions 12

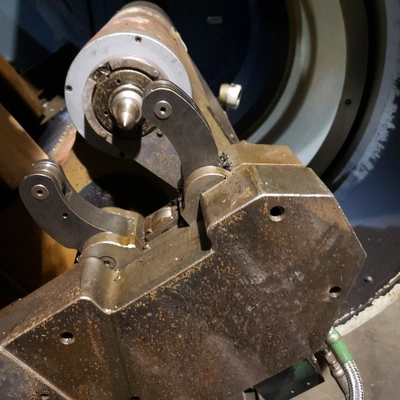

Tailstock:
Quill diameter of tailstock 7.87"
Quill stroke of tailstock 5.9"
Quill taper of tailstock M.T. 7
Tailstock body travel 66.9”
12" Hydraulic chuck

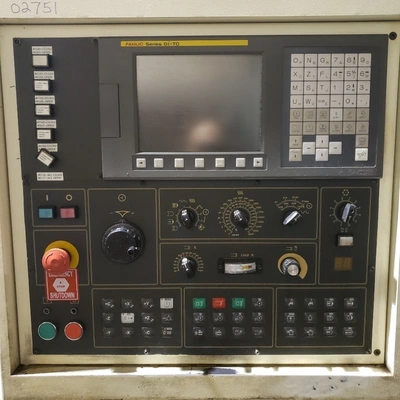

Fanuc Oit control
