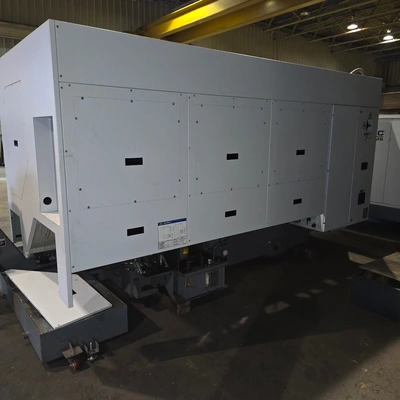

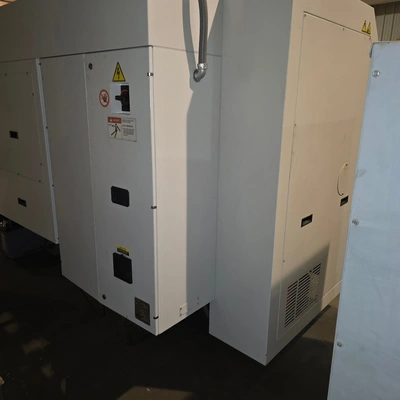

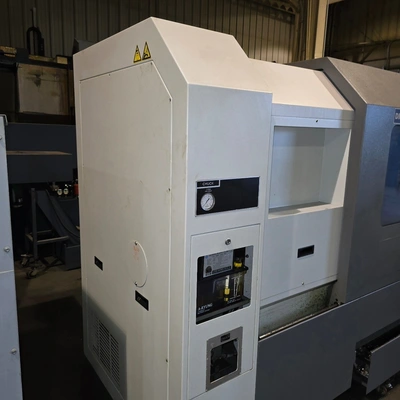

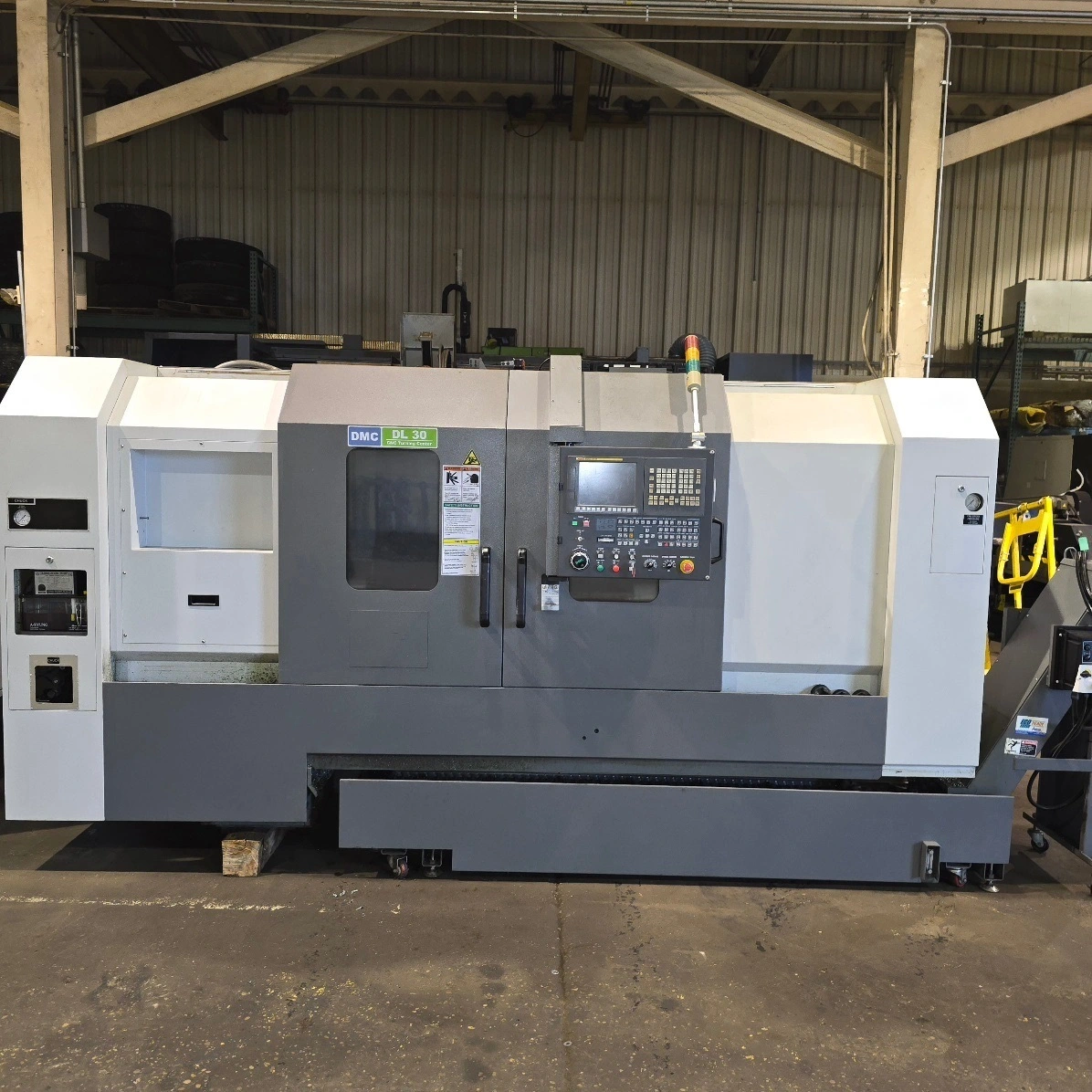

2016 DMC DL 30 CNC Lathe | Stock #4372
Have one to sell?
$52,500.00 USD
ConditionUsed
1 available

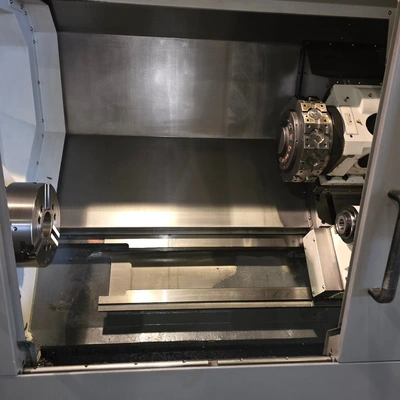

Unlock the power of precision with this 2016 DMC DL 30 CNC Lathe, a proven performer in the world of high-accuracy machining. Designed for heavy-duty turning applications, the DL 30 delivers a perfect balance of speed, rigidity, and control—ideal for shops looking to expand capacity without compromising on quality.
Capacity:
Maximum Swing: 24.02"
Maximum cutting diameter: 15.75"
Maximum cutting length: 42.52"

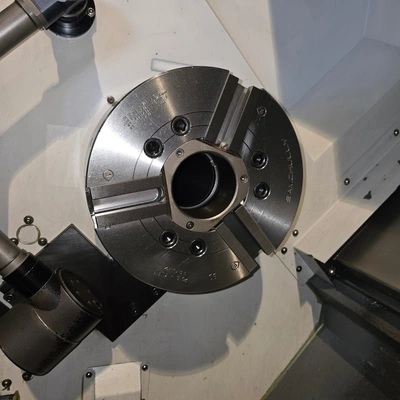

Chuck Size: 10"
Spindle:
Spindle nose: A2-8
Bore Diameter: 4.13"
Main Spindle motor: 30/25 HP
Spindle Speed: 3000 RPM with 12" chuck
Maximum Spindle Torque: 462.91 ft-lbs
Slide and Carriage:
X axis travel: 9.06"
Z axis travel: 44.49"
Rapid Traverse X: 787 ipm
Rapid Traverse Z: 945 ipm
Guide Ways: Box Ways
Bed Structure: 45 degree slant

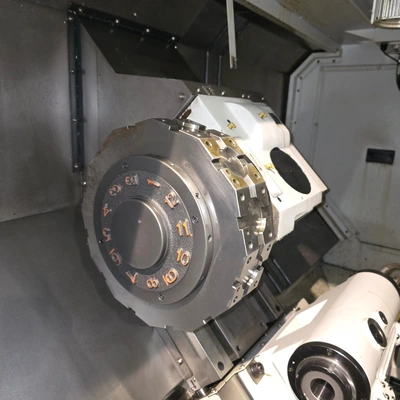

Turret:
Number of tool Stations: 12 tools
Turret Indexing Speed: .2 seconds
Indexing Type: Non-Stop, Bi-Directional
Tool Size (turning/facing): 1"-wedge clamp
Tool Size (boring bar max): 1.75"

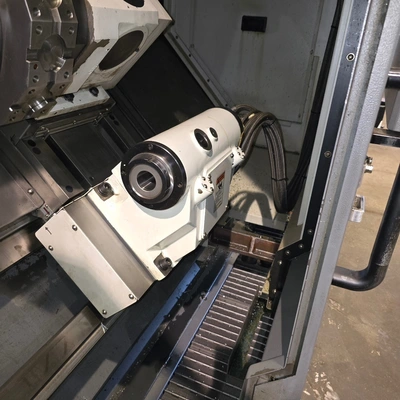

Tailstock:
Tailstock Center: MT#5
Quill Diameter: 4.33"
Quill Travel (hydraulic): 3.94"
Max thrust of Quill: 2,222lbs
Machine Size:
Floor Space Requirements: 161.42" x 74.21"
Machine weight: 15,652 lbs
Power Consumption: 34 Kva
Voltage: 220 Volt +/- 10%, 60 HX, 3 phase

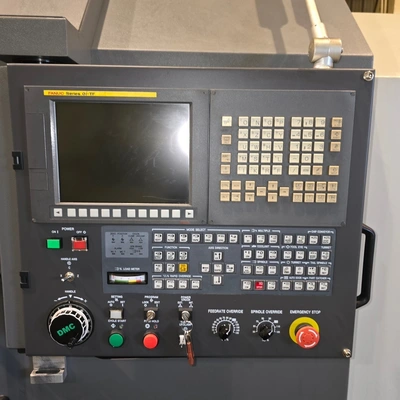

Fanuc Oi-TD Control
10.4" TFT LCD screen
Flash memory card interface
RS 232C interface
Program protection on machine control panel
640M parts programming storage
Tool Life management
Linear and circular interpolation
Variable lead thread cutting

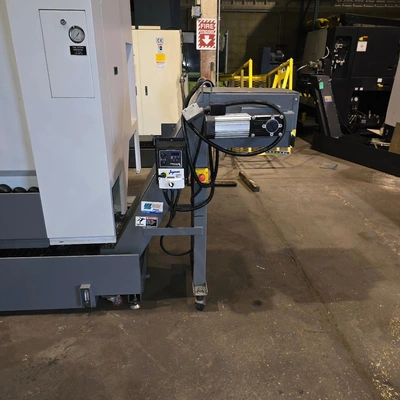

Jorgensen chip conveyor
