AMADA EMK-3610NT SERVO DRIVE (ELECTRIC) CNC TURRET PUNCH | Stock #4364
Have one to sell?
$229,500.00 USD
ConditionUsed
1 available

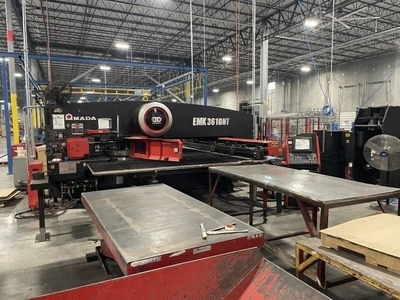

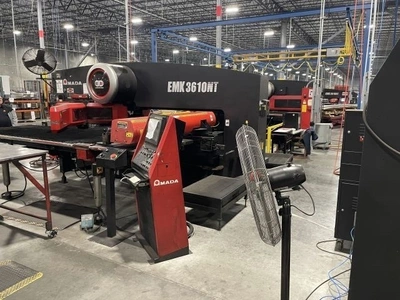

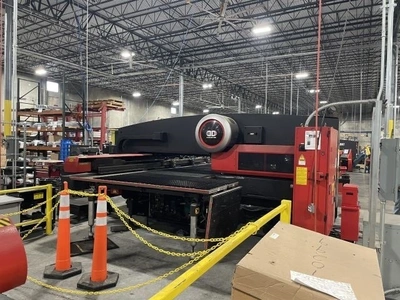

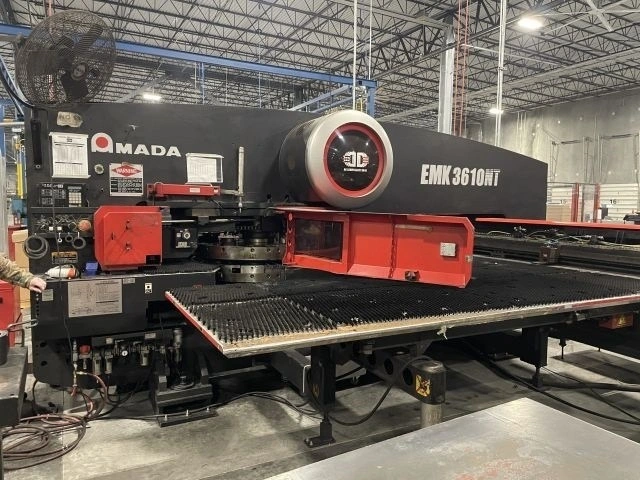

2007 AMADA EMK-3610NT Turret Punch, 33-ton capacity, 58 turret stations. Ideal for precision sheet metal processing. Excellent for boosting production efficiency in a cost-effective manner. Used condition, ready for your shop floor.
CAPACITY................................ 33 TONS
MAX SHEET SIZE.......................... 120" X 60"
THROAT DEPTH............................ 50"
TRAVELS (X-AXIS......................... 120"
TRAVELS (Y-AXIS......................... 60"
STROKE.................................. 1.45"
MAX SHEET THICKNESS..................... 187"
TURRET STATIONS......................... 58 W/ (4) A/I
TURRET TOOLING STYLE.................... THICK
TURRET ROTATION SPEED................... 30 RPM
FEED CLEARANCE.......................... .984"

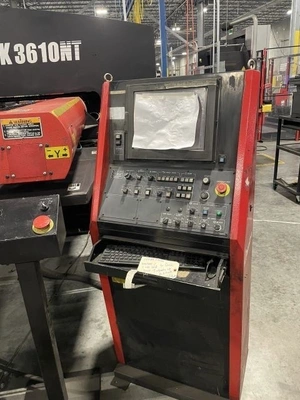

NT CONTROL
58 STATION TURRET W/ (4) AI
(3) WORK CLAMPS
BRUSH TABLE
SLUG CONVEYOR
